Kohler KD62V12

Service and Repair Manual Repair
Cylinder head (SL 224)
u Mount cylinder head gasket 4 on liner.
u Mount flame ring 5 in liner.

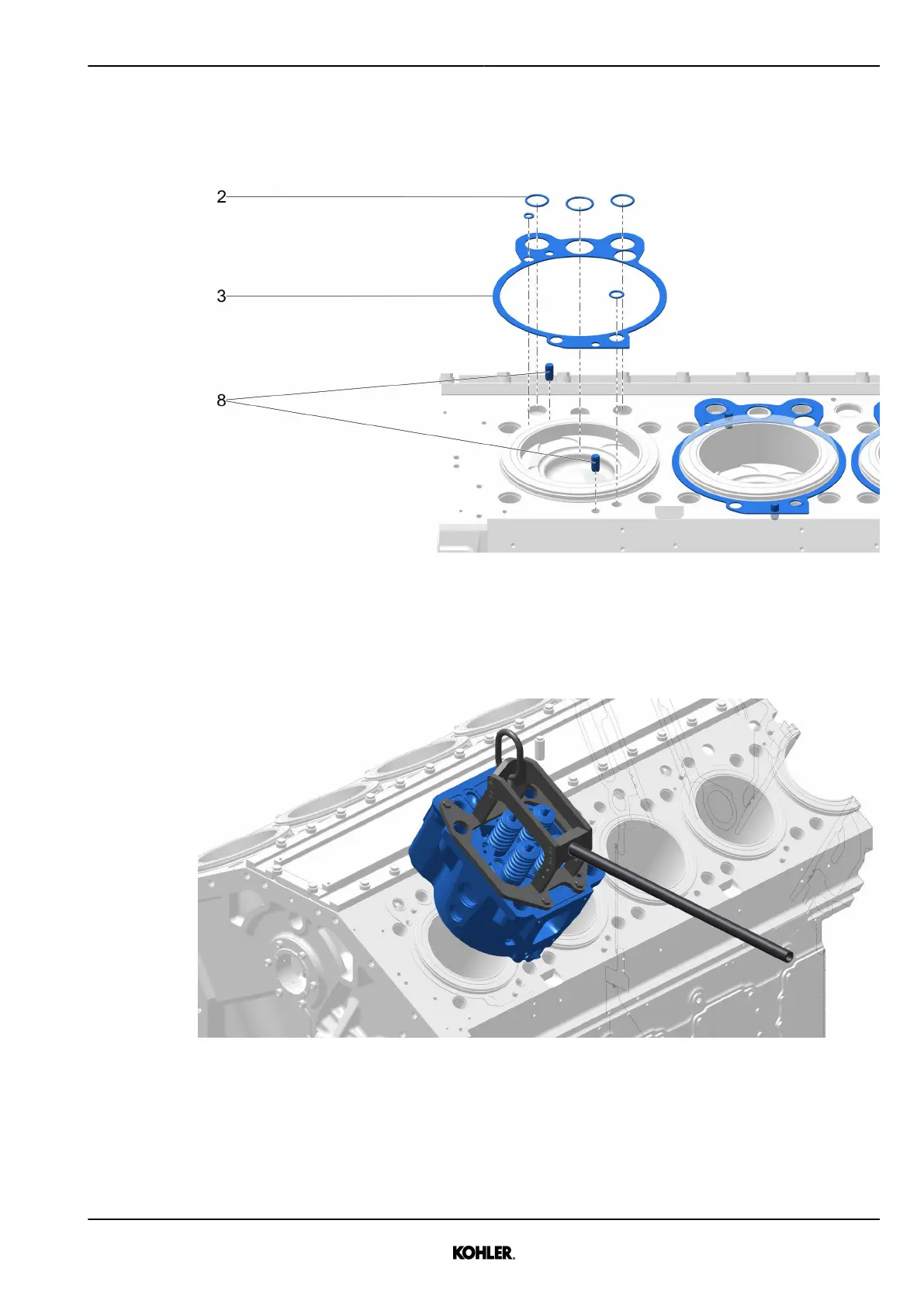

Fig. 97: Installing sealing carrier and O-rings
u Mount locating pins 8.
u Mount seal carrier 3 with O-rings 2.
u Grease O-rings 2.
Fig. 98: Installing cylinder head
u Mount lifting device on cylinder head.
u Mount cylinder head.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
93
