- 52 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
6
53
51
52
53

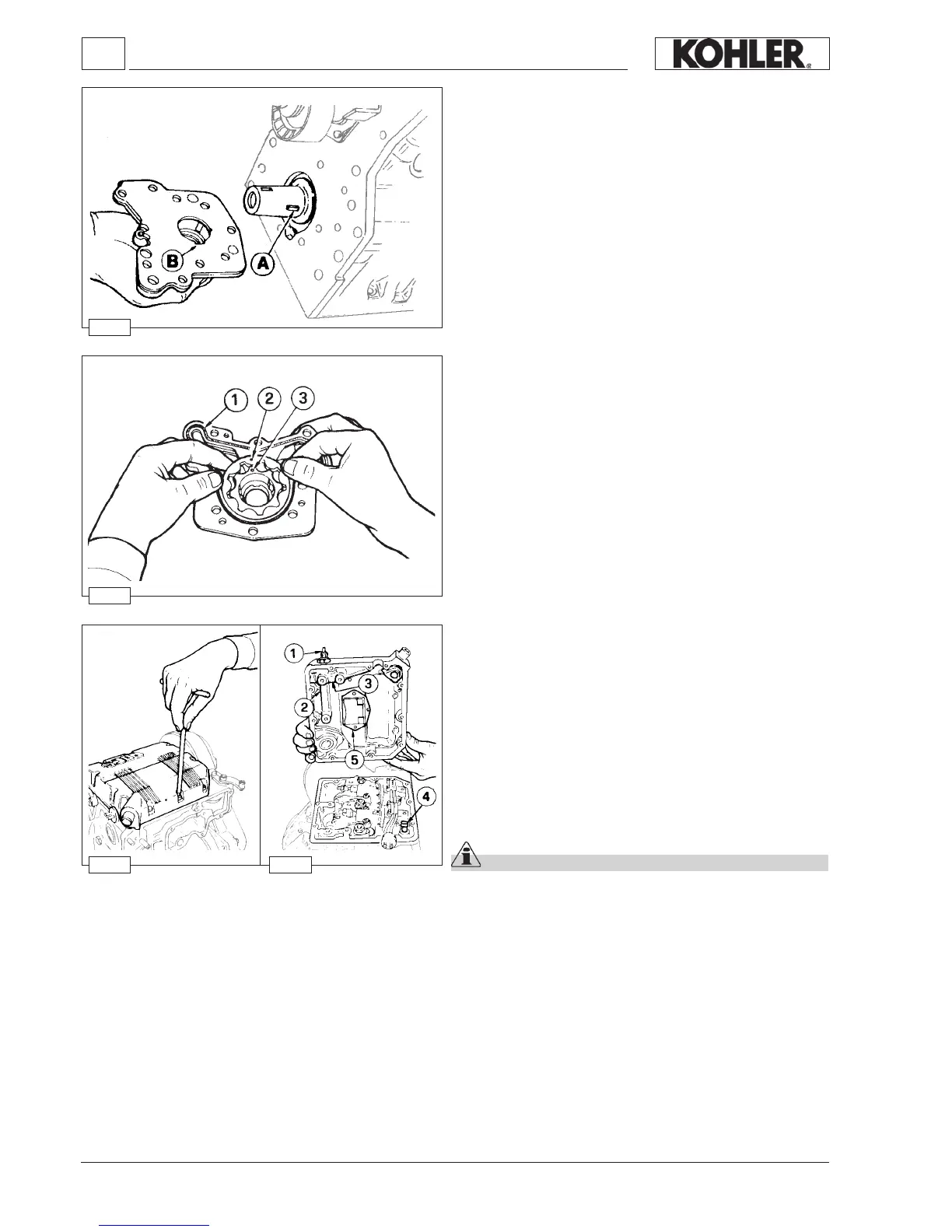

Oil pump - Reassembly
The pump rotors should be coupled on the same side, see
references 2 and 3.
Replace the O-ring 1.
Tighten the fastening screws to the crankcase at 25 Nm and
those of the plate at 10 Nm.
See page 79 for technical details.
Oil pump
Oil pump - disassembly
KOHLER therefore recommends that the oil pump be handled
as an assembly from a service standpoint
KOHLER does not recommend that the oil pump be
disassembled, then reassembled for purposes of installation on
the engine except during emergency situations.
Rotate the crankshaft until the crankshaft timing pulley keyway
is vertical as shown. Remove the oil pump assembly retaining
bolts. When the crankshaft timing pulley keyway is vertical, the
oil pump drive keyway A will be at 3:00 o’clock allowing removal
of the oil pump assembly via relief B.
Rocker arm cover
The engine control components are all on the cylinder head.
The cover contains part of the lubrication duct of the camshaft
and of the rocker arms, as well as part of the engine vent
system.
Components:
1
Oil preassure switch
2 Camshaft lubrication port
3 Rocker arm lubrication port
4 Oil exhaust hose from sump vent system
5 Air valve with oil decanting wire gauze
Important
During remounting be careful with oil exhaust hose 4
that needs to be properly inserted into its housing on the
cylinder head.
Disassembly / Reassembly
