- 74 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
6
144
143

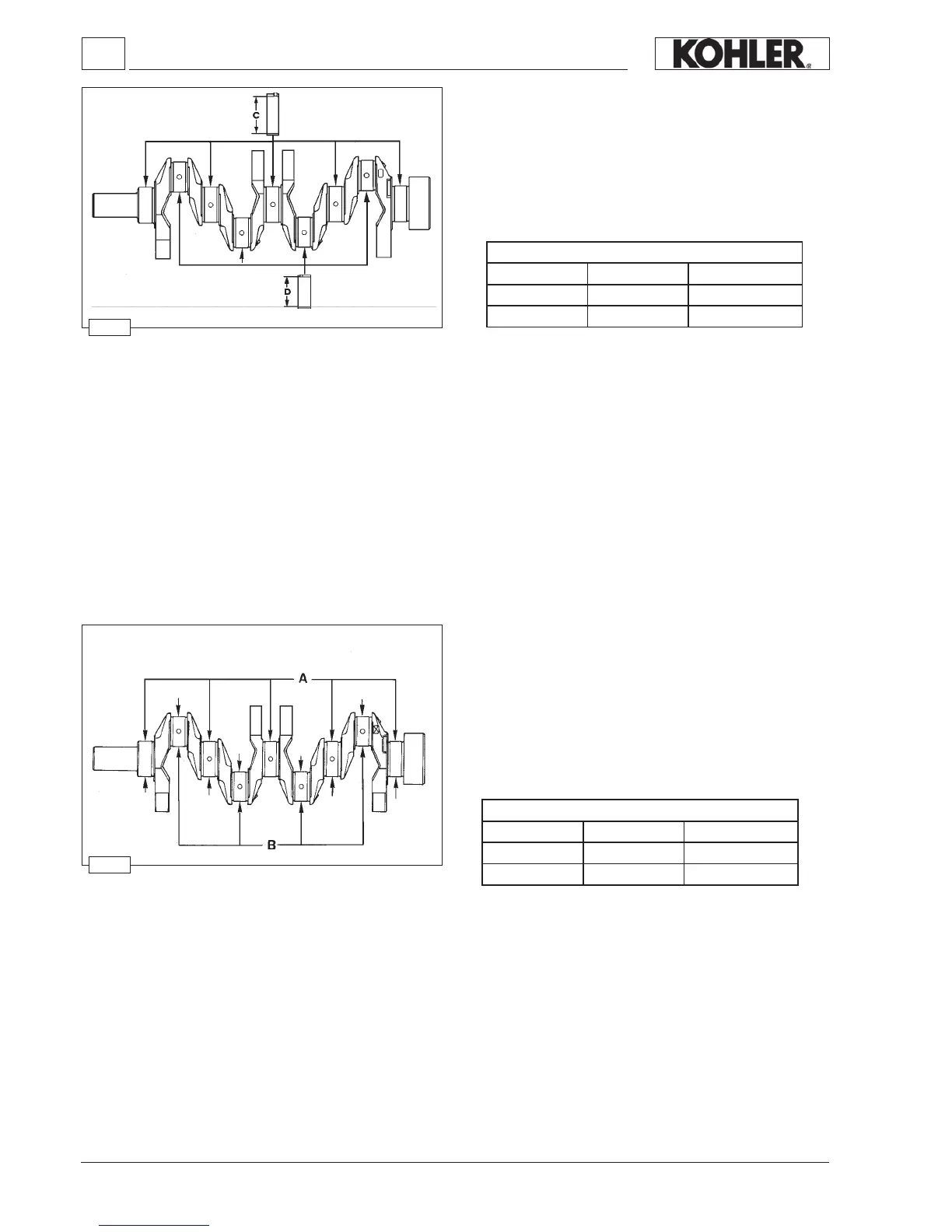

Clearances between the bearings and corresponding pins
See gures. 143 ÷ 144.
Dimensions (mm):
Nota: Both for crankshaft bearings and for connecting rod big
end bearings internal diameter are undersized by 0.25
and 0.50 mm.
Main bearings and connecting rod big ends diameters
Dimensions (mm):
The dimensions given refer to tightened bearings.
For tightening torque see gures 116 e 126.
Disassembly / Reassembly
Ref.
Tolerance
Limit value
Ref.
Tolerance
Limit value
KDW 702-1003-1404
C (mm) 51,023÷51,059 51,098
D (mm) 40,021÷40,050 40,100
KDW 702-1003-1404
C-A (mm) 0,023÷0,078 0,200
D-B (mm) 0,021÷0,066 0,130
