Kohler KDW 702 User Manual

- 76 -
KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_ rev. 00
7
149
147
148

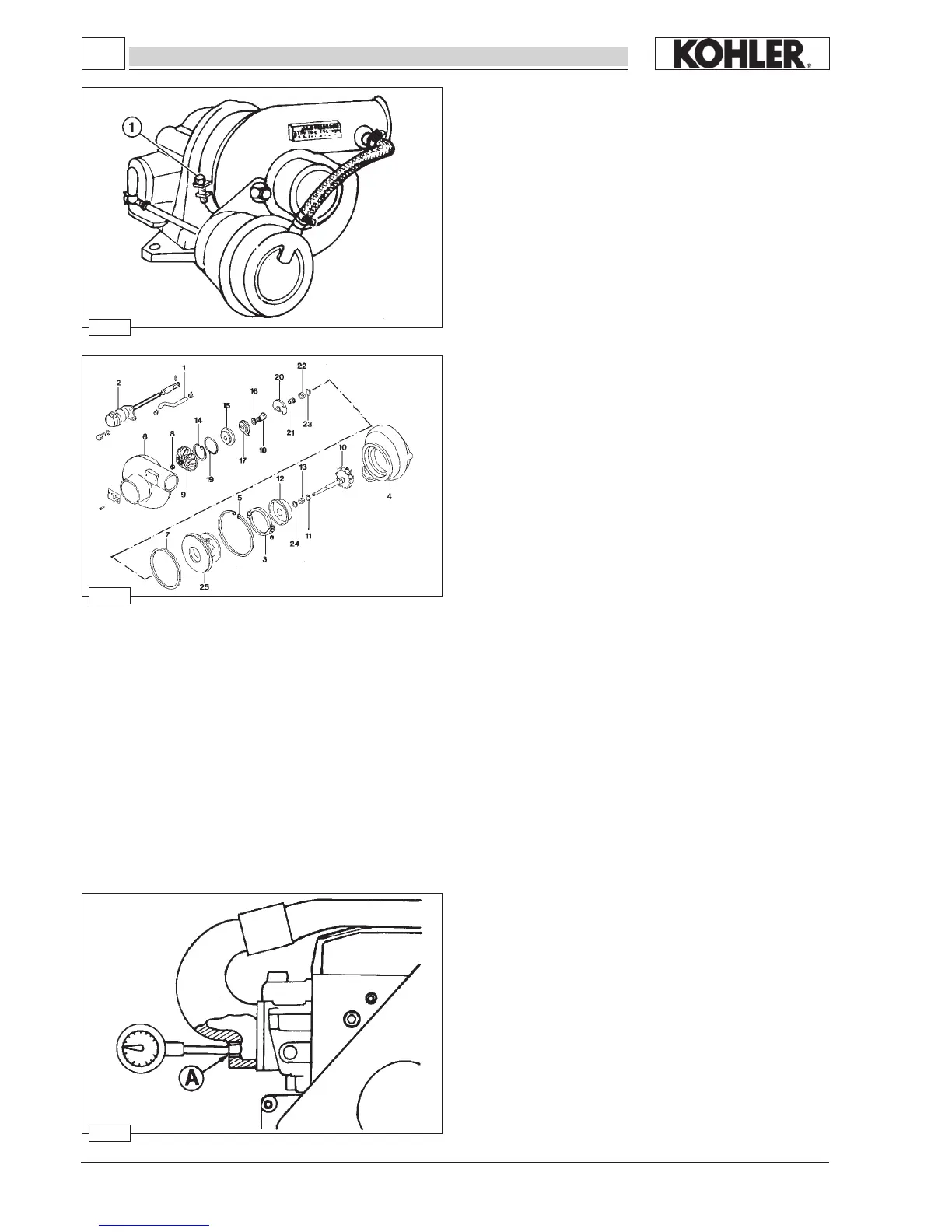

TURBO CHARGER
TURBOCHARGER
Turbocharger pressure testing
Install a 0-2bar pressure gauge at position A after removing the
existing plug.
Start the engine and operate at low idle for ve minutes to allow
warm-up.
Increase the engine speed to 3000 r/min or 3600 r/min
(depending on engine specication while applying full Nb load to
the engine).
 See page 10 for the power output curve.
The gauge pressure, at full speed, full load, should be 0.87-0.91
bar (655÷685 mm Hg).
If the pressure setting does not reach specication, adjust the
turbocharger waste gate 8 as is dened on page 48.
Turbocharger components
1 Waste gate tube
2 Attuatore
3 Collare
4 Corpo turbina
5 Anello seeger
6 Chiocciola compressore
7 Spessore
8 Dado
9 Controdado
10 Albero con turbina
11 Segmento
12 Paraamma
13 Cuscinetto
14 Seeger
15 Spessore
16 Segmento
17 Deettore olio
18 Manicotto reggispinta
19 O-ring
20 Cuscinetto reggispinta
21 Anello reggispinta
22 Cuscinetto
23 Anello seeger
24 Anello seeger
25 Supporto cuscinetti
