Electrical System
22 690 01 Rev. -- KohlerEngines.com

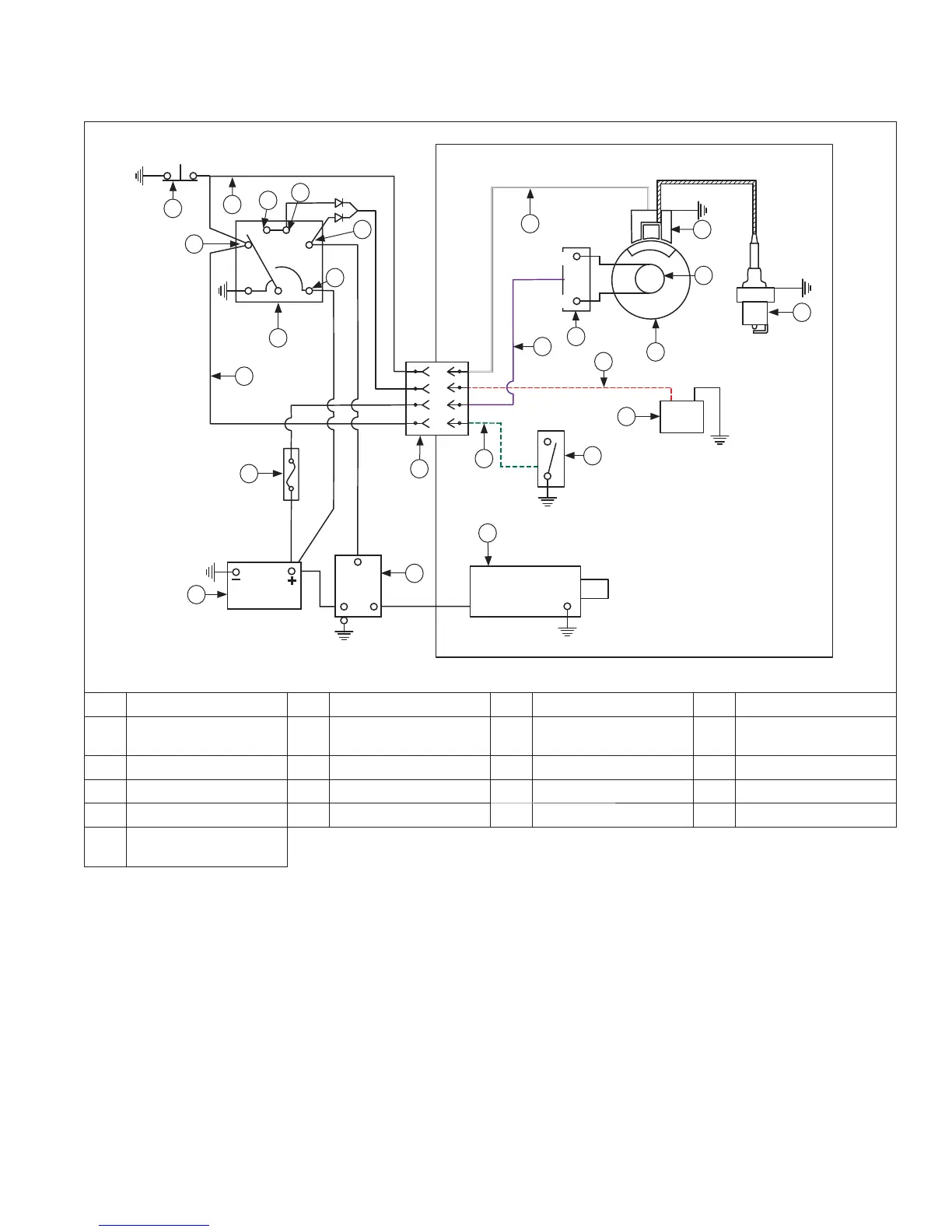

Wiring Diagram-12/15 Amp Regulated Battery Charging System
_
+
H
G
D
Q
R
J
M
O
K
P
E
C
S
N
T
A
F
I
J
S
O
P
AC
AC
B+
L
U
B
A Red B Green C Violet D White
E Spark Plug F
Optional Fuel Shut-off
Solenoid
G
Optional Oil Sentry
™
Switch (Indicator)
H Bendix Starter
I Engine Connector J Starter Solenoid K Ground-To-Kill Lead L Key Switch
M Optional Oil Sentry
™
N Optional Fuse O Battery P Rectifi er-Regulator
Q Flywheel R Stator S Ignition Module T Accessory
U
Equipment Safety
Circuit
