Reassembly
22 690 01 Rev. -- KohlerEngines.com

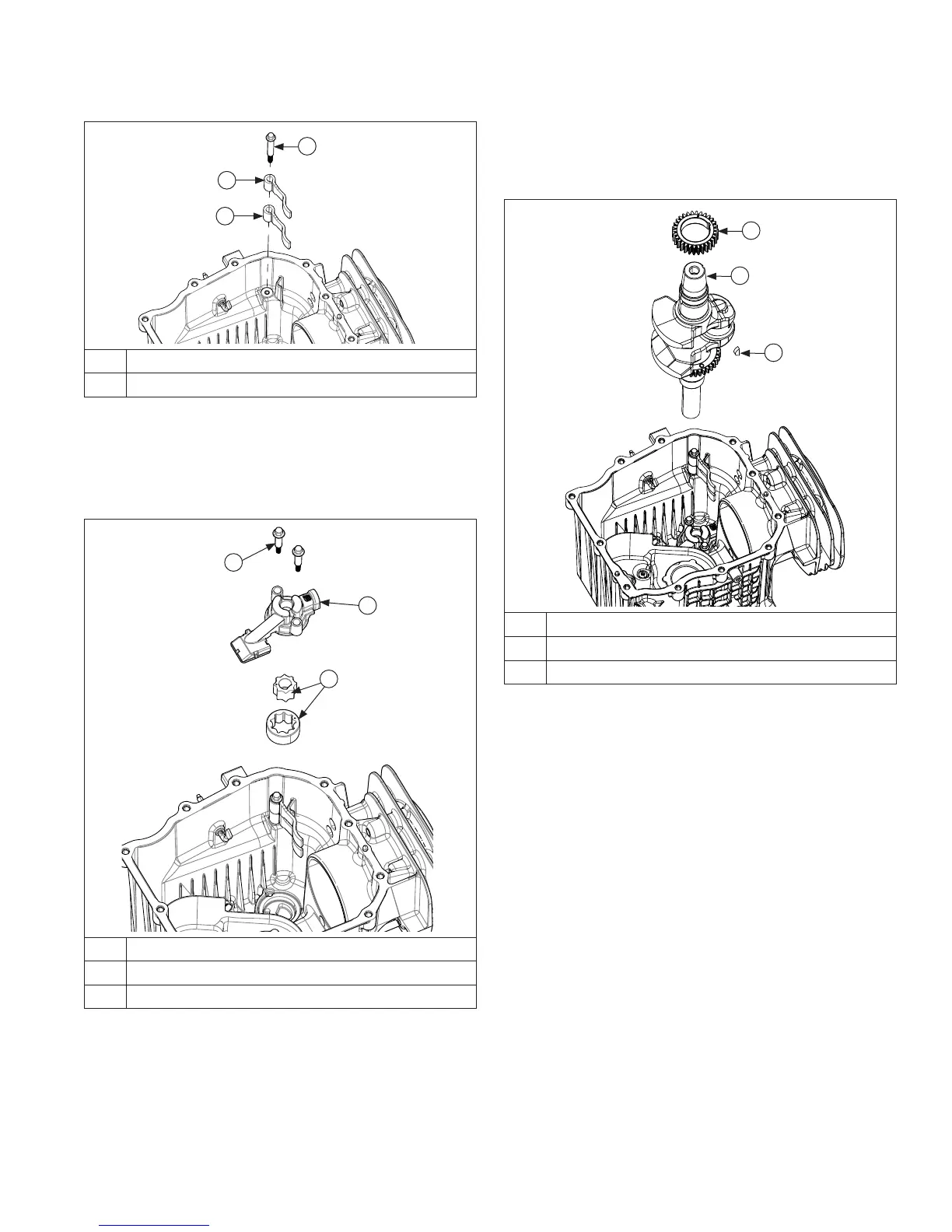

Install Cam Levers
B
A
B
A Cam Lever Screw
B Cam Levers
NOTE: Do not reinstall a cam lever screw that has been
removed. Discard removed screw and install
new screw with Loctite
®
Dri-Loc
®
patch.
Install cam levers on screw and secure to crankcase.
Torque screw to 12.5 N·m (110 in. lb.).
Install Oil Pump and Oil Pump Housing Assembly
C
A
B
A Oil Pump Housing Assembly
B Oil Pump Assembly
C Oil Pump Housing Screws
1. Lightly grease gerotor gears and set them into
crankcase.
2. Install oil pump housing and secure to crankcase
with screws; torque screws to 4.8 N·m (42 in. lb.).
3. Install camshaft into oil pump housing; turn to drop
into place. Turn camshaft to align timing mark to
center of crankshaft PTO bore.
4. Lift camshaft out.
Install Crankshaft and Crankshaft Gear
B
A
C
A Crankshaft Gear
B Crankshaft
C Key
1. Carefully install crank gear key in keyway and slide
crankshaft gear on crankshaft.
2. Carefully install crankshaft into crankcase, through
PTO seal, and seat fully into place.
