9
Specifi cations
22 690 01 Rev. -- KohlerEngines.com

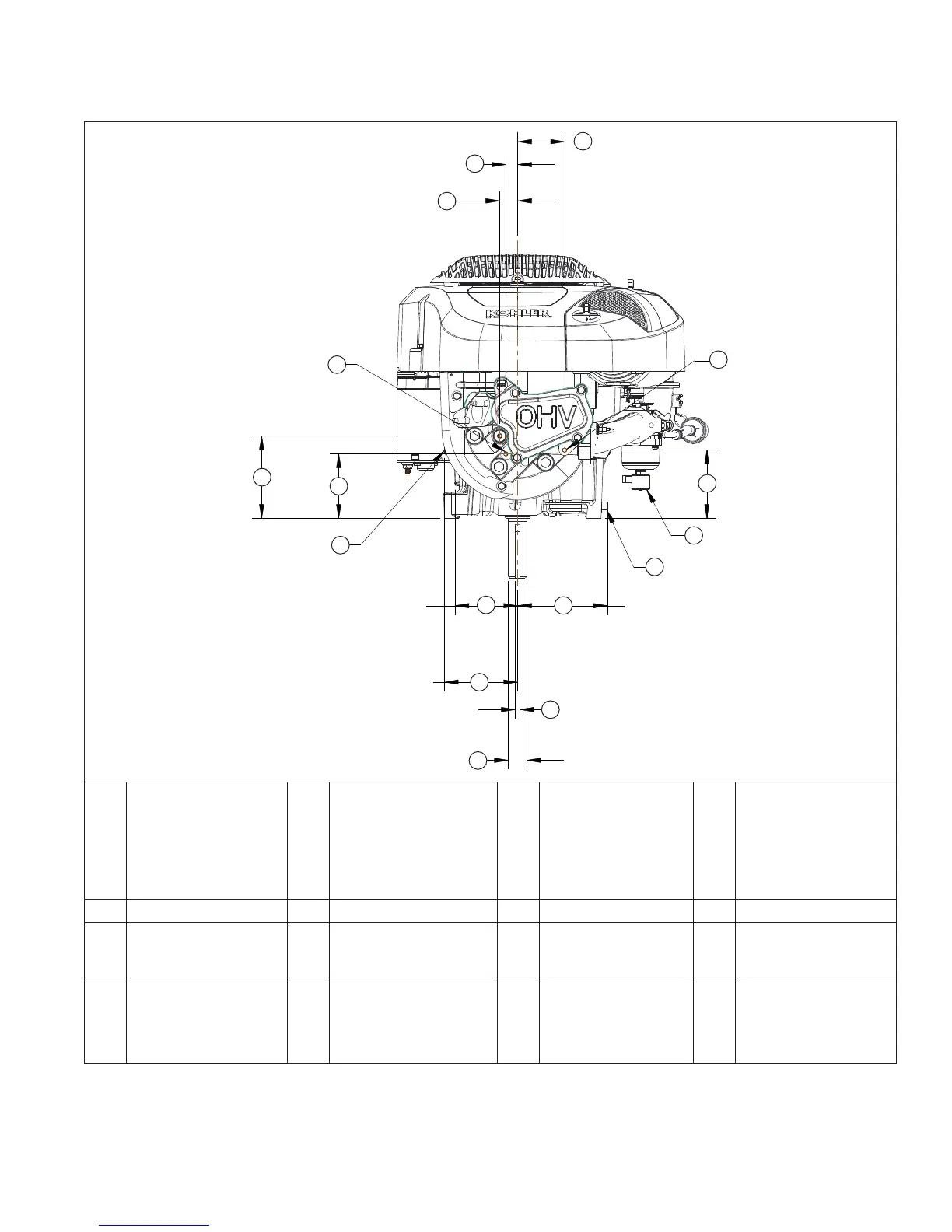

Engine Dimensions-Valve Cover Side
F
E
G
H
I
K
A
B
D
C
J
L
M
N
O
P
A 64.2 mm (2.53 in.) B 16.0 mm (0.63 in.) C
24.3 mm (0.96 in.)
to Spark Plug
D
Cored for M6 Self
Tapping Screw
16.5 mm (0.65
in.) Min. Depth
(Accessory
Mounting
Location)
E 93.2 mm (3.67 in.) F Carburetor G Oil Drain Plug H 122.7 mm (4.83 in.)
I
6.32-6.36 mm
(0.249-0.250 in.)
Keyway Width
J
Ø 25.37-25.40 mm
(0.999-1.0 in.)
K 100.0 mm (3.94 in.) L
85.5 mm (3.37 in.)
Ground Lug
Mounting Boss
M
2 X Accessory
Mounting
Surface
N
112.6 mm (4.43 in.) to
Spark Plug
O 88.0 mm (3.47 in.) P
Cored for M6 Self
Tapping Screw
Thru (Accessory
Mounting
Location)
