Kohler KS595 Service Manual

45
Electrical System
22 690 01 Rev. -- KohlerEngines.com

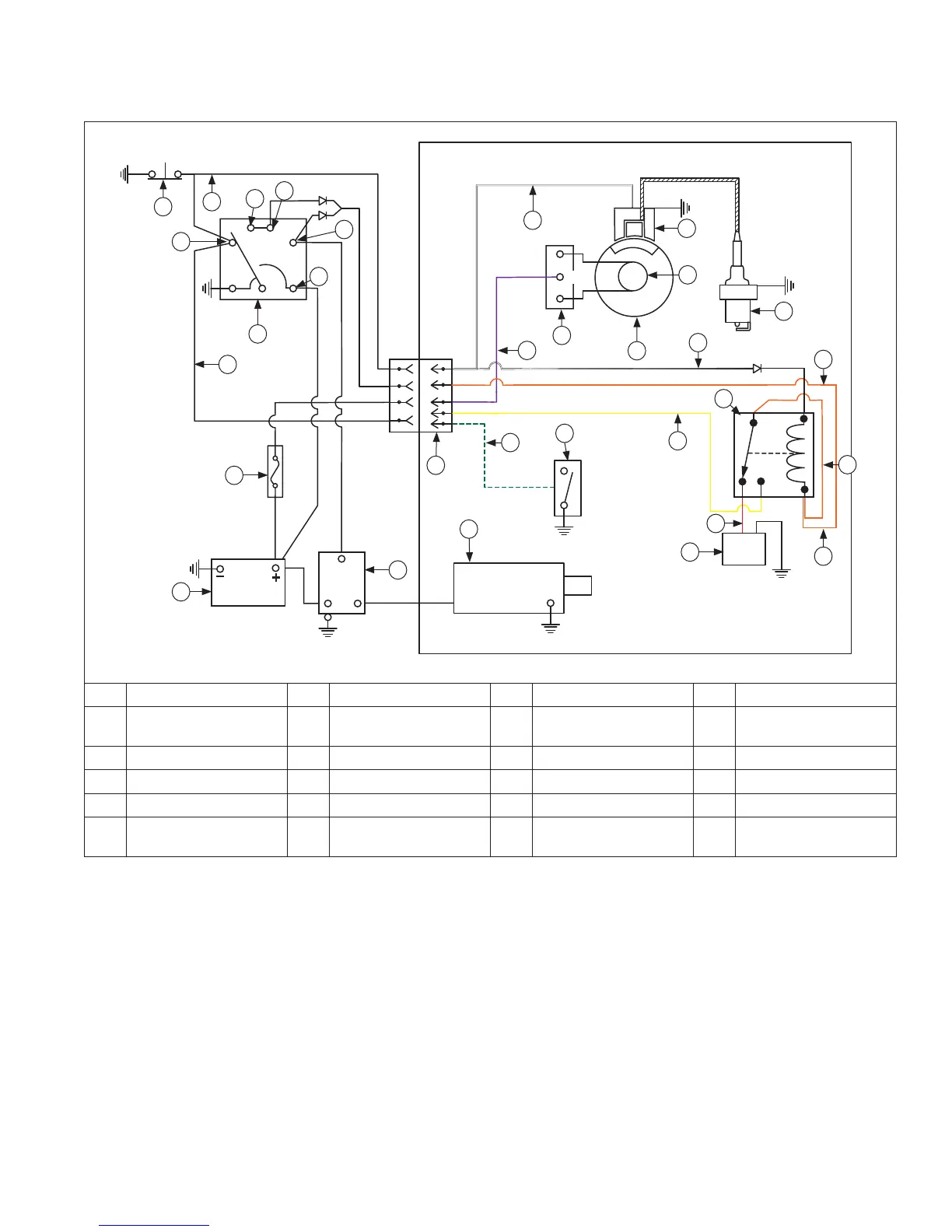

Wiring Diagram-12/15 Amp Regulated Battery Charging System with Fuel Relay
_
+
A
H
D
Q
R
J
M
O
K
P
E
C
S
N
T
D
F
I
J
S
O
Q
B
AC
AC
B+
X
W
G
U
V
L
V
V
A Red B Green C Violet D White
E Spark Plug F Fuel Shut-off Solenoid G
Optional Oil Sentry
™
Switch (Indicator)
H Bendix Starter
I Engine Connector J Starter Solenoid K Ground-To-Kill Lead L Key Switch
M Optional Oil Sentry
™
N Optional Fuse O Battery P Rectifi er-Regulator
Q Flywheel R Stator S Ignition Module T Accessory
U Fuel Shut-off Relay V Orange W Yellow X
Equipment Safety
Circuit
