พารามิเตอร
PARAMETERS
Power: AC 220V, 50/60 Hz
Sensor Duration: Less than 0.75 s
Shut-off Delay: 0.5~2 s
Sensing Distance: Automatic adjustment
Flow Rate: No more than 0.125L/s at 0.1 MPa.
Overtime Flowing Control: Automatically stop flushing
when the faucet senses an object for more than
1 minute continuously
Ambient Temperature: 1~55°C
Supply Water Temperature: 0.5~71°C
Supply Water Pressure: 0.05~0.86 MPa
INSTALLATION
ขอแนะนําการติดตั้ง
วิธีติดตั้งกอกนํ้า

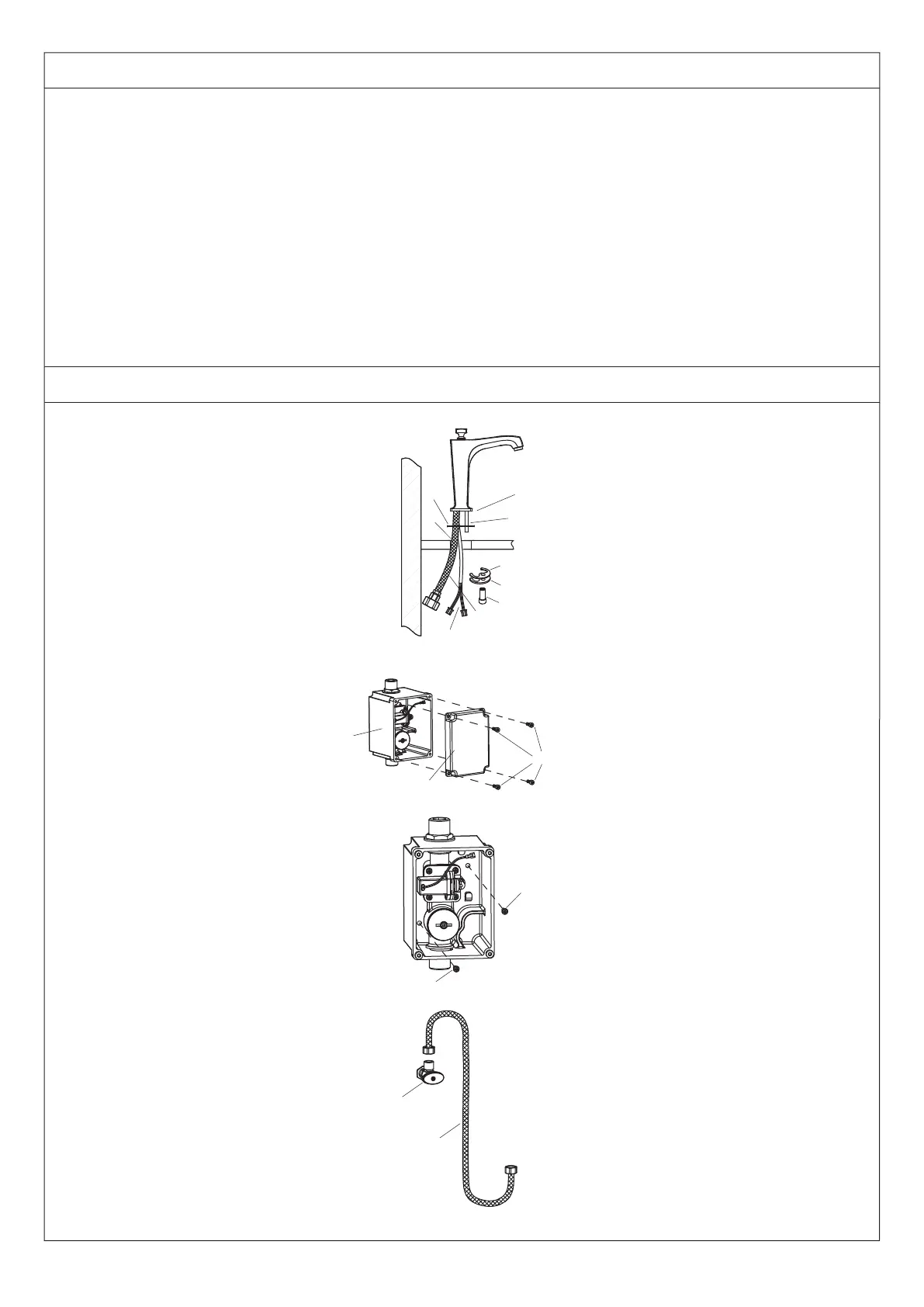

1. ประกอบกอกนํ้าเขากับอางลางหนา
How to Install the Faucet
1. Fixing the faucet and lavatory
Install the mounting stud (2) to the
bottom of the faucet (3), then slip the
washer (4) over the mounting stud and
put them into the groove on the spout.
Insert the power wire (9) and supply
hose (1) into the hole (5) from under-
side of the lavatory. From underside of
the lavatory, slide the rubber washer
(6), meter washer (7) and fixed nut (8)
onto the mounting stud (2). Tighten nut
(8) to make faucet installed on the
lavatory.
4
5
6
7
8
1
3
2
9
2. ประกอบกลองควบคุม
2. Fix the control box
Remove the cover (11) after loose the
screws (12). Determine the installation
location of control box (10) per
rough-in, then drill holes and place
sheath in it. Make the control box cling
on the wall and outlet upturned, then
fix the control box on the wall by
screws (13), keep the control box
parallel to the wall.
Connect check valve (14) and outlet
together, then connect the hose (15)
and check valve (14). Put a bucket in
the front of hose (15), turn on the check
valve (14) completely and open the
water supply. After the water flushing
about 1 minute, make sure no leakage
and turn off the water supply.
15
14
11
10
12
13
13
