22
12
11
16
10
15
22
16
15
14
16
ขอสังเกต:
ขอสังเกต:

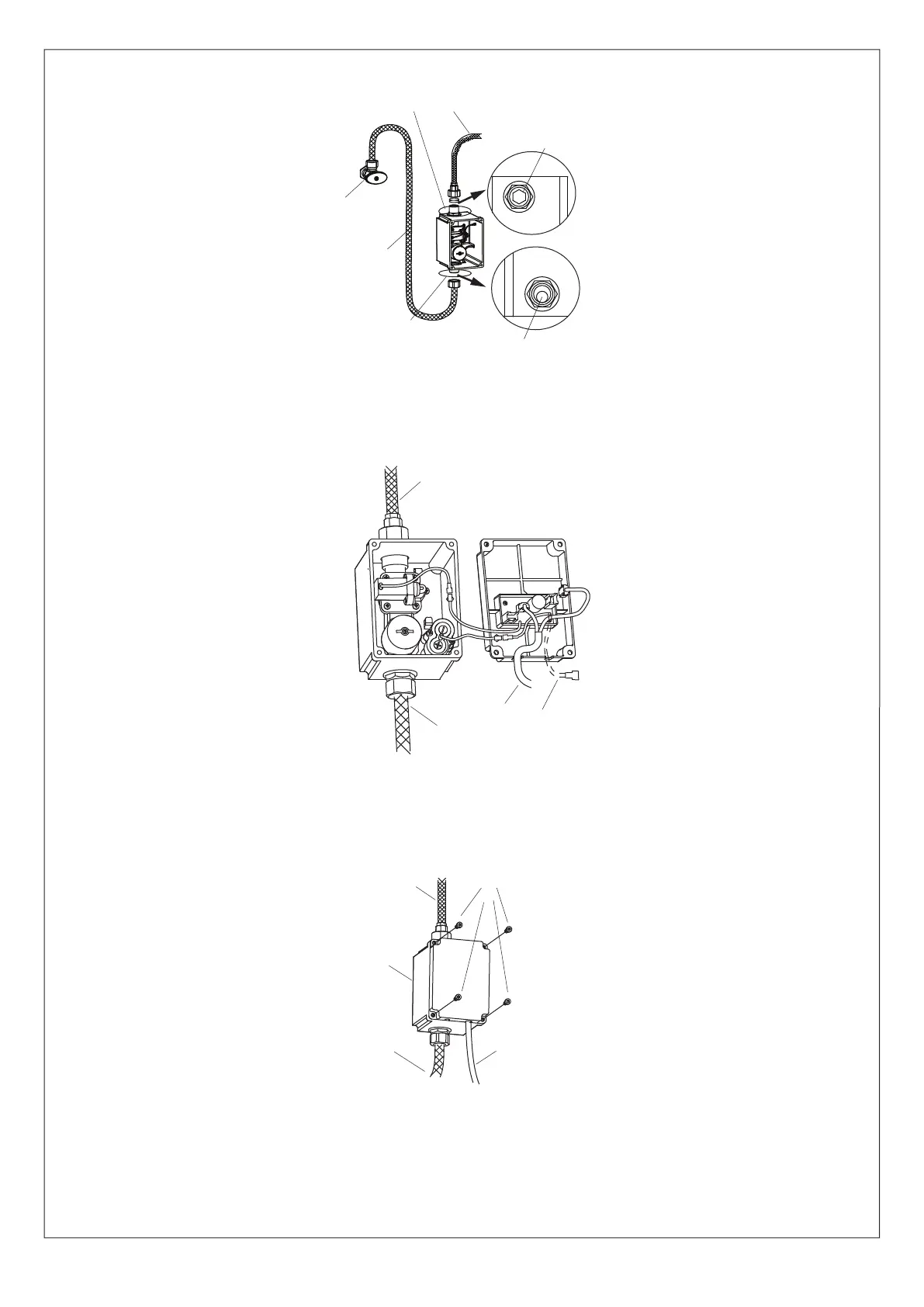

Connect hose (15) to the inlet of valve,
then connect the outlet of valve and
inlet (16) of spout assy.
NOTE:
1. Do not lost the washer of hose.
2. Please let user prepare check valve
and hose by themselves.
3. Do not confuse the inlet and outlet.
Round Hole
Finally, connect the red-green lines in
solenoid valve and cover of valve box,
then connect the black-orange lines in
power supply and control board (If you
faucet is AC version, please let the
black-green line in the control board
through the “U” gap and connect with
the line of AC power box). Connect the
red and white connectors in the sensor
line and cover, and tight the box (10)
and cover (11) by screws (12).
Connect AC/DC transformer
Hex Hole
NOTE:
1. When install the box and cover by
screws, make sure the sensor line
need to be through “U” Gap of cover.
2. Connect the batteries, faucet will b
in the period of automatic adjusting
sensing distance (about 10 minutes).
The faucet will not work during this
period.
Inlet
Outlet
1115767-X2-A
©2014 Kohler Co.
To Next Page
