Kohler MARGAUX User Manual

23
24
23
24
25
26
27
วิธีติดตั้งสะดืออาง








ขอสังเกต: 





วิธีติดตั้งหมอแปลงไฟ AC/DC
(สําหรับรุนที่ใชไฟ AC เทานั้น)

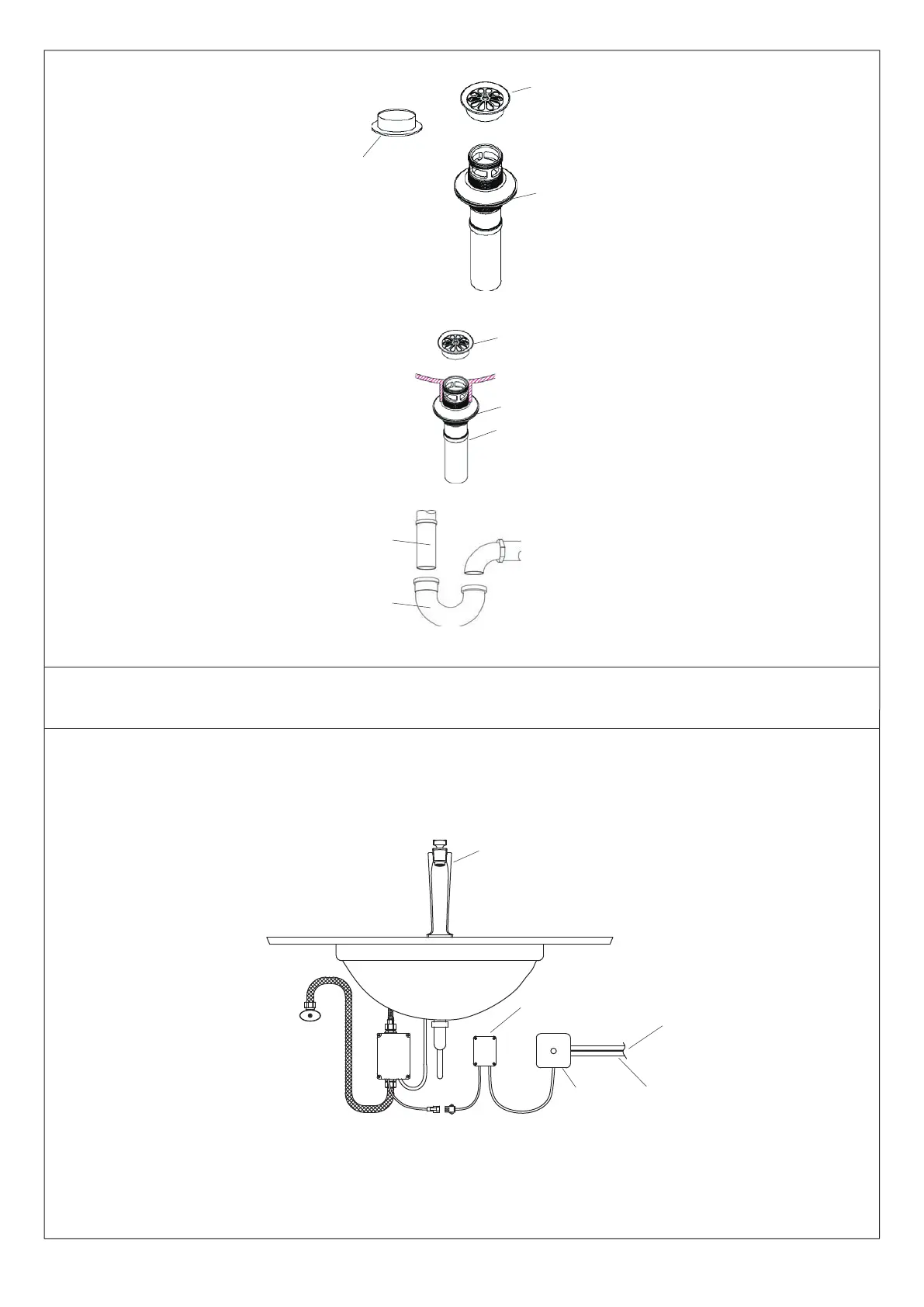

How to Install the Drain
Screw off the drain flange (23) from
drain. Apply a ring of plumbers putty
around underside of the drain flange
(23). Insert the drain body (24) into the
lavatory from the underside.
Apply Plumbers
Putty

Thread the drain flange (23) onto the
drain body (24). Tighten the locknut
(25) by hand from the underside of the
fixture. Remove any excess putty.
NOTE: Do not try to change the
position of the drain after the
locknut(25) is tightened, or you may
break the putty seal.
Connect the tailpiece (26) to the trap
(27).The tailpiece should extend
25 mm to 55 mm into the trap.
Wire connection pattern for one to one

Faucet

AC/DC Transformer

Connect AC 220V


Switch

Wire Tube

HOW TO INSTALL THE AC/DC TRANSFORMER
(ONLY USED WITH TOUCHLESS FAUCET, AC)
5
©2014 Kohler Co.
1115767-X2-A

Kohler MARGAUX Specifications

General

Material	Metal
Handle Type	Lever
Number of Handles	2
Valve Type	Ceramic Disc
ADA Compliant	Yes
Product Type	Bathroom Faucet
Finish	Polished Chrome
Flow Rate	1.2 gpm (4.5 lpm) at 60 psi (4.14 bar)
Installation Type	Deck Mount
