NOTE: Not allowed connect AC 220V electrical source to DC wire connector of AC/DC transformer
ขอสังเกต:

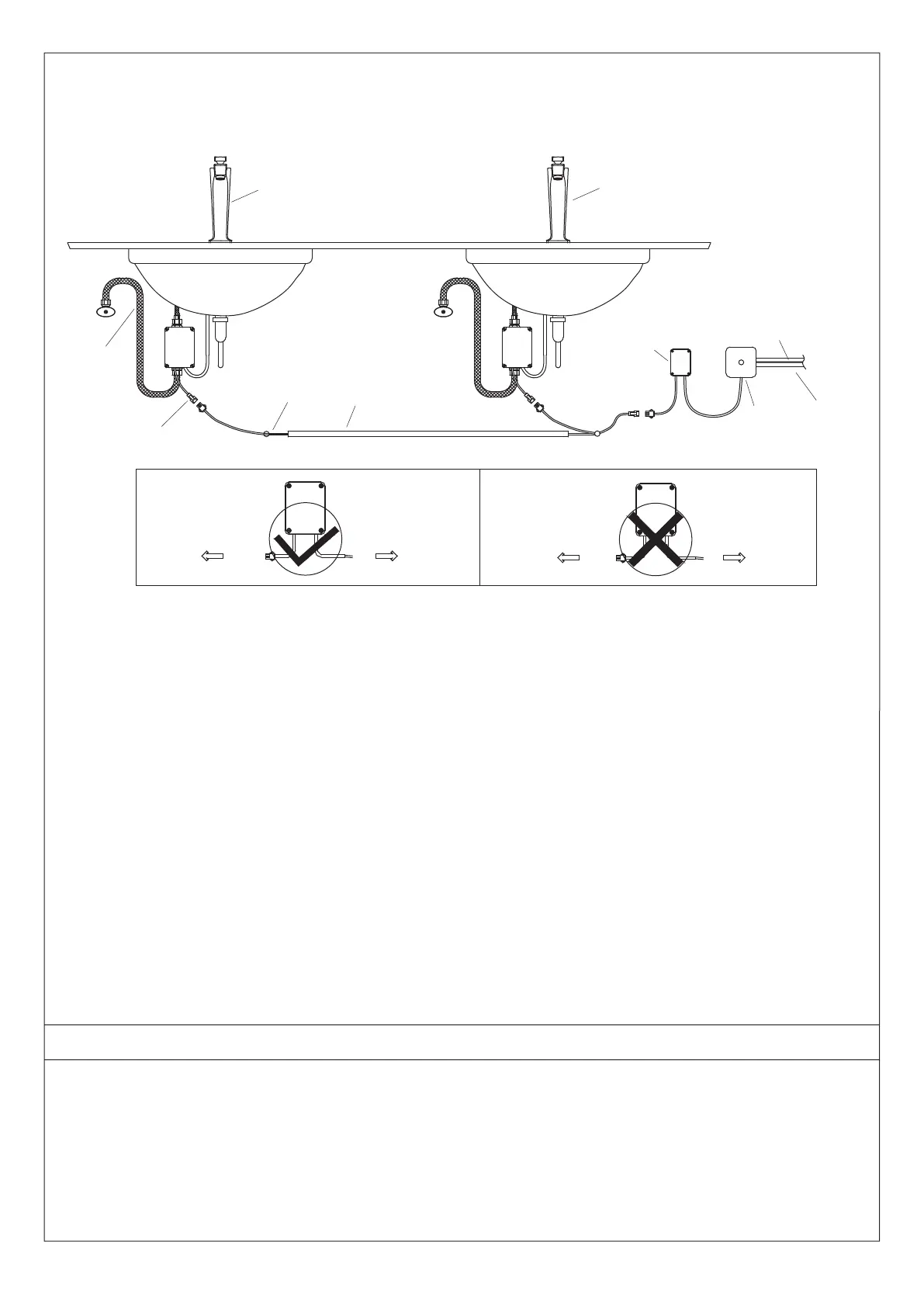

Wire connection pattern for one to two
Connect to Faucet
Connect to Electrical
Source
Connect to Electrical
Source
Connect to Faucet
Faucet
Faucet
Hose
Connector
Wire
Wire Tube
Switch
Wire Tube
AC/DC
Transformer
Connect AC 220V
1. Install AC power unit (sticker on the back) dry, and
avoid showering, soaking from water. Customer
prepare wire tube and wire according to requirement.
Wire tube should be put into the wall. Suggested wire:
AC connection wire should with insulated protecting
layer or sleeve and the section should be bigger than
0.5 mm
2
. The section of DC connection wire should be
bigger than 0.3mm
2
. The connection pattern must
according to illustrations above.
2. After wire layout finished, check and repair if needed.
Then connect AC connector of AC/DC transformer to
electrical source from the control box, and DC
connector of AC/DC transformer to faucet. Turn on
AC electrical power, faucet will be in the period of
automatic adjusting sensing distance (about
10 minutes). The faucet will not work during this
period.
INSTALLATION CHECKOUT
ทดสอบการติดตั้ง
Check and ensure that all connections are tight. Open the
drain. Turn on main water supply and check for leaks.
Replace as required.
1115767-X2-A
©2014 Kohler Co.
