Koldfront WAC25001W Service Manual

7

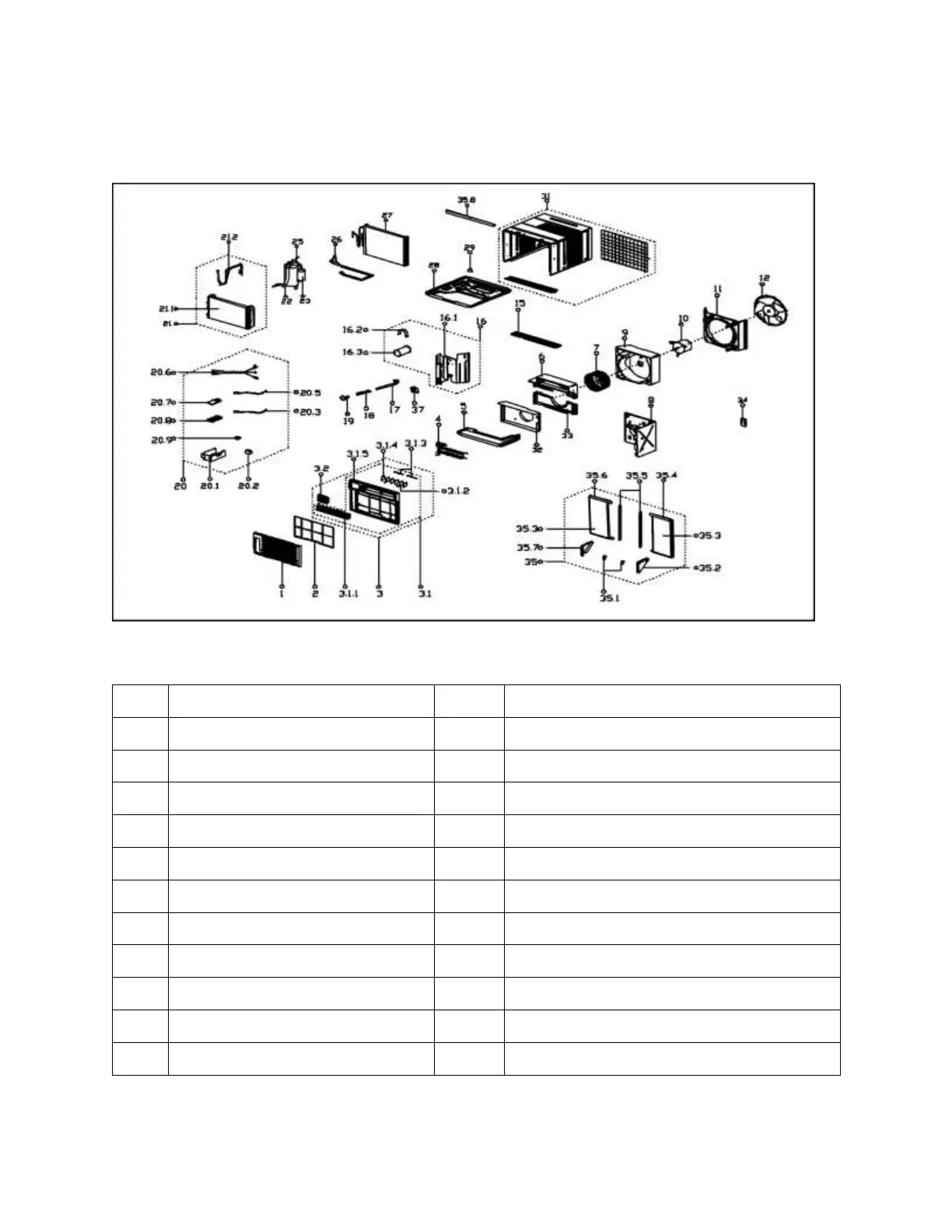

1.2 WAC18001W
No.
Part Name
No.
Part Name
1
Front panel
20.4
Ambient temperature sensor assembly
2
Air filter
20.5
Discharge temperature sensor assembly
3
Panel frame parts
20.6
Power cord
3.1
Panel frame
20.7
Main control board assembly
3.1.1
Air outlet assembly
20.8
Bracket for main control board
3.1.2
Horizontal louver
20.9
transformer
3.1.3
Connecting rod of louver
21
Evaporator coil parts
3.1.4
Horizontal louver
21.1
Evaporator coil
3.1.5
Panel frame
21.2
Capillary assembly
3.2
Display box assembly
22
Suction pipe assembly
4
Electric heater
23
Compressor

Koldfront WAC25001W Specifications

General

Description of product	Window Air Conditioner and Heater
Model	WAC25001W
Color	White
Voltage/Frequency	208-230V / 60Hz
Current (Cooling / Heating)	11.3 / 22.5A
BTUs (Cooling / Heating)	25, 000 / 16, 000
Coolant	R410A, 36.7 oz.
Timer	24 Hour

Weight and Dimensions

Dimensions W x D x H	26.5” x 26.5” x 18.6”
Weight	131 lbs.
