Koldfront WAC8001W Service Manual

9

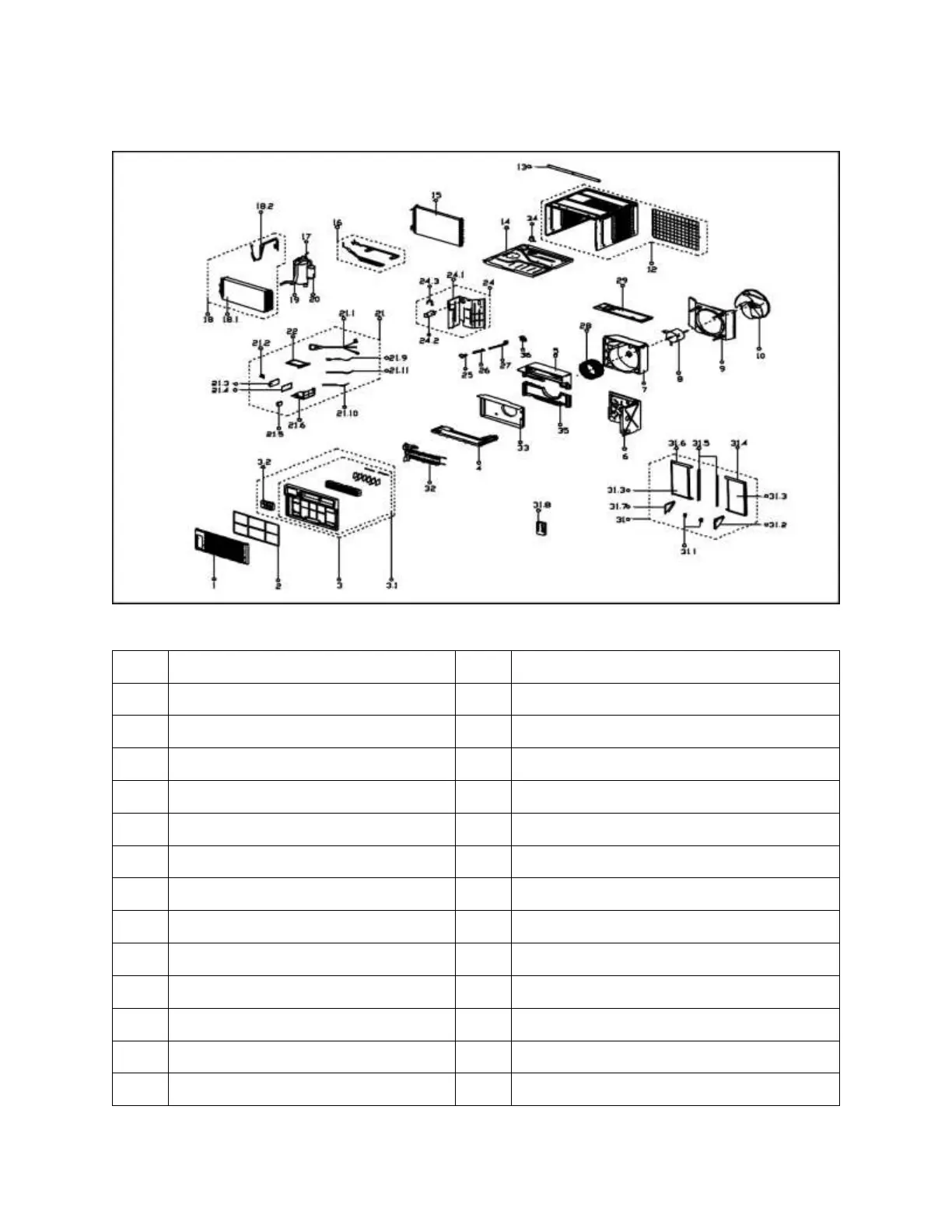

1.3 WAC25001W
No.
Part Name
No.
Part Name
1
Front panel
21.5
Capacitor for fan motor
2
Air filter
21.6
Electronic control box
3
Front panel and Panel frame parts
21.9
Room temperature sensor assembly
3.1
Front panel and Panel frame assembly
21.10
Discharge/Heat sensor assembly
3.2
Display box assembly
21.11
Defrost sensor assembly
4
Water collector
24
Front left barrier board assembly
5
Front volute shell
24.1
Front left barrier board assembly
6
Front right barrier board assembly
24.2
Capacitor for compressor
7
Rear volute shell
24.3
Capacitor clip
8
Asynchronous motor
25
Connecting rod for fresh air door
9
Rear barrier board assembly
26
Bracket for fresh air door
10
Axial flow fan
27
Fresh air door
12
Cabinet assembly
28
Centrifugal fan
