3 Main Components

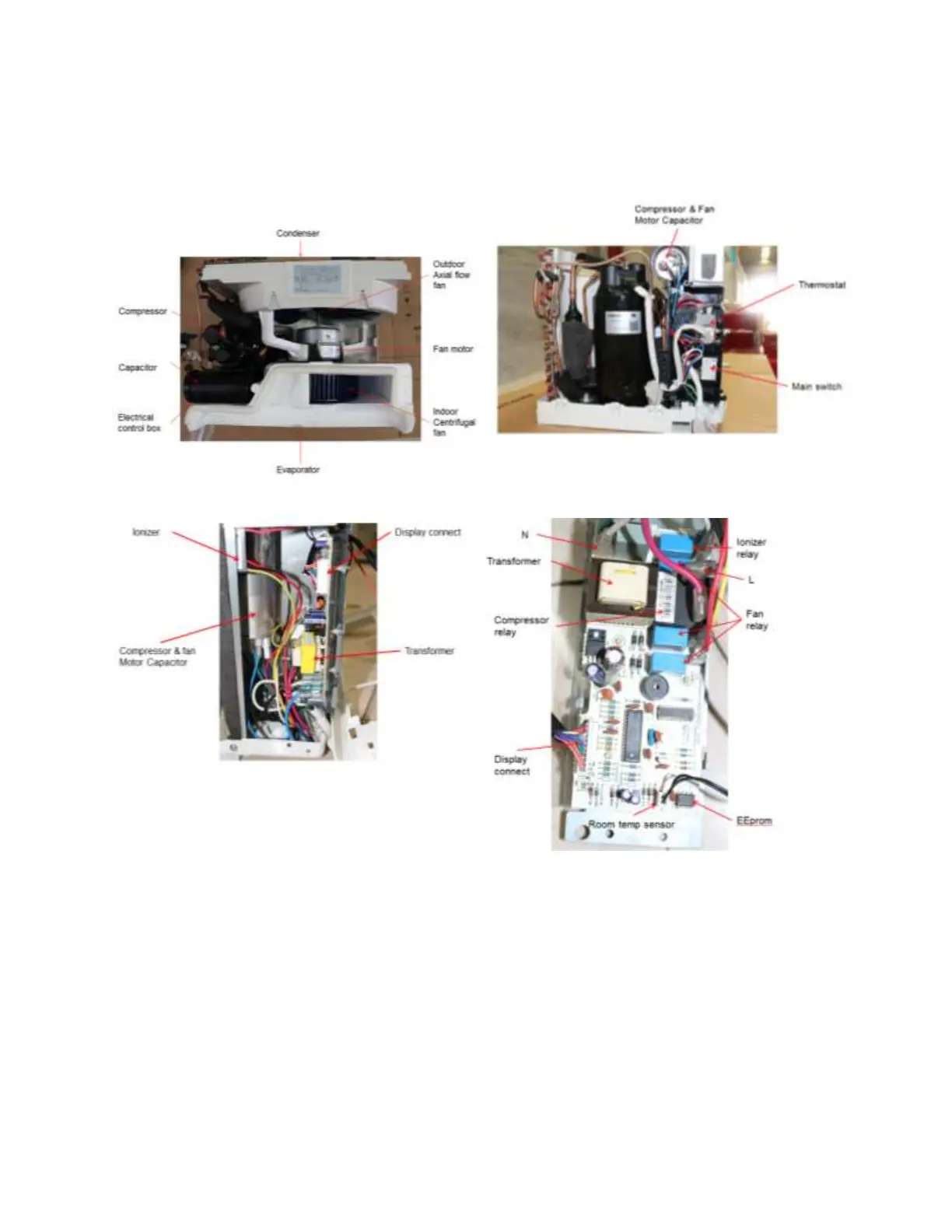

3.1 Major Parts
3.2 Electronic Control Box and Main PCB
3.3 Sensor and Display Connections on Main PCB
All sensor connections are clearly marked on the PCB (Room, Def) and are located near the display
ribbon cable connection. Refer to this diagram when troubleshooting unit display issues or sensor error
codes.
