Kollmorgen AKM11B User Manual

Connections and cables
Data AKM4
Power connection 4 + 4 poles, round, angular
Motorcable, shielded 4 x 1,5
Motor cable with control leads, shielded 4x1+2x0,75
Resolver connection 12 poles, round, angular
Resolver cable, shielded 4x2x0,25mm²
Encoder connection (option) 17 poles, round, angular
Encoder cable, shielded 7x2x0,25mm²

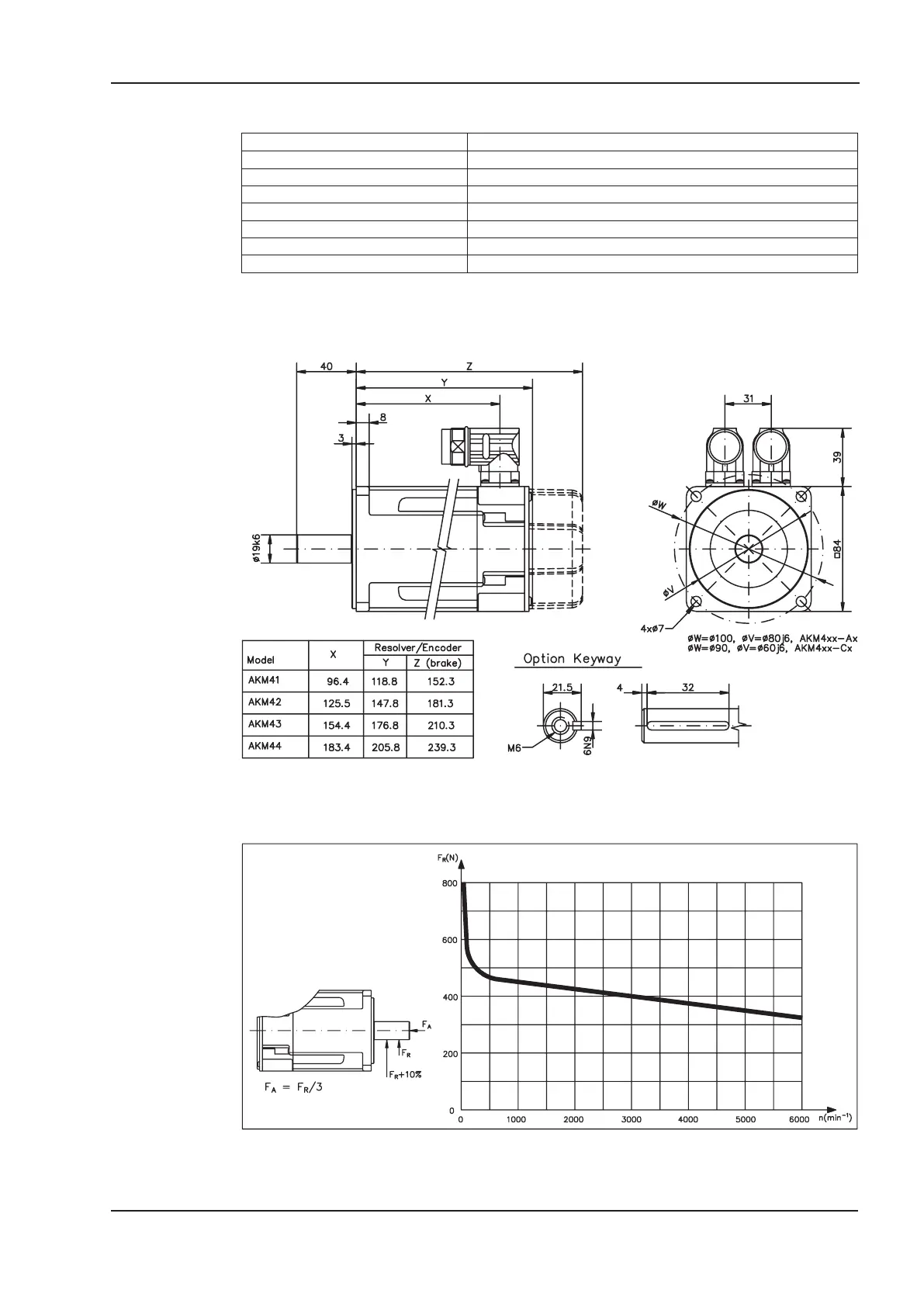

Dimensions (drawing in principle)
Radial-/axial forces at the shaft end
- A.4.043.4/03, 13 - A.4.043.3/03, 044.3/12, 15, 16
Servomotors AKM 31
Kollmorgen 05/2006 Technical Data

Kollmorgen AKM11B Specifications

General
