Connections and cables
Data AKM5
Power connection 4 + 4 poles, round, angular
Motorcable, shielded 4 x 1,5 4 x 2,5
Motor cable with control leads, shielded 4 x 1,5+2x0,75 4 x 2,5+2x1
Resolver connection 12 poles, round, angular
Resolver cable, shielded 4x2x0,25mm²
Encoder connection (option) 17 poles, round, angular
Encoder cable, shielded 7x2x0,25mm²

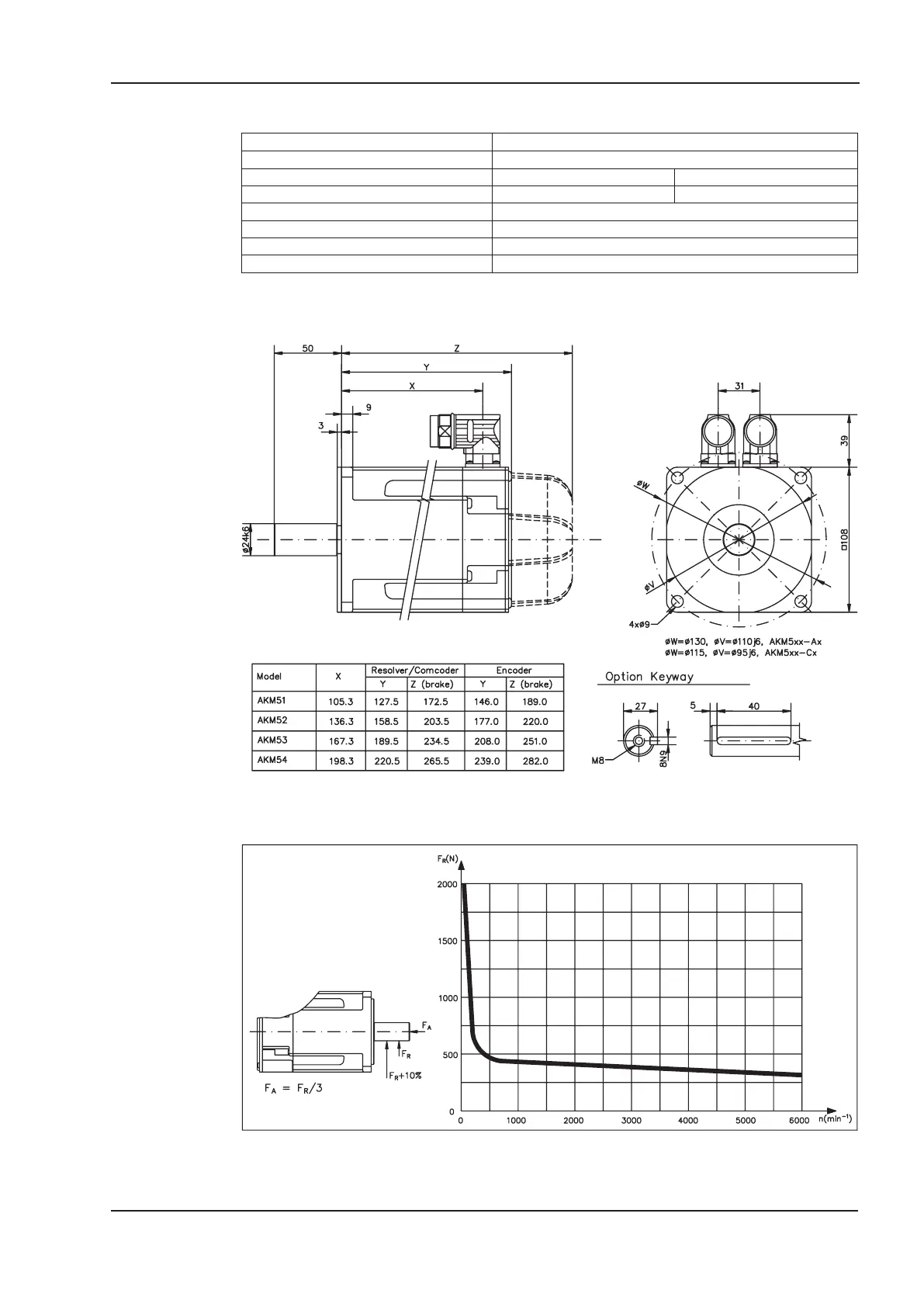

Dimensions (drawing in principle)
Radial-/axial forces at the shaft end
- A.4.043.4/04, 13
Servomotors AKM 33
Kollmorgen 05/2006 Technical Data
