EXPLANATION OF COMPONENTS OPERATION
3-56
AIR CONDITIONER, HANDLING 3
(Machine equipped with cab, air conditioner)
EXPLANATION OF PARTS 3
OFF SWITCH
When this switch (1) is depressed, the air conditioner stops
sending wind.
AIR CONDITIONER SWITCH
This switch (2) is an ON - OFF switch for the air conditioner.
Every time this switch is depressed, ON and OFF are alter-
nated.
When the switch is ON, indicator (A) above lights up.
REMARK
This switch (2) is not in place with the heater specifications.

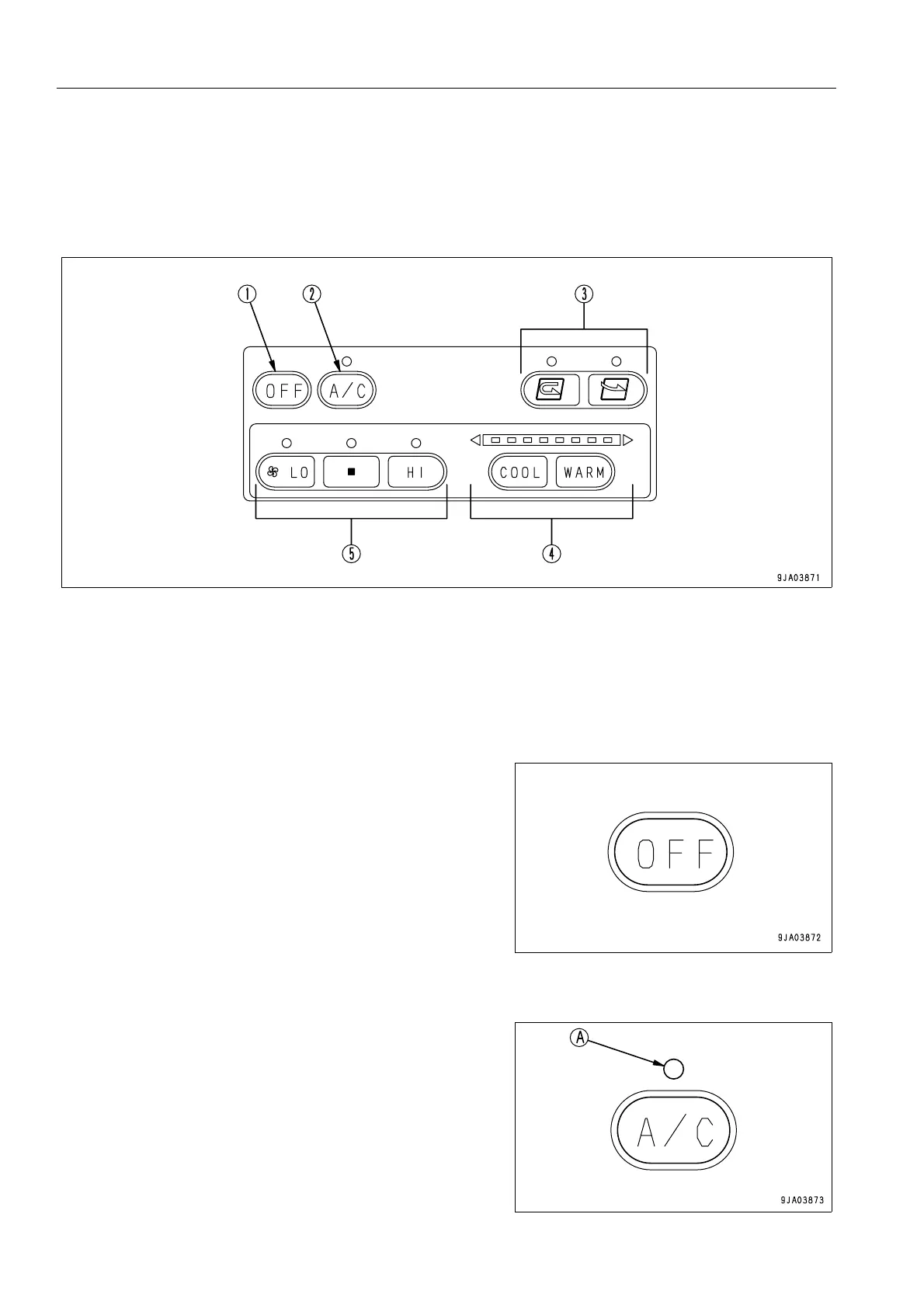

(1) OFF switch (4) Temperature control switch
(2) Air conditioner switch (5) Air flow selector switch
(3) FRESH/RECIRC selector switch
