HANDLING HYDRAULIC RIPPER ATTACHMENTS, OPTIONS
6-4
EXPLANATION OF COMPONENTS 6
RIPPER CONTROL LEVER
WARNING
When carrying out inspection or maintenance of the machine, or when parking the machine, lower the rip-
per to the ground and set the safety lock lever to the LOCK position.

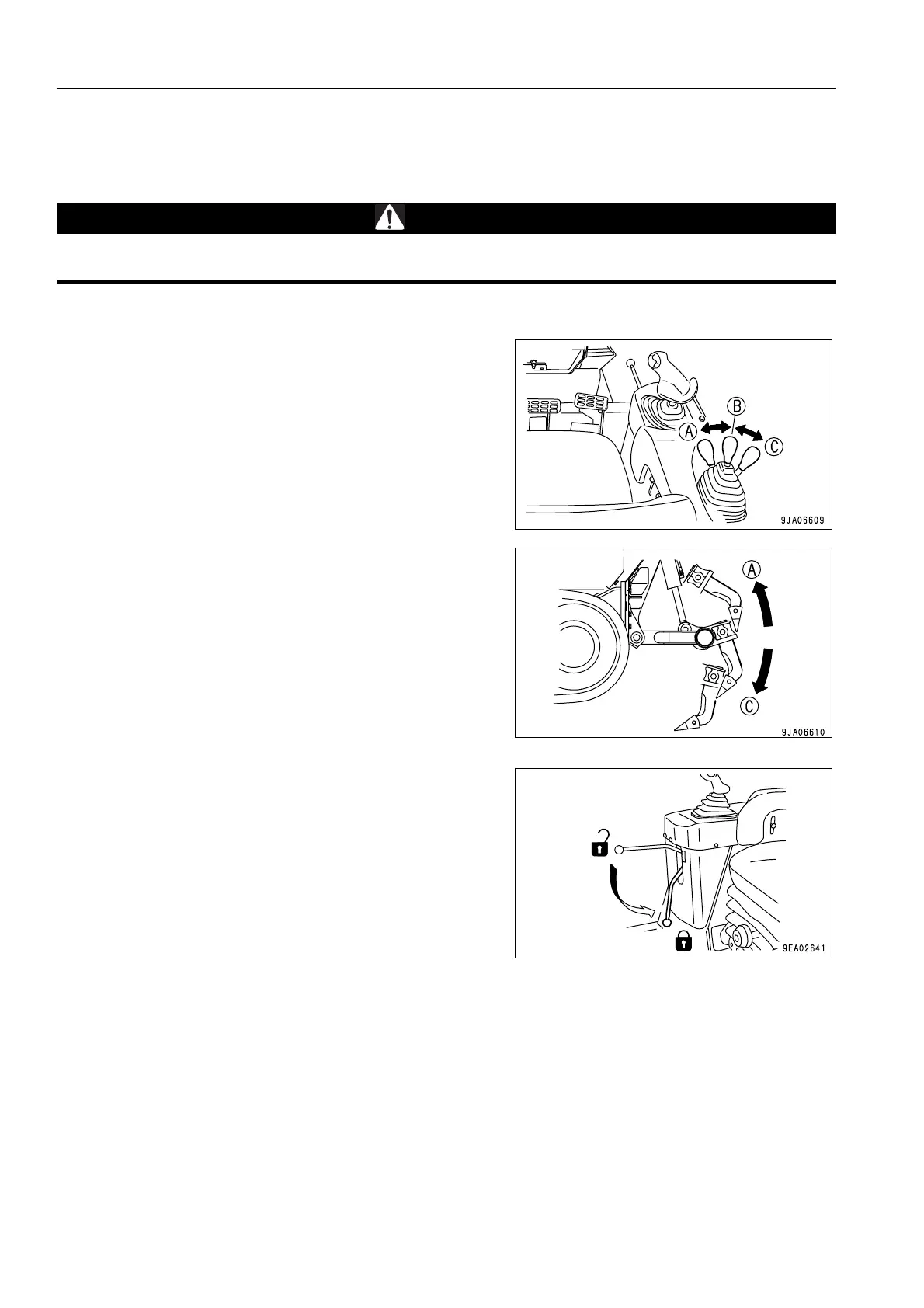

This lever is used to operate the ripper.
(A) RAISE
(B) HOLD: Ripper is stopped and held in the same position.
(C) LOWER
REMARK
The ripper operation is locked by the safety lock lever. For
details of the operation of the safety lock lever, see “SAFETY
LOCK LEVER (3-39)“.
Free
Lock
