OPERATION GENERAL VIEW
3-3

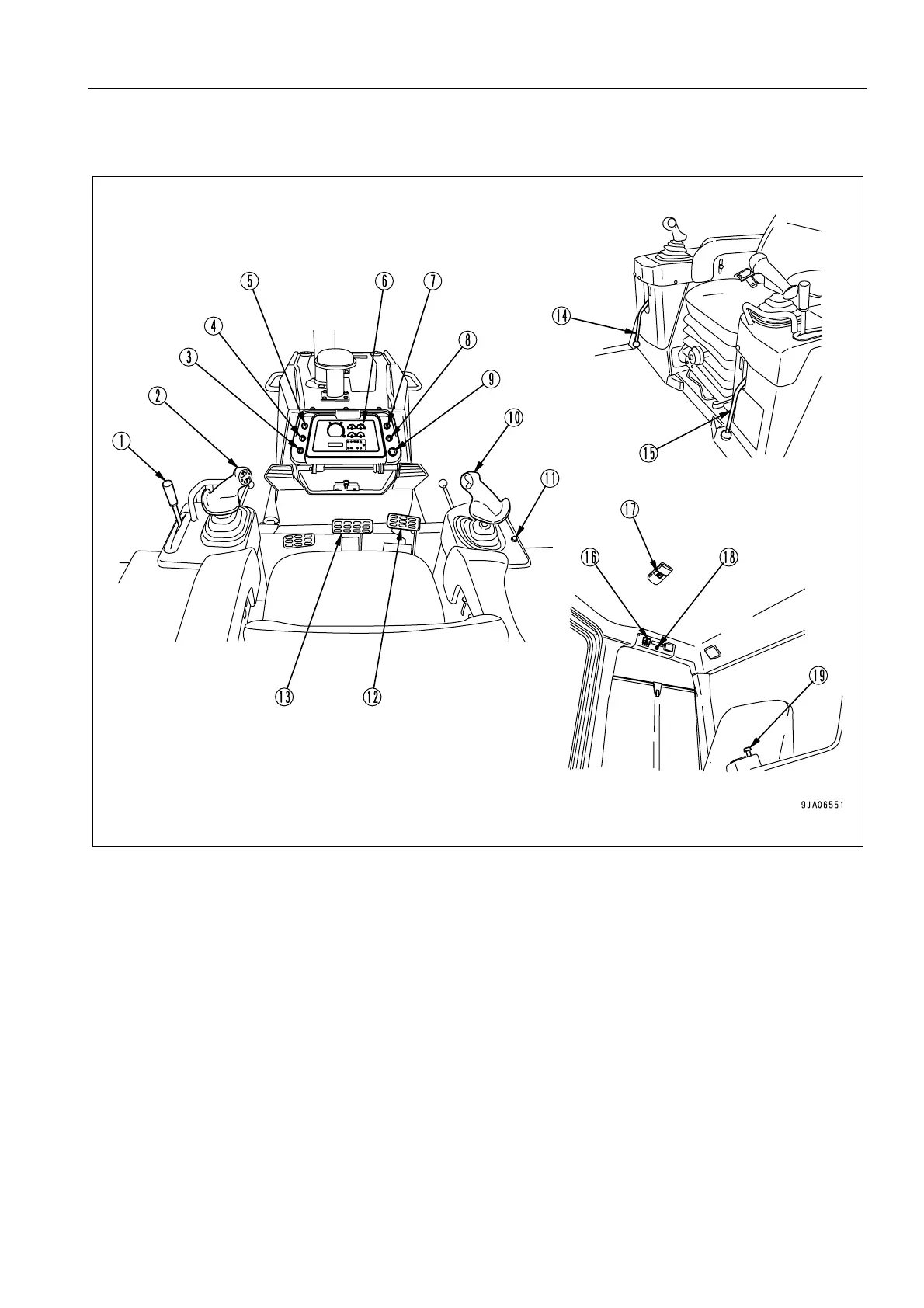

GENERAL VIEW OF CONTROLS AND GAUGES 3
(1) Fuel control lever (11) Horn switch
(2)
Joystick (Steering, directional and gear shift
lever)
(12) Decelerator pedal
(3) Information switch (13) Brake pedal
(4) Buzzer cancel switch (14) Safety lock lever
(5) Lamp switch (15) Parking lever
(6) Monitor panel (16) Wiper switch (machine equipped with cab)
(7) Reverse travel speed setting switch (17) Room lamp switch (machine equipped with cab)
(8) Shift mode switch
(18) Wiper motor breaker reset button (machine
equipment with cad)
(9) Starting switch
(10) Blade control lever (19) Cigarette lighter (machine equipped with cab)
