OPERATION EXPLANATION OF COMPONENTS
3-5
EXPLANATION OF COMPONENTS 3
The following is an explanation of the devices needed for operating the machine.
To perform suitable operations correctly and safely, it is important to completely understand the methods of operat-
ing equipment and meanings of the displays.

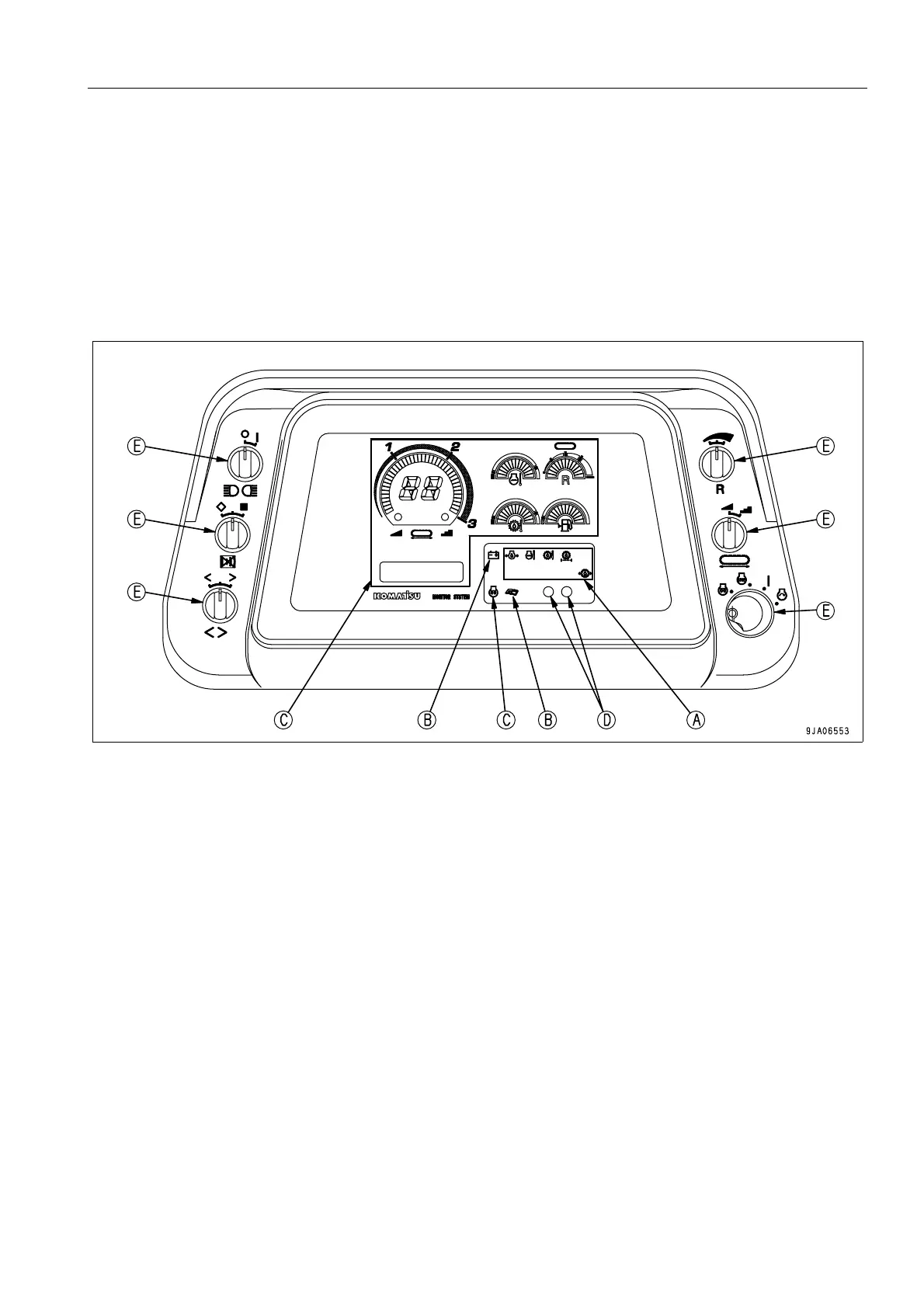

FRONT PANEL 3
(A) Emergency caution group (D) Lamp
(B) Caution group (E) Switch
(C) Meter group
