GENERAL VIEW OPERATION
3-4

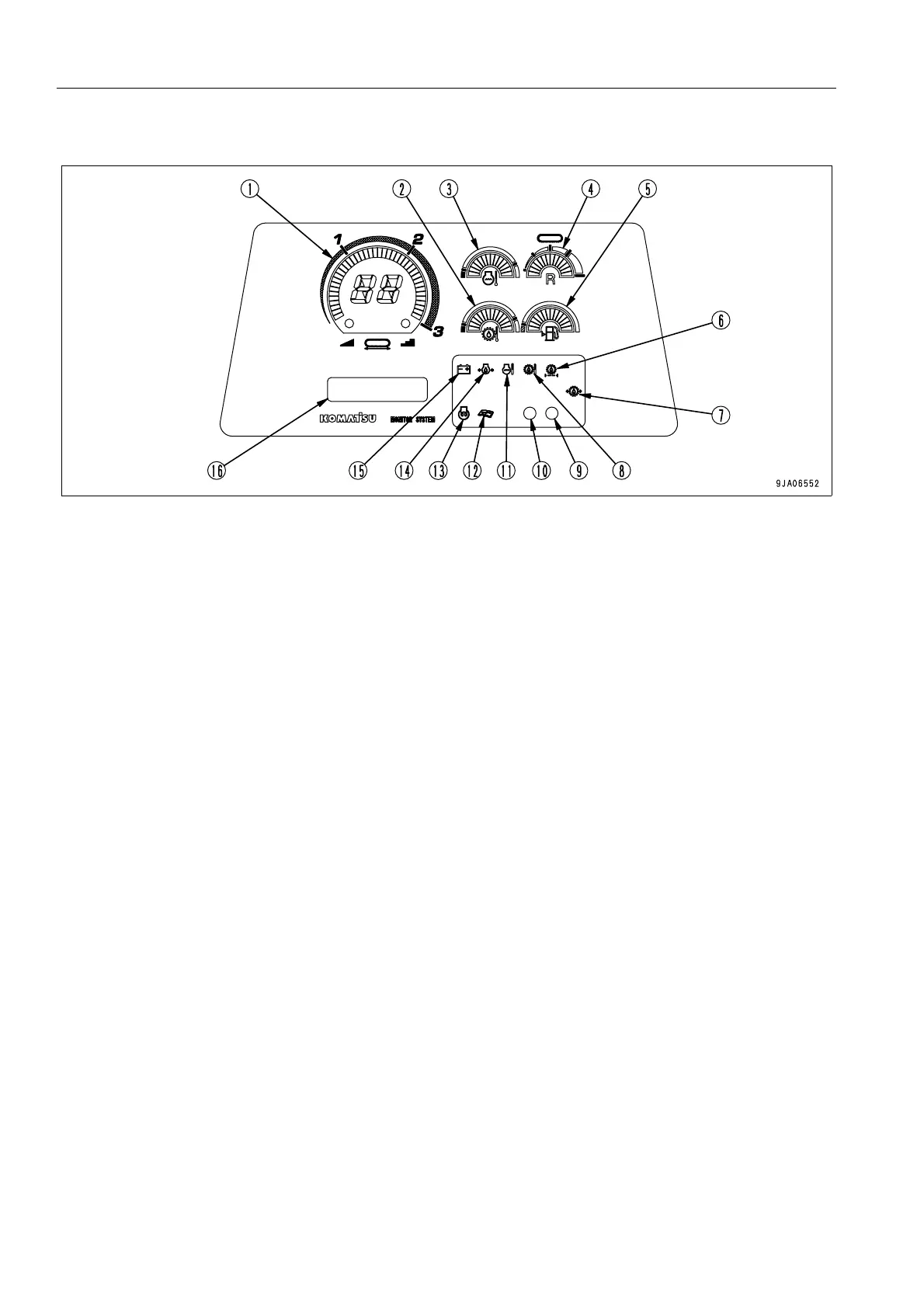

MONITOR PANEL
(1)
Display panel A (Speed range, Set travel speed,
Shift mode Indicator)
(9) Filter/oil replacement interval lamp
(2) HST oil temperature gauge (10) Warning lamp
(3) Engine coolant temperature gauge (11) Engine coolant temperature caution lamp
(4) Reverse travel speed indicator (12) Maintenance caution lamp
(5) Fuel level gauge (13) Engine preheating pilot lamp
(6) Charge filter clogging caution lamp (14) Engine oil pressure caution lamp
(7) HST charge pressure caution lamp (15) Battery charge circut caution lamp
(8) HST oil temperature caution lamp (16) Display panel B (Multi-information)
