ATTACHMENTS, OPTIONS HANDLING HYDRAULIC RIPPER
6-3
HANDLING HYDRAULIC RIPPER 6
q This ripper is applicable for the D31EX and D37EX and D39EX.

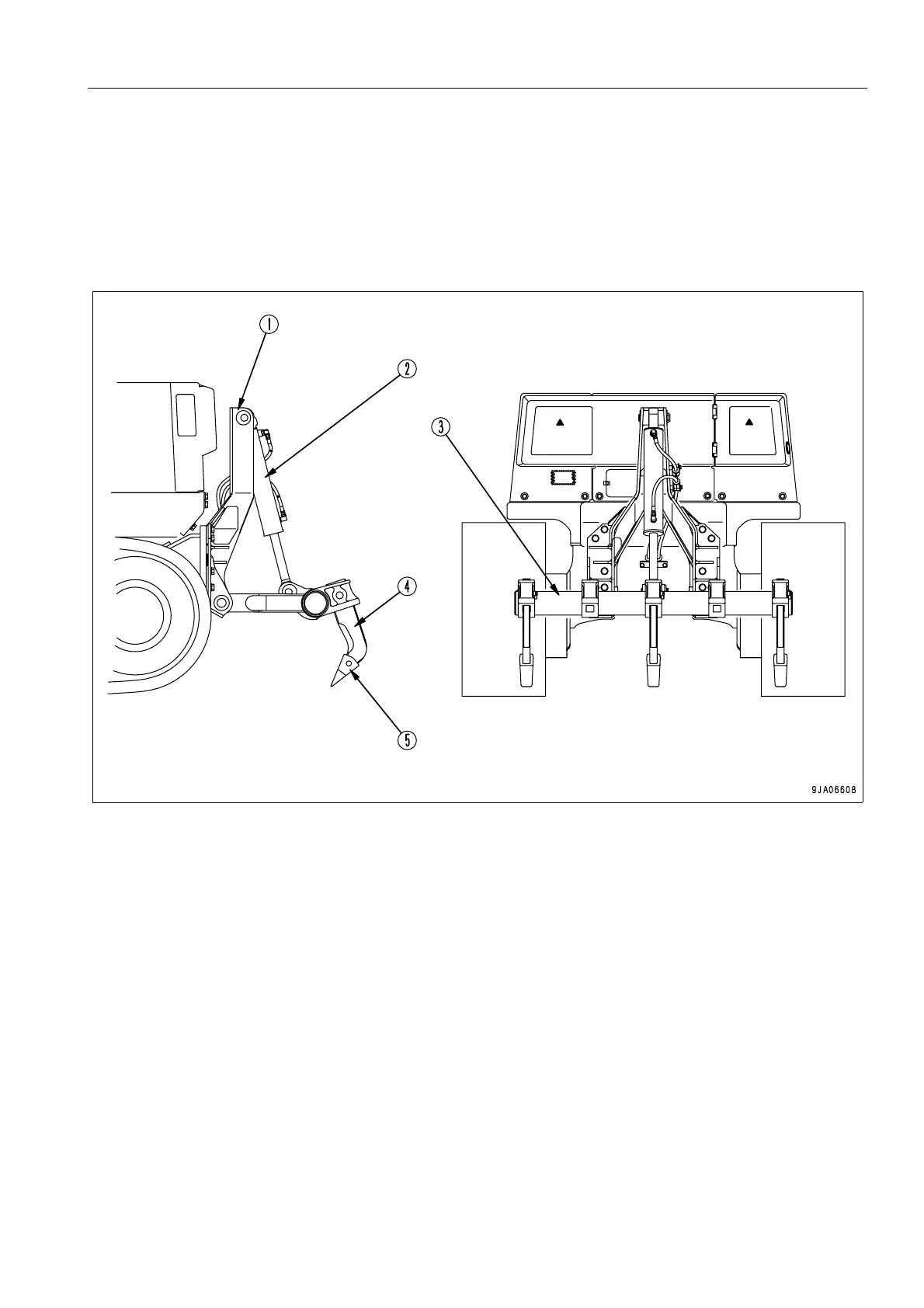

GENERAL VIEW 6
(1) Support (4) Shank
(2) Hydraulic cylider (5) Point
(3) Beam
