6 Remove the hexagon nut and separate the potentiometer.

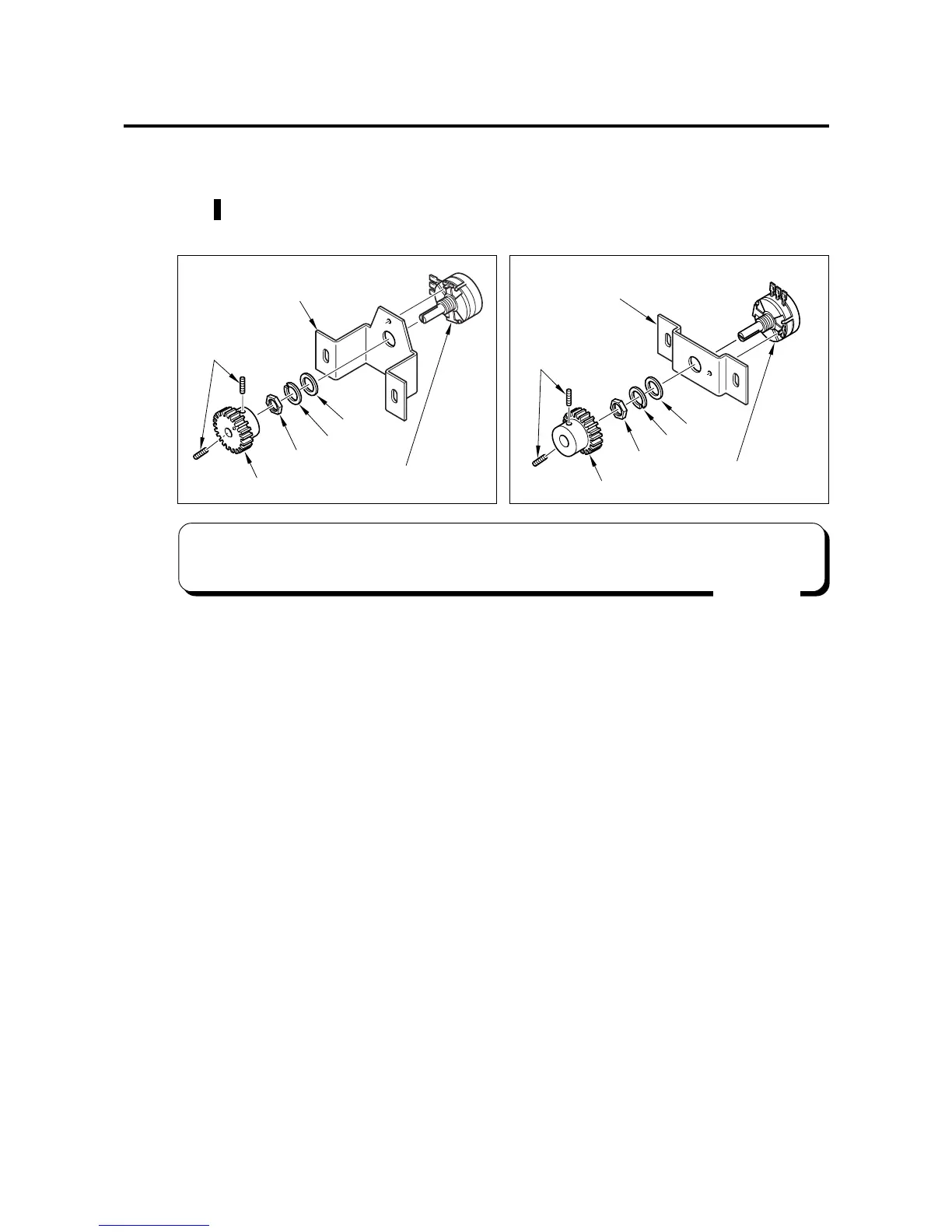

Rifle unit up/down control potentiometer Rifle unit right/left control potentiometer
MEMO
•When replacing the potentiometers with new ones, be sure to first make the
adjustment on the next page.
7 Maintenance
Potentiometer bracket
Lock screws
Flat washer
Spring washer
Hexagon nut
Gear
Potentiometer
Code No. : 0000001723
Potentiometer bracket
Lock screws
Flat washer
Spring washer
Hexagon nut
Gear
Potentiometer
Code No. : 0000001723
