Installation
20220760I 71
Connecting a Simrad XX32/XX40/XX50 series
GPS Plotter
NMEA out
This will provide the chart plotter with speed, depth, temperature
and wind information.
NMEA in
This will provide navigational data to the instrument system.

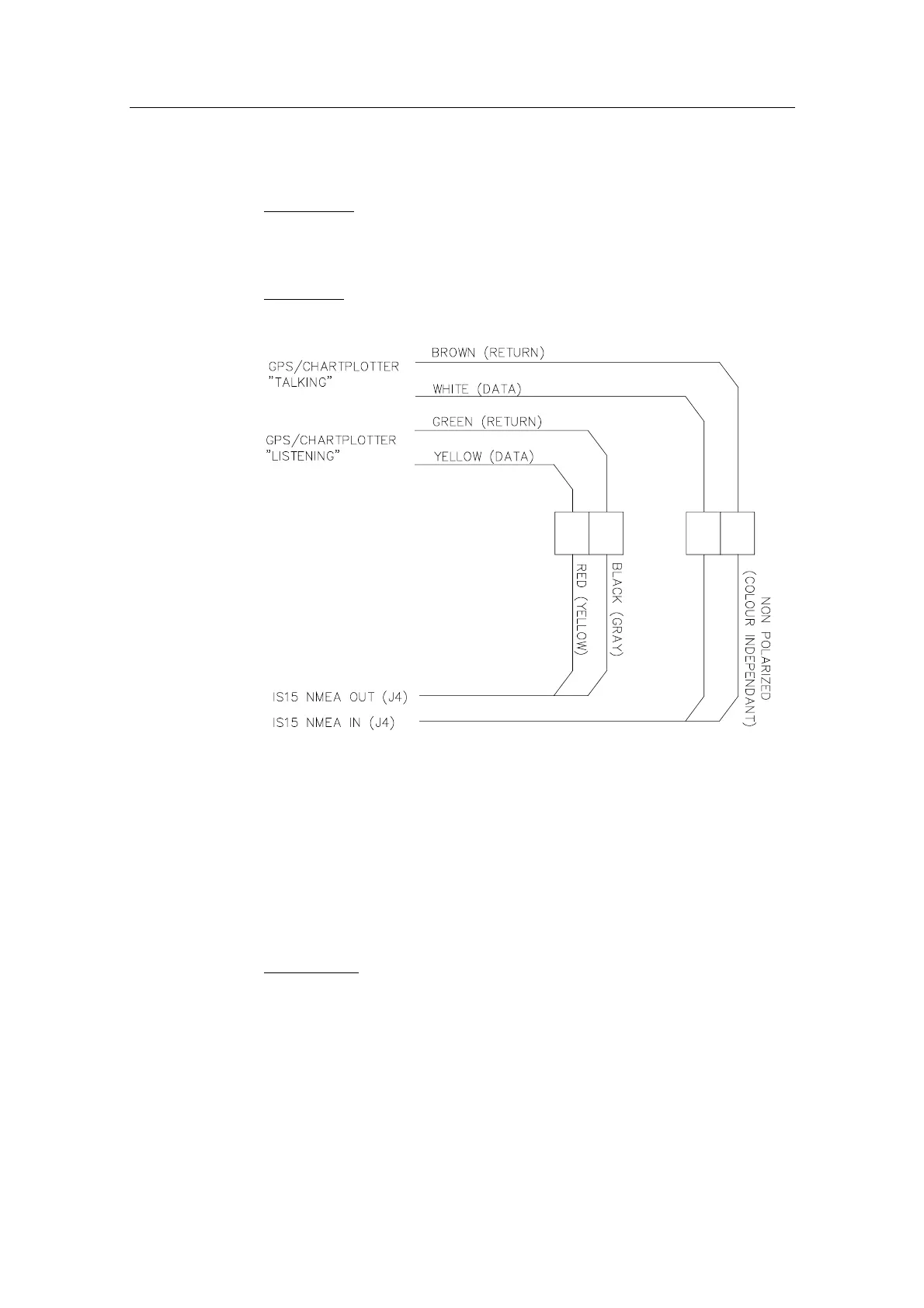

Figure 6-12 Simrad XX32/XX40/XX50 series connection
Note ! Even if the NMEA input is automatically polarized on the IS15
instruments, it may be necessary to interchange the wires from
XX32/40/50 series if depth sounding problems are observed in
models that contain a depth sounder.
Connecting a Simrad AP12 or AP14 Autopilot
NMEA Out
This connection will provide speed data to the autopilot. For the
Hydraulic Drive configuration the IS15 Instrument Head is
connected to the SCP Course Computer (Figure 6-13). For the
Rotary Drive Configuration the IS15 Instrument head is
connected to the SRD12 Rotary Drive Unit (Figure 6-14).
If an IS15 Wind Transducer is connected to the system, wind
information will also be transferred to the autopilot.
