IS15 General Manual
72 20220760I

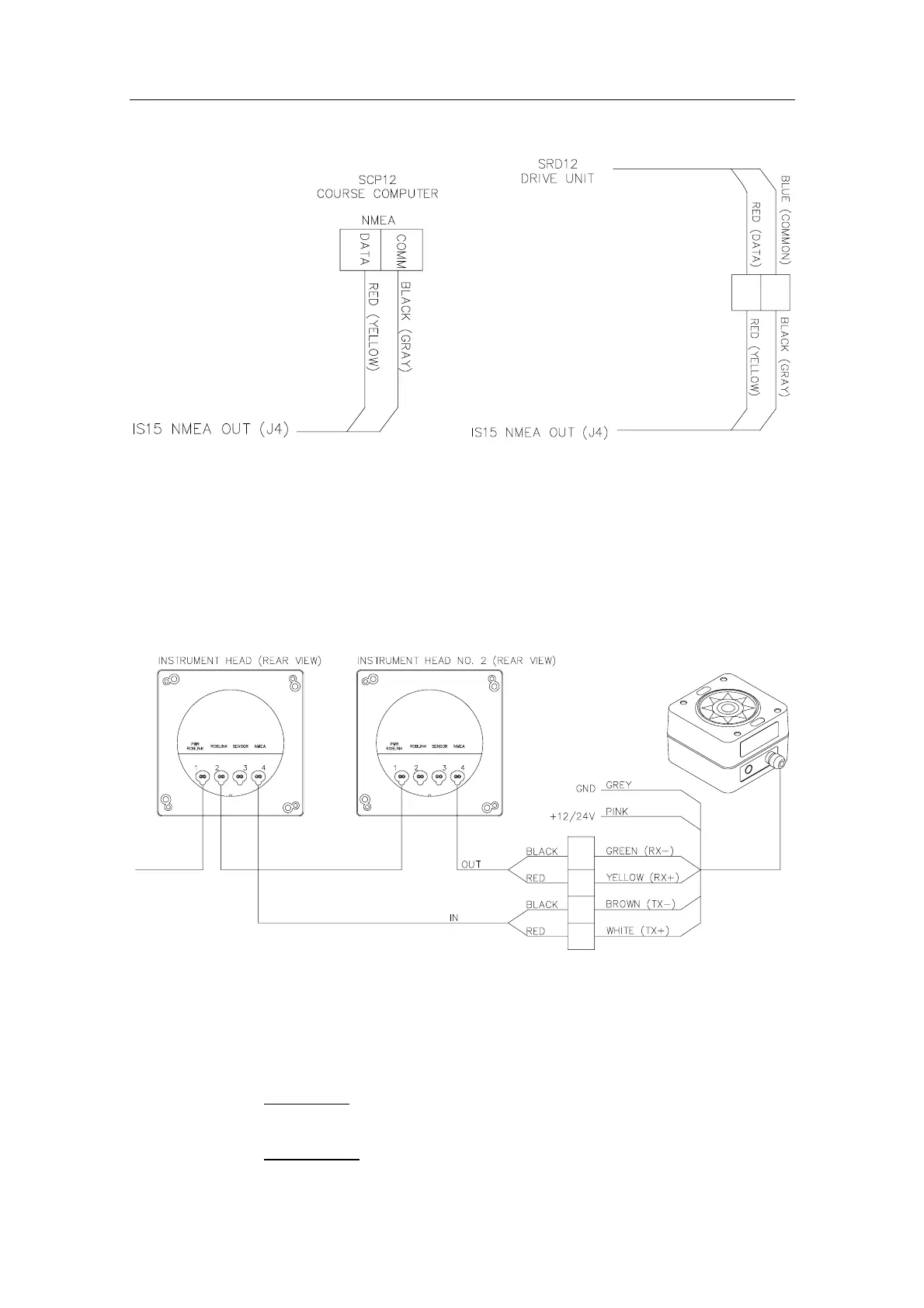

Figure 6-13 Connection to
AP12H/AP14H Autopilot
Figure 6-14 Connection to
AP12R/AP14R Autopilot
RFC35N (NMEA) and RFC35R (Rate) Compass connection
Figure 6-15 Connection to RFC35N and RFC35R Compasses
Note ! Read the wiring instructions that comes with the RFC35R Rate
Compass.
NMEA in: ‘Heading’ and ‘Calibration Completed’ from
compass
NMEA out: ‘Start Calibration’ to compass.
To Next Page
