Machine Configuration (continued)
2-12

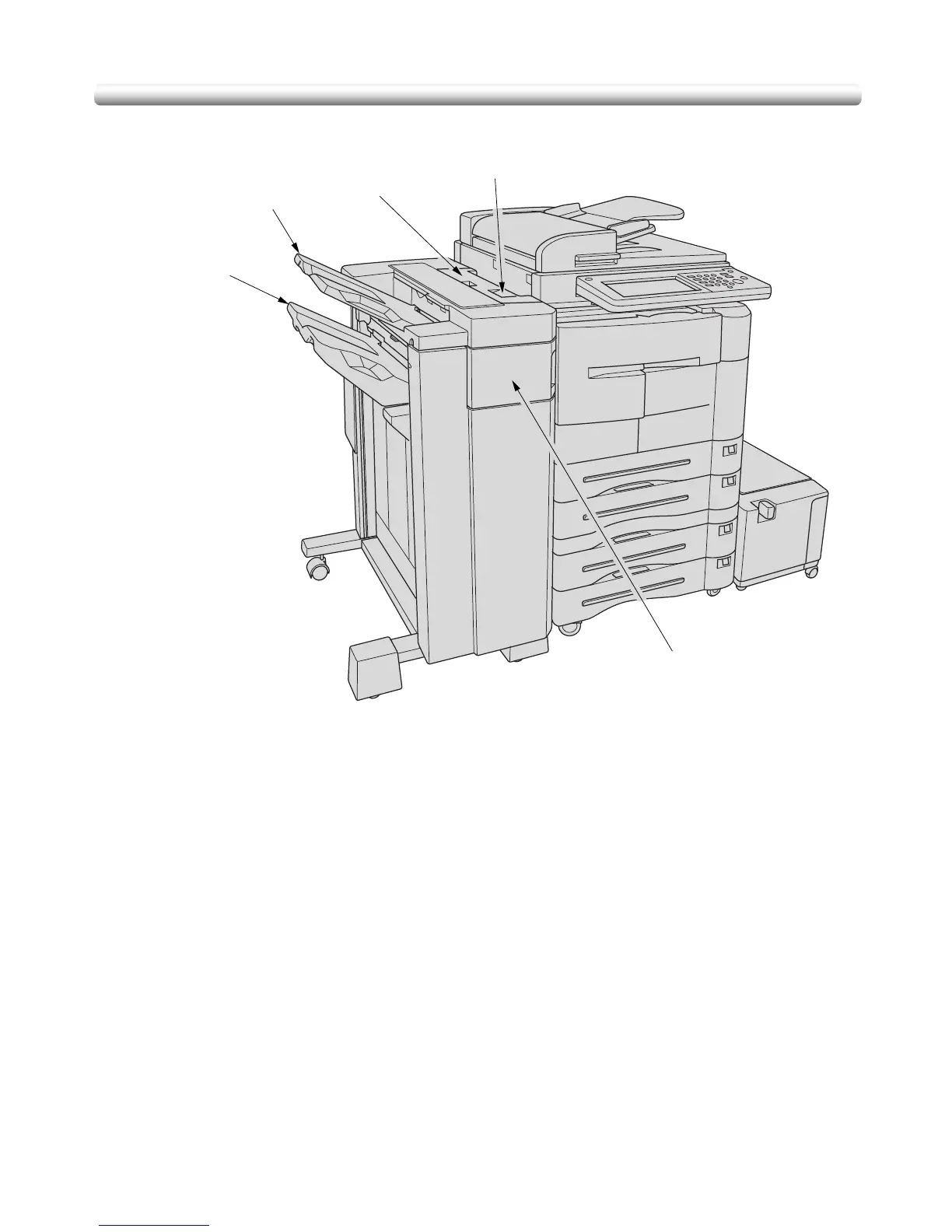

FS-113 Finisher
1 Primary (Main) tray holds sets output in Non-sort, Sort (offset), Staple, Group (offset),
or Punch mode.
2 Secondary (Sub) tray holds sets output in Non-sort mode, or special paper that
cannot be delivered to the primary tray.
3 Top cover opens to allow clearing mishandled paper.
4 Finisher handle withdraws the Finisher to allow removal of mishandled paper and
clearing the trash basket.
5 Finisher door opens to the internal Finisher to allow clearing mishandled paper.
3 Top cover
2 Secondary (Sub) tray
1 Primary (Main) tray
5 Finisher door
4 Finisher handle
