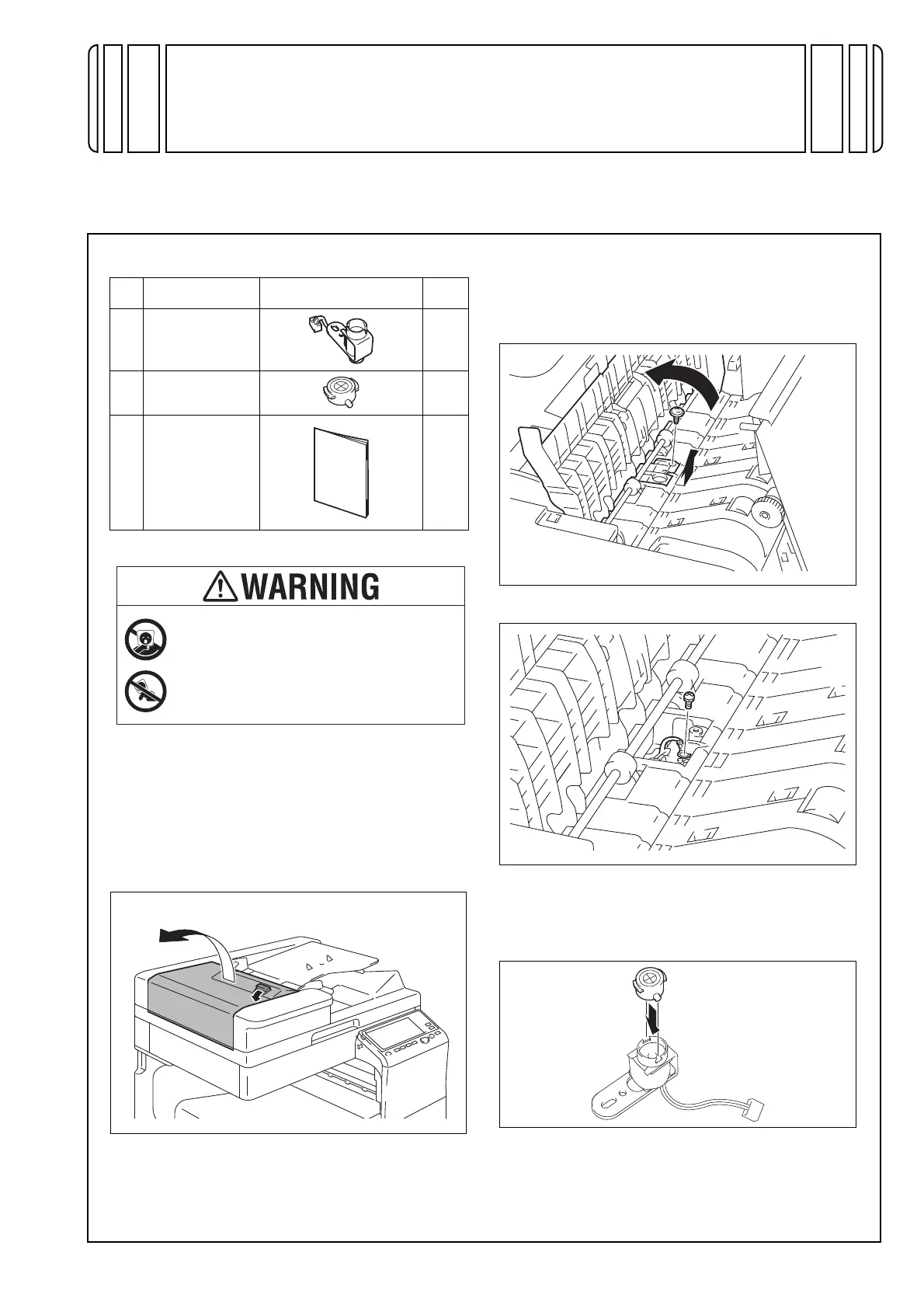

SP-501 Stamp Unit
INSTALLATION MANUAL
1. Accessory parts
2. Installation procedures
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Unlock the top door of the Reverse Automatic
Document Feeder and open the top door.
(3) Open the processing guide.
(4) Remove the guide plate. (One screw)
Note:
To remove the guide plate, slightly move it to the
right as viewed from the front of the machine.
(5) Remove the ground terminal. (One screw)
(6) Mount the stamp in stamp unit.
Note:
Align the round pin of the stamp with the slit in the
stamp unit side.
No. Name Shape Q’ty
1. Stamp unit
1
2. Stamp
1
3. Installation
manual
1 set
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
