4.8 SDVO Connector J9

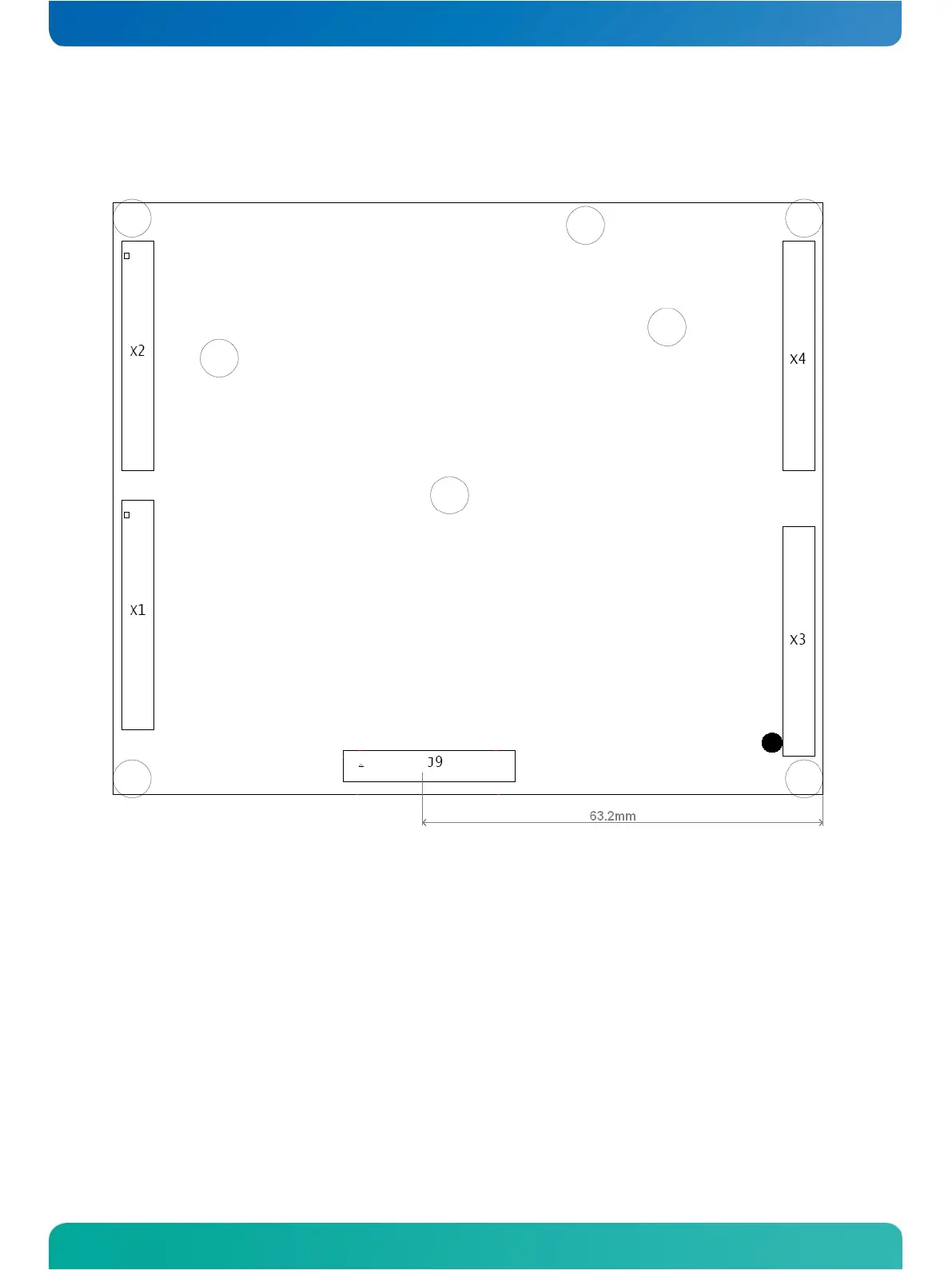

4.8.1 Location of the connector
The feature connector J9 is on the bottom side of the module on the edge.
4.8.2 SDVO Output
The ETX®-DC Serial Digital Video Out port is integrated in the Intel® 945GSE northbridge. It has the following
features:
» Serial Digital Video Out Port (SDVOB only) support
» One 12-bit channel
» The SDVO B port can drive a variety of SDVO devices (TV-Out Encoders, TMDS and LVDS transmitters, etc.)
