148 Part Number STH063 9/17

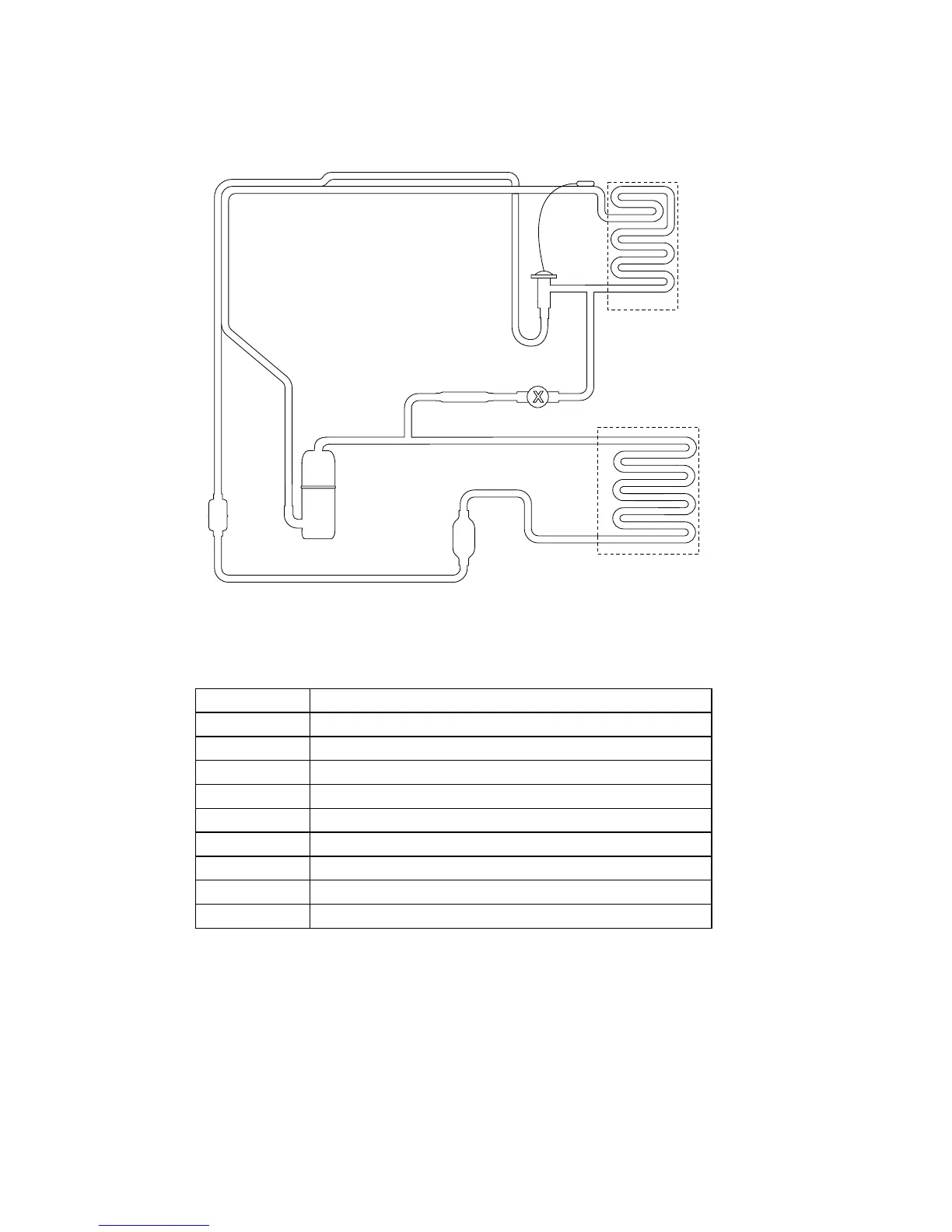

Refrigeration Tubing Schematics
SELF-CONTAINED AIR OR WATER-COOLED
X
1
2
3
4
5
6
7
8
9
Number Component
1 Compressor
2 Condenser - Air or Water Cooled
3 Receiver - Water Cooled Only
4 Liquid Line Filter Drier
5 Heat Exchanger
6 TXV - Thermostatic Expansion Valve
7 Evaporator
8 Strainer
9 Harvest Solenoid Valve
