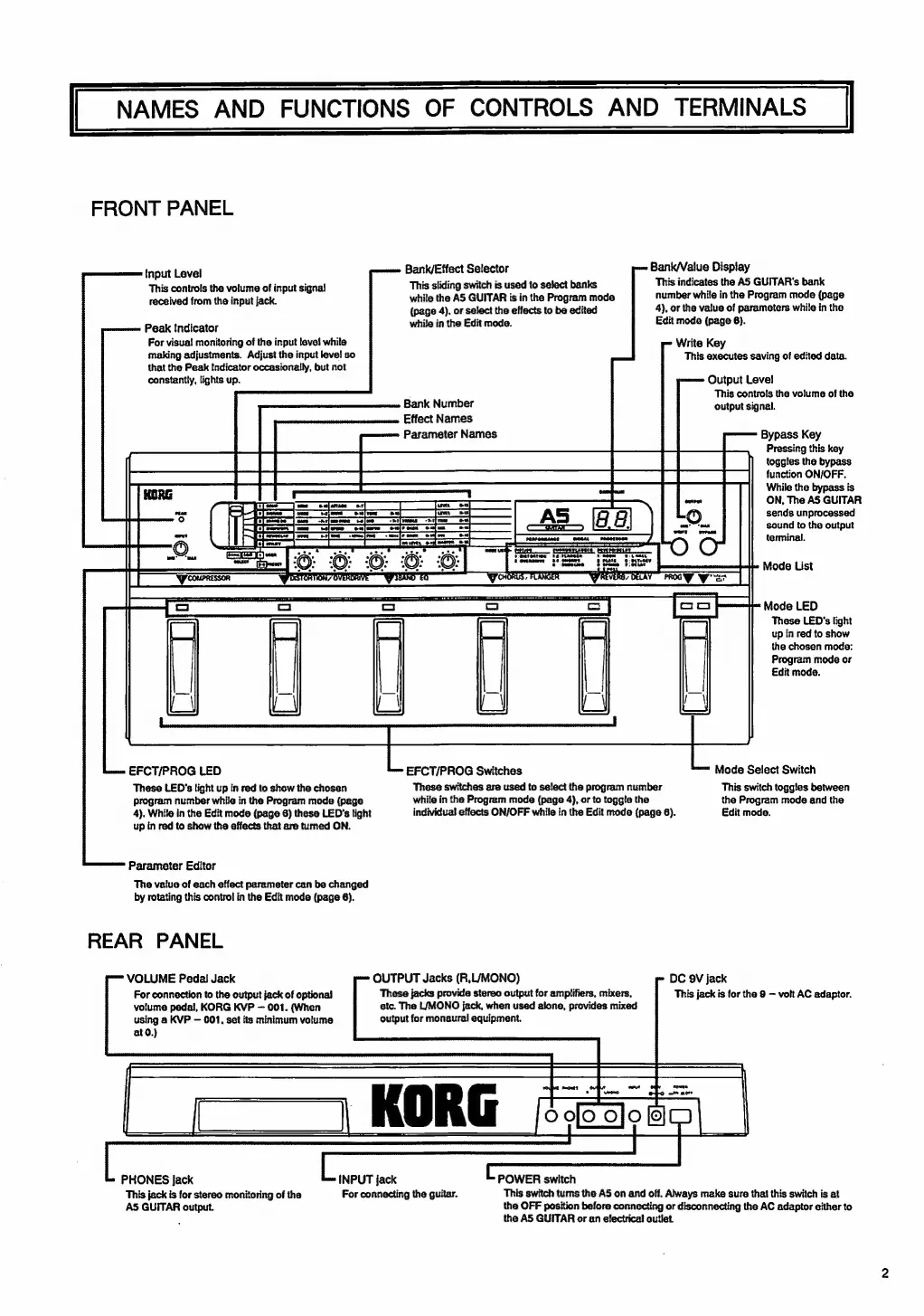

NAMES AND FUNCTIONS OF CONTROLS AND TERMINALS
FRONT PANEL
input Level Bank/Effect Selector Bank/Value Display
This controls the volume of input signal This sliding switch is used to select banks This indicates the AS GUITAR's bank
received
from
the
input
jack.
while
the
A5
GUITAR
iîs
în
the
Program
mode
number
while
in
the
Program
mode
(page
{page 4). or select the effects to be edited 4), or the value of parameters while in the
Peak Indicator while in tre Edit mode. Edit mode (page 6).
For visual monitoring of the input level while Write Key
making adjustments. Adjust the input level so This executes saving of edited data.
that the Peak indicator occasionally, but not
constantly, lights up. Output Level
. This controls the volume of the
Bank Number output signal.
Effect Names
Parameter Names Bypass Key
Pressing this key
toggles the bypass
function ON/OFF.
While the bypass îs
ON, The AS GUITAR
sends unprocessed
sound to the output
terminal.
Siria lircsenta > Fiaioa eroaoo
se ife IU | MOdO List
Mode LED
These LED's light
up în red to show
the chosen mode:
Program mode or
Edit mode.
EFCT/PROG LED EFCT/PROG Switches Mode Select Switch
These LED's light up in red to show the chosen These switches are used to select the program number This switch toggles between
program number while in the Program mode (page while in the Program mode (page 4), or to toggle the the Program mode and the
4). While in the Edit mode (page 6) these LED's light individual effects ON/OFF while in the Edit mode (page 6). Edit mode.
up in red to show the effects that are tumed ON.
Parameter Editor
The value of each effect parameter can be changed
by rotating this control in the Edit mode (page 6).
VOLUME Pedali Jack OUTPUT Jacks (R,L'MONO) DC 9V jack
For connection to the output jack of optional These jacks provide stereo output for amplifiers, mixers, This jack is for the 9 — volt AC adaptor.
volume pedal, KORG KVP — 001. (When etc. The LAMONO jack, when used alone, provides mixed
using a KVP — 001, set its minimum volume output for monaural equipment.
ato.)
fregia I SETTI: 9707 calate iL
|
c__-KORG
;
o
0]o
O
PHONES Jack INPUT jack POWER switch
This jack is for stereo monitoring of the For connecting the guitar. This switch turns the AS on and off. Always make sure that this switch is at
A5 GUITAR output. the OFF position before connecting or disconnecting the AC adaptor either to
a the AS GUITAR or an electrical outlet.
