11
1 [GUITAR IN] jack
A guitar or bass guitar can be plugged in here.
This is an unbalanced 1/4" (6.3 mm) input jack
with 1 M-ohm impedance.
2 [PHONES] jack
A set of headphones can be connected here.
This is a 1/4" stereo phone jack.
This outputs the same signal as the [MONITOR
OUT L/R] jacks.
3 [PHONES LEVEL] knob: 0...10
This knob sets the volume level of the headphones.
The volume will increase in correspondence to the
printed grid.
4 CD-R/RW drive bay
This bay allows installation of a CD-R/RW drive
recommended by Korg, such as the CDRW-2 CD-
R/RW drive option (sold separately). (→p.134)
5 Hard disk cartridge
This cartridge allows installation of a 3.5 inch hard
disk recommended by Korg, such as the HDD-20G
hard disk drive option (sold separately). (→p.134)
The D1600 will not function without an internal
hard disk installed.
6 CD drive cartridge
This cartridge allows connection of a CD-R/RW
drive recommended by Korg (such as the CDRW-2
CD-R/RW drive option (sold separately). (→p.134)
1 [AC] connector
Connect the included power supply cable here.
2 [Main power] switch
This turns the main power on/off. When the [Main
power] switch is turned on, the D1600 will be in
standby mode. In standby mode, you can press the
[POWER] key to turn on the power of the D1600.
While the D1600 is operating, you can use the
[POWER] key to shut down, and then turn the
main power off to turn the power off completely.
To turn off the power, you must first press the
[POWER] key to perform the shutdown opera-
tion. Never turn off the [Main power] switch or
disconnect the power cable until shutdown has
been completed.
If you turn off the [Main power] switch or discon-
nect the power cable before shutdown has been
completed, data and user settings may be lost, or
the hard disk may be damaged.
3 [INPUT 1], [INPUT 2], [INPUT 3], [INPUT 4] jacks
Audio sources such as mic or line (keyboard etc.)
can be connected here.
These are combo-type balanced inputs that com-
bine XLR jacks and 1/4" TRS phone jacks.
Unbalanced phone plugs can also be connected.
+48V phantom power is provided on the XLR jacks
so that you can use condenser mics.
Only one of the input jacks (XLR or 1/4") can be
used at a time.

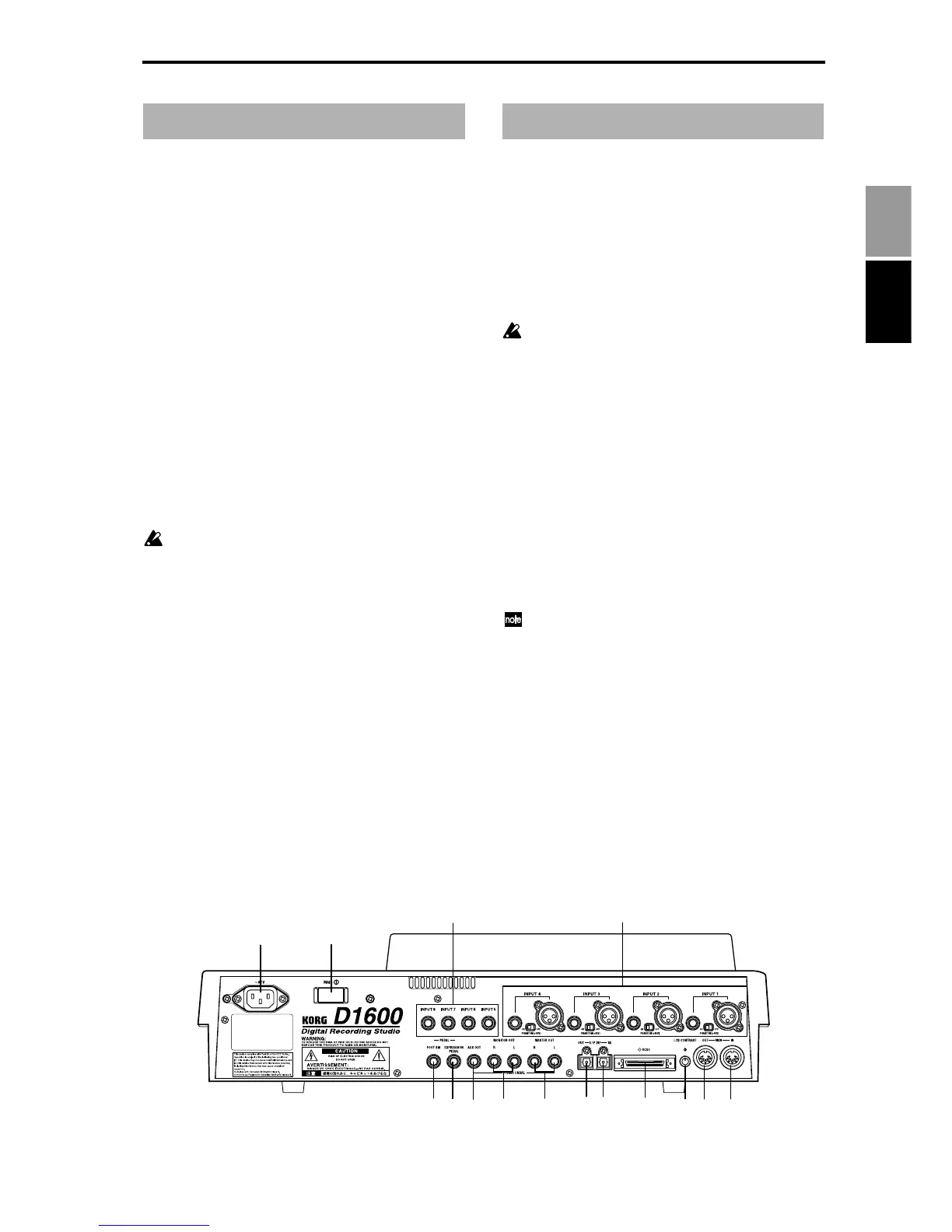

Rear panel
Front panel Rear panel
1
2
34
5101213141511
9876
Introduction
Panel overview of
the D1600
