Korg EX-800 Owner's Manual

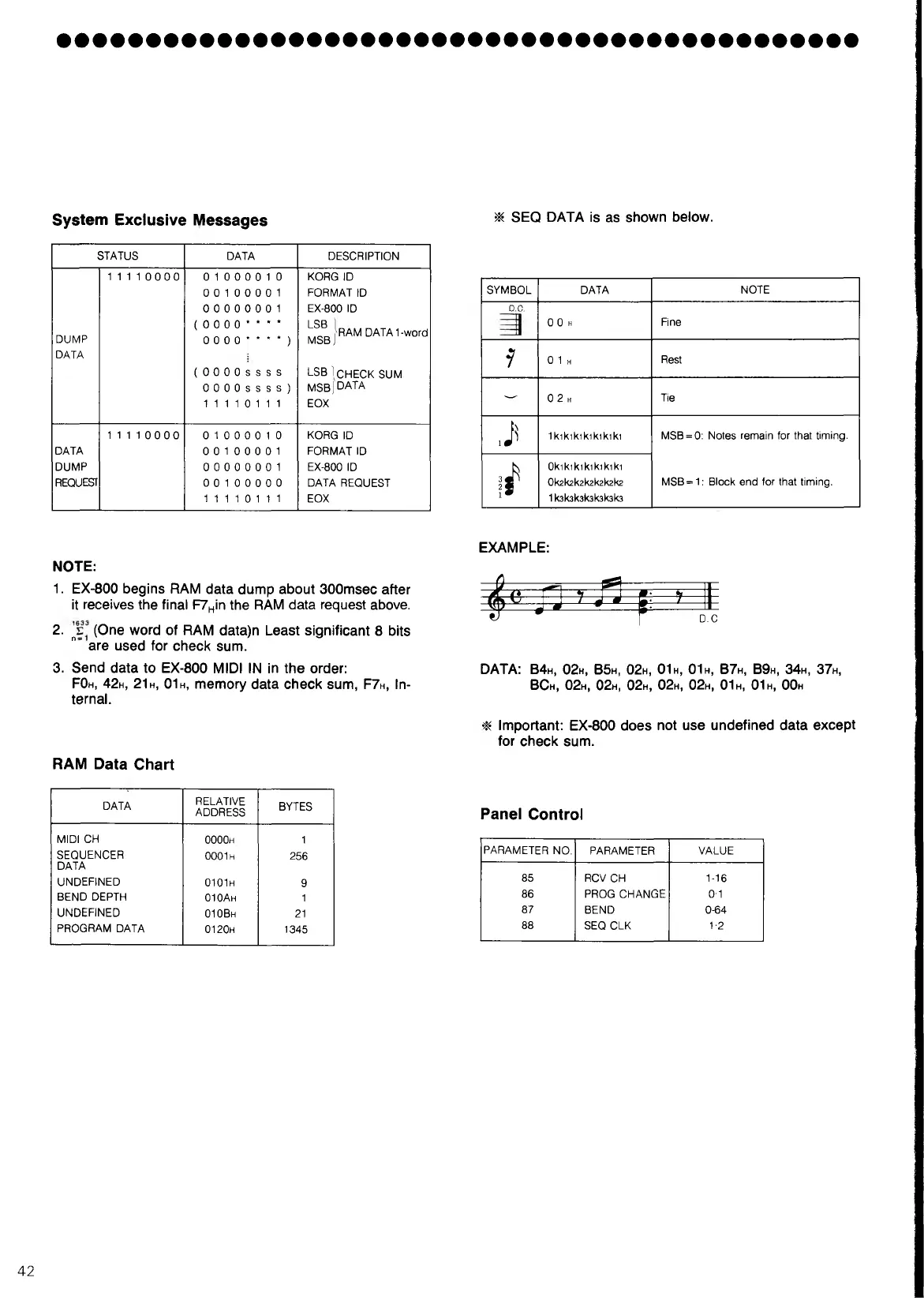

System Exclusive Messages
^ SEQ DATA is as shown below.
STATUS DATA
DESCRIPTION
DUMP
DATA
11110000 0 10 0 0 0 10
0 0 10 0 0 0 1
0 0 0 0 0 0 0 1
(0000****
0 0 0 0****)
(OOOOssss
OOOOssss)
11110 111
KORG ID
FORMAT ID
EX-800 ID
^ RAM DATA 1-word
MSBj
LSB l CHECK SUM
MSB) DATA
EOX
DATA
DUMP
REQUEST
11110000 0 10 0 0 0 10
0 0 10 0 0 0 1
0 0 0 0 0 0 0 1
0 0 10 0 0 0 0
11110 111
KORG ID
FORMAT ID
EX-800 ID
DATA REQUEST
EOX
SYMBOL DATA
NOTE
D.C.
0 0 H
Fine
7
0 1 H
Rest
—
02 »
Tie
,j>
1 kikikikikikiki MSB = 0: Notes remain for that timing.
MSB = 1: Block end tor that timing.
i f
Okikikikikikiki
0k2k2k2k2k2k2k2
1 k3k3k3k3k3k3lo
NOTE:
1. EX-800 begins RAM data dump about 300msec after
it receives the final F7Hin the RAM data request above.
2. (One word of RAM data)n Least significant 8 bits
"* are used for check sum.
3. Send data to EX-800 MIDI IN in the order:
FOh, 42h, 21 h , 01 h, memory data check sum, F7h, In
ternal.
RAM Data Chart
EXAMPLE:
f a > n ^
DATA: B4h, 0 2 h , B5h, 0 2 h , 0 1 h, 0 1 h, B7h, B9h, 3 4 h , 3 7 h ,
BCh, 0 2 h , 0 2 h , 0 2 h , 0 2 h , 0 2 h , 0 1 h , 0 1 h, 00h
■Z- Important: EX-800 does not use undefined data except
for check sum.
DATA
RELATIVE
ADDRESS
BYTES
MIDI CH
0000h 1
SEQUENCER
DATA
0001 h
256
UNDEFINED
0101H
9
BEND DEPTH
010Ah
1
UNDEFINED
010Bh 21
PROGRAM DATA
0120h
1345
Panel Control
PARAMETER NO.
PARAMETER VALUE
85
RCV CH 1-16
86 PROG CHANGE
0-1
87
BEND 0-64
88
SEQ CLK
1-2
42
