Korg Pa5X Performance Guide

12| Let’sstart!

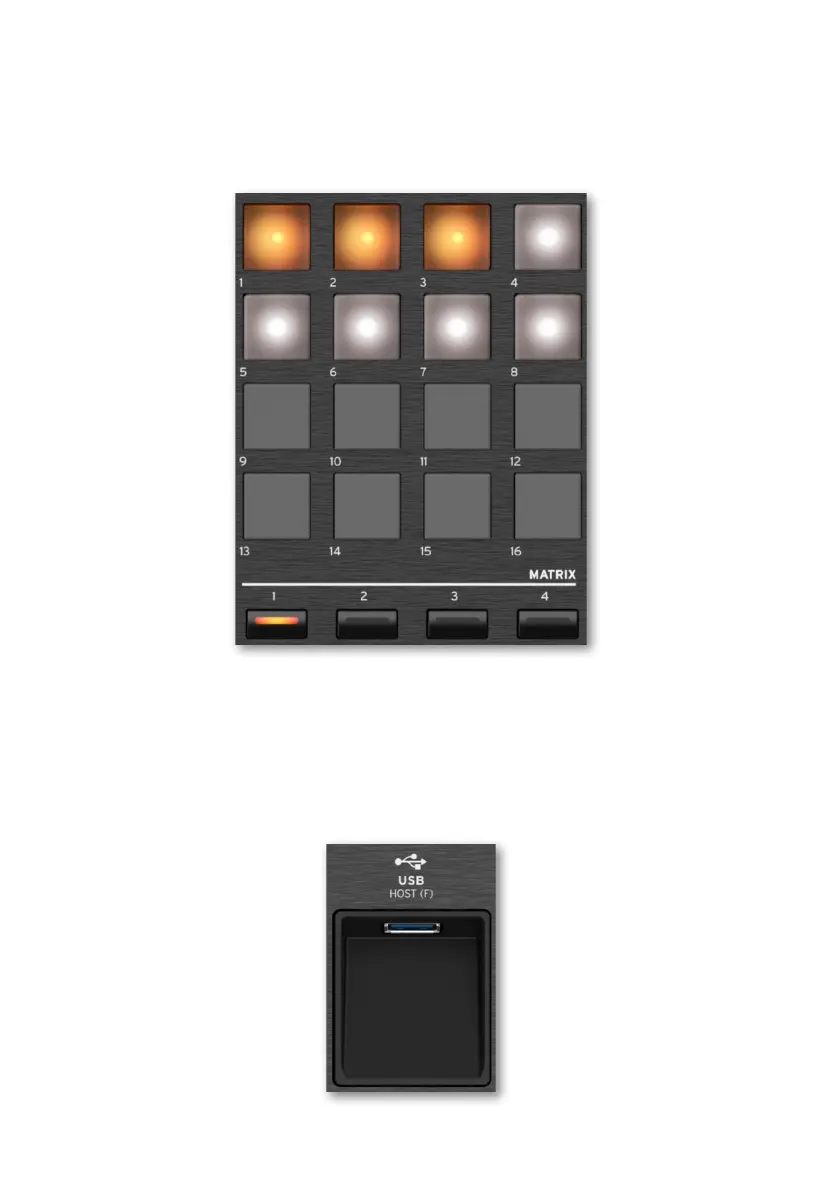

The Matrix
You can use this programmable matrix of big, easy accessible keys to trigger ele-
ments and functions. (See The Matrix on page 293).
USB connector
Use this socket to connect an USB memory device, like an USB pendrive, or other
musical instruments to be used as controllers. You can also use it to attach a small
USB lamp and illuminate the control panel or the music stand. Please note that
two other ports are on the back of the instrument.

Korg Pa5X Specifications

General

Type	Arranger Keyboard
Keys	61 or 76
Aftertouch	Yes
Polyphony	160 voices
Key Action	Semi-weighted
Sound Engine	EDS-XP
Drum Kits	More than 130 Drum Kits
User Memory	4GB PCM
Styles	Over 600
Display	8-inch color TouchView display
Sequencer	16-track MIDI sequencer
Audio Inputs	2 x Mic/Line (XLR/TRS combo), Guitar (TS)
Headphones	1 x 1/4"
MIDI	In/Out/Thru
USB	Type A and B
Storage	MicroSD slot
Speakers	Optional
Weight	Varies by model
