Korg Pa5X Performance Guide

20| Let’sstart!
Connecting the audio
outputs
Connecting the headphones
Connect a pair of headphones to the PHONES connector. You can use headphones
with an impedance of 16-200 Ohms (50 Ohms suggested). When connecting the
headphones, the PaAS speakers are automatically deactivated.
Adjust the output level with the MASTER VOLUME slider.
Connecting the line audio outputs
Use the AUDIO OUTPUT connectors to send the audio output to a mixer, a set of
powered monitors, or an audio amplication system. These are balanced/unbal-
anced (TRS) 6.35 mm, or 1/4”, jack connectors. (Please note that balanced con-
nectors and cables are also called stereo, while the unbalanced ones are called
mono).
Where possible, use all balanced connections, to reduce the risk of noise (hum)
occurring in the audio signal.

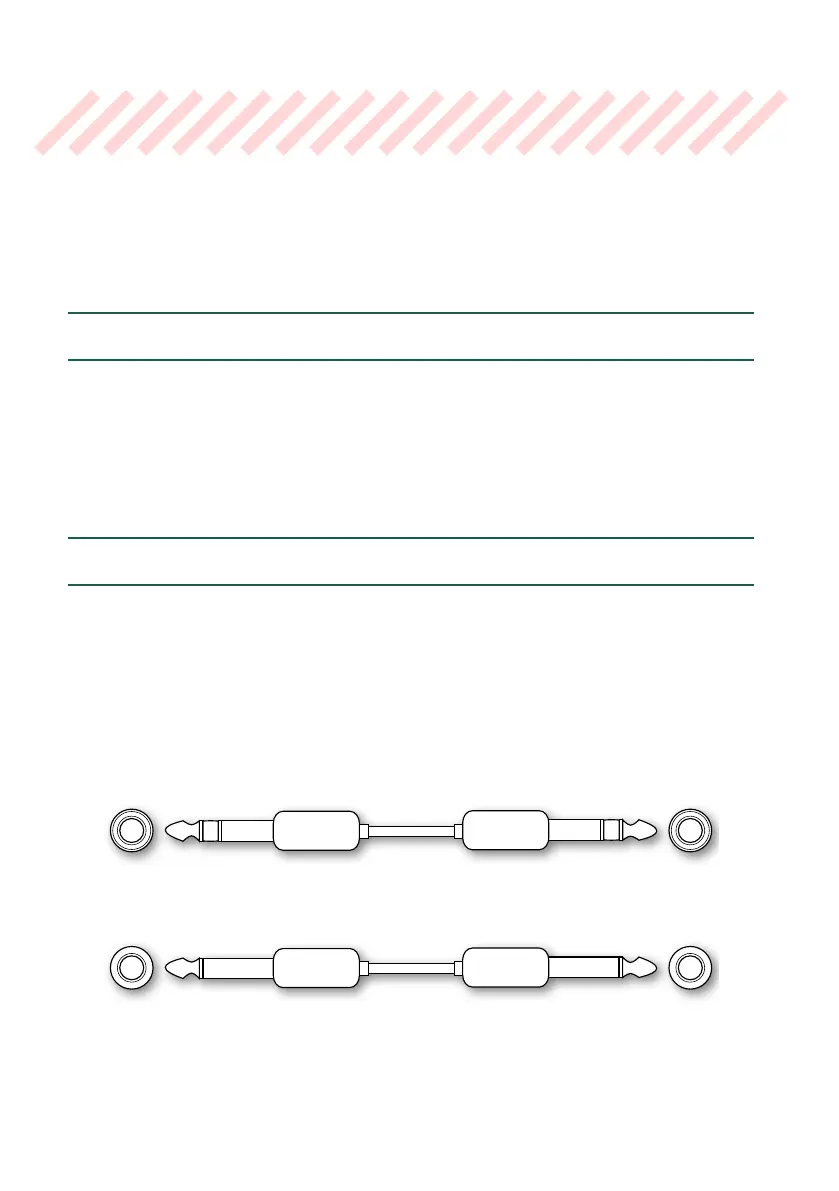

Pa5X’s AUDIO OUT
(2 x 6.35 mm / 1/4” balanced jacks)
Mixer’s/Amplication’s LINE IN
(2 x 6.35 mm / 1/4” balanced jacks)
Pa5X’s AUDIO OUT
(2 x 6.35 mm / 1/4” unbalanced jacks)
Mixer’s/Amplication’s LINE IN
(2 x 6.35 mm / 1/4” unbalanced jacks)

Korg Pa5X Specifications

General

Type	Arranger Keyboard
Keys	61 or 76
Aftertouch	Yes
Polyphony	160 voices
Key Action	Semi-weighted
Sound Engine	EDS-XP
Drum Kits	More than 130 Drum Kits
User Memory	4GB PCM
Styles	Over 600
Display	8-inch color TouchView display
Sequencer	16-track MIDI sequencer
Audio Inputs	2 x Mic/Line (XLR/TRS combo), Guitar (TS)
Headphones	1 x 1/4"
MIDI	In/Out/Thru
USB	Type A and B
Storage	MicroSD slot
Speakers	Optional
Weight	Varies by model
