Connectingtheaudiooutputs |21
When using a home audio amplier, connect the other end of the cable to the CD,
LINE IN or TAPE/AUX input of your audio system. Don’t use the PHONO inputs of
your audio system!

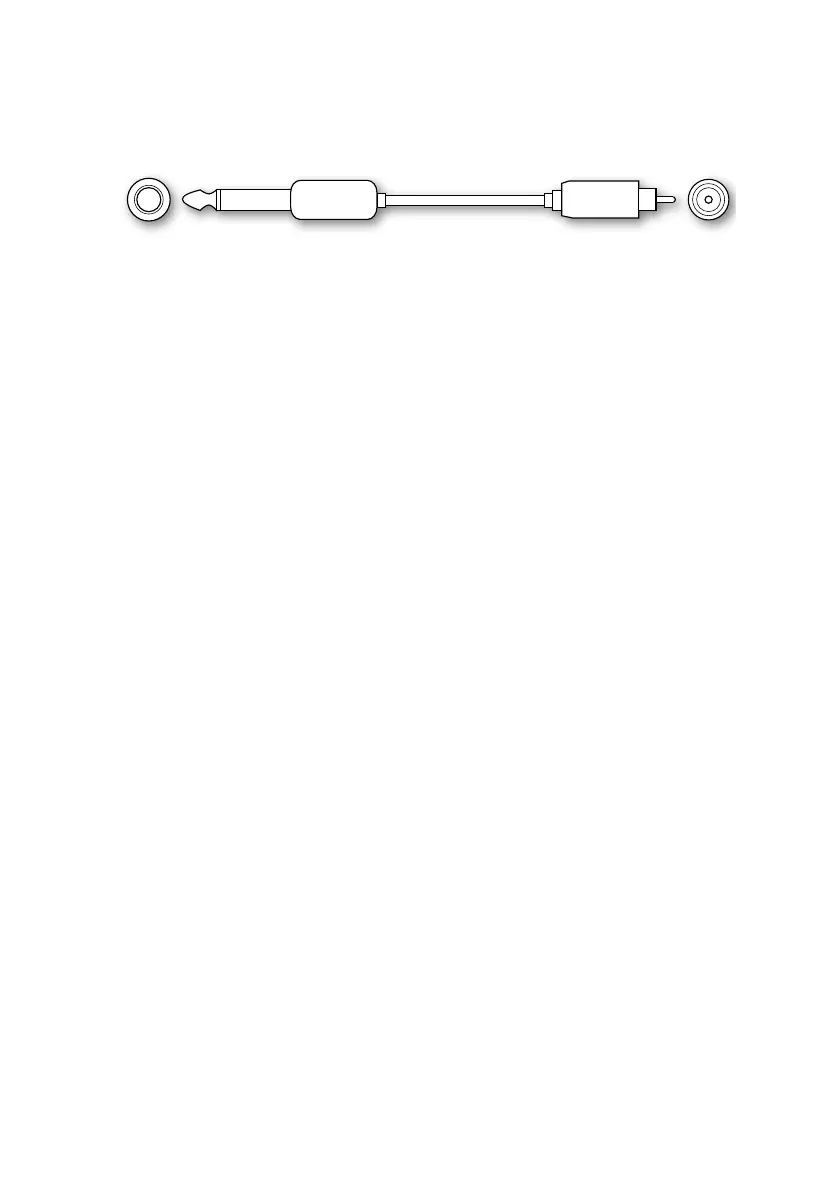

Pa5X’s AUDIO OUT
(2 x 6.35 mm / 1/4” unbalanced jacks)
Home amplication systems’s LINE/AUX IN
(2 x RCA connectors)
> Use the LEFT and RIGHT connectors as the main stereo outputs. Connect
either of them to output a mono signal. Adjust the output level with the MASTER
VOLUME slider.
> Use the 1-4 connectors as separate sub-outputs. These can be used as stereo
sub-mixes, or as individual outputs, to process and mix individual sounds with
an external mixer or amplication system. The sounds are sent to these outputs
with the Insert FXs applied. Master FX and the MaxxAudio are deactivated. The
MASTER VOLUME is not applied to these outputs. The X-FADER changes the bal-
ance between the Players on these outputs. Adjust their volume with the mixer’s
or external speaker’s level controls.
If installed, the (optional) PaAS amplication system will work in parallel with the
main audio outputs.

Korg Pa5X Specifications

General

Type	Arranger Keyboard
Keys	61 or 76
Aftertouch	Yes
Polyphony	160 voices
Key Action	Semi-weighted
Sound Engine	EDS-XP
Drum Kits	More than 130 Drum Kits
User Memory	4GB PCM
Styles	Over 600
Display	8-inch color TouchView display
Sequencer	16-track MIDI sequencer
Audio Inputs	2 x Mic/Line (XLR/TRS combo), Guitar (TS)
Headphones	1 x 1/4"
MIDI	In/Out/Thru
USB	Type A and B
Storage	MicroSD slot
Speakers	Optional
Weight	Varies by model
