Korg Poetry - Assembling the Stand; Assembly Precautions; Assembly Procedure

4
Assembling the Stand
Warning
At least one other person must help you assemble the stand.
Caution during assembly
Make sure that you have the correct part in the correct ori-
entation, and perform the assembly in the order given.
Other cautions
• Loosened screws
The screws may loosen as time passes after assembly.
You should periodically check whether any screws have
become loose. If you feel that the stand vibrates exces-
sively, it is possible that screws have come loose. If so,
re-tighten them.
• Moving the digital piano to another location
To move the assembled stand, remove the AC adapter
cord from the stand, close the key cover, and then move
it slowly with at least two people, keeping it as level as
possible.
• Disassembly
If you need to disassemble the stand, do so by reversing
the steps of the assembly procedure. After disassembly,
keep the screws and other parts in a safe place so that
they are not lost.

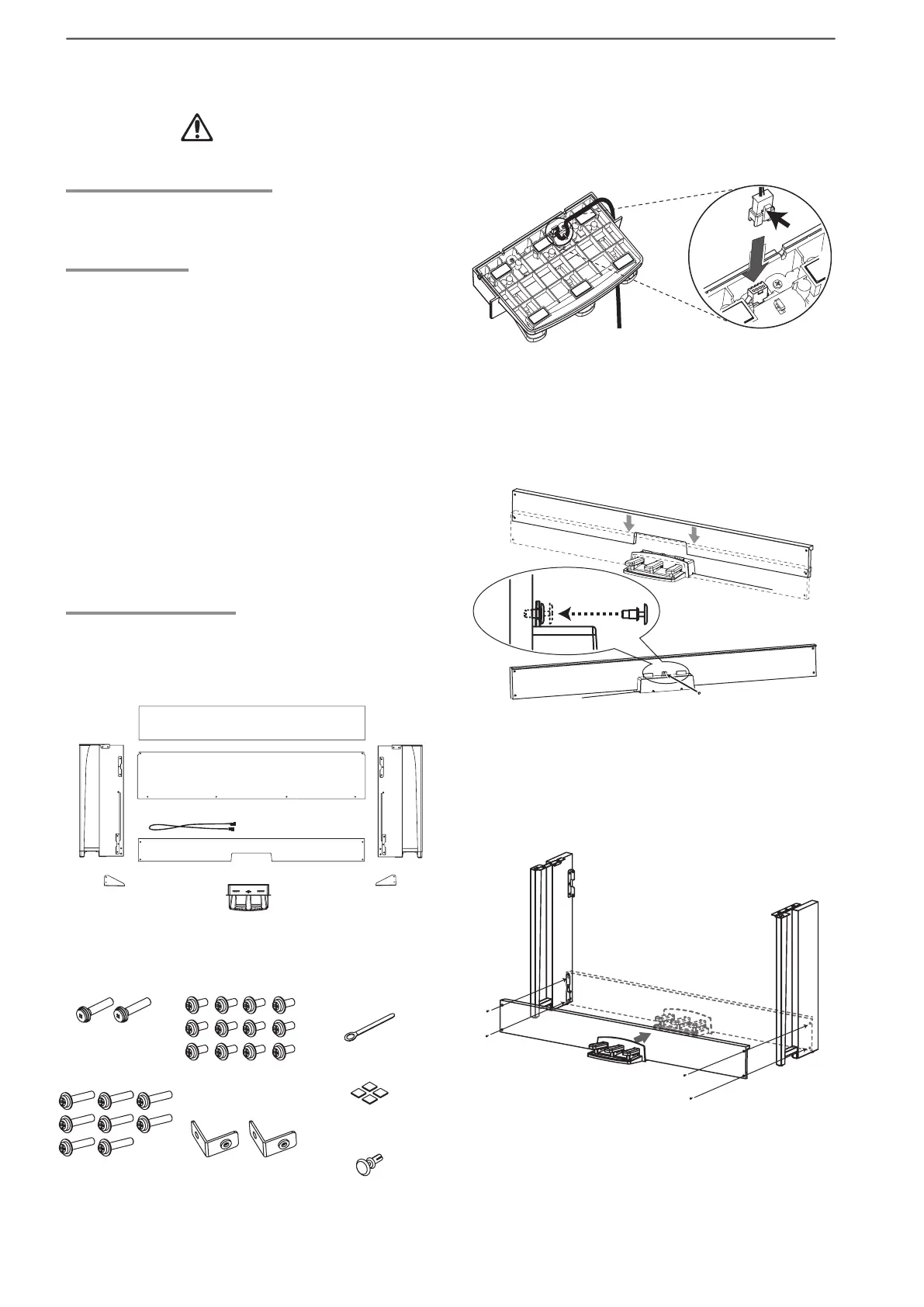

Assembly procedure
You’ll need a Phillips (+) screwdriver.
1. Make sure that all of the following parts are available.
Anti-tipping Bracket
(left)
Anti-tipping Bracket
(right)
Pedal unit
Pedal board
Speaker box
Side panel
(right)
Side panel
(left)
Pedal cord
Rear Panel
Screws (M6)
x 2 pcs.
Push rivet x 1 pc.
Cord holder
x 1 pc.
Stabilizing felt x 4 pcs
.
Brackets x 2 pcs
Screws (M4, short)
x 12 pcs.
Screws (M4, long)
x 8 pcs.
2. Connect the aached pedal cord, observing the cor-
rect orientation, to the connector on the reverse side
of the pedal unit, and then engage it with a slot in the
pedal unit.
Thepedalcordcanbeaachedtoordetachedfromthe
connector with its locking tab held down.
3. Insert the pedal unit into the pedal board, and then
fasten it by pressing a push rivet into the hole (above
the cutout) at the rear of the pedal board.
After pressing the push rivet into the hole, lift the pedal
board to check that the pedal unit do not drop. The push
rivet will prevent the pedal unit from falling out. Oth-
erwise, it will not be fully fastened to the pedal board.
4. Using four screws (M4, long), temporarily fasten
the pedal board (with the pedal unit aached) to the
brackets at the boom of the inside of the left and
right side panels.
* To temporarily tighten the screws is to tighten them
leaving a clearance of about 2 mm.
Locking
tab
Locking
tab
Front
Push
Front of pedal board
Front of pedal board
Rear of pedal board
Rear of pedal board
Rear
Push rivet
Side panel (right)
Side panel (left)
Screws
(M4, long)
Screws (M4, long)
