Effect
229

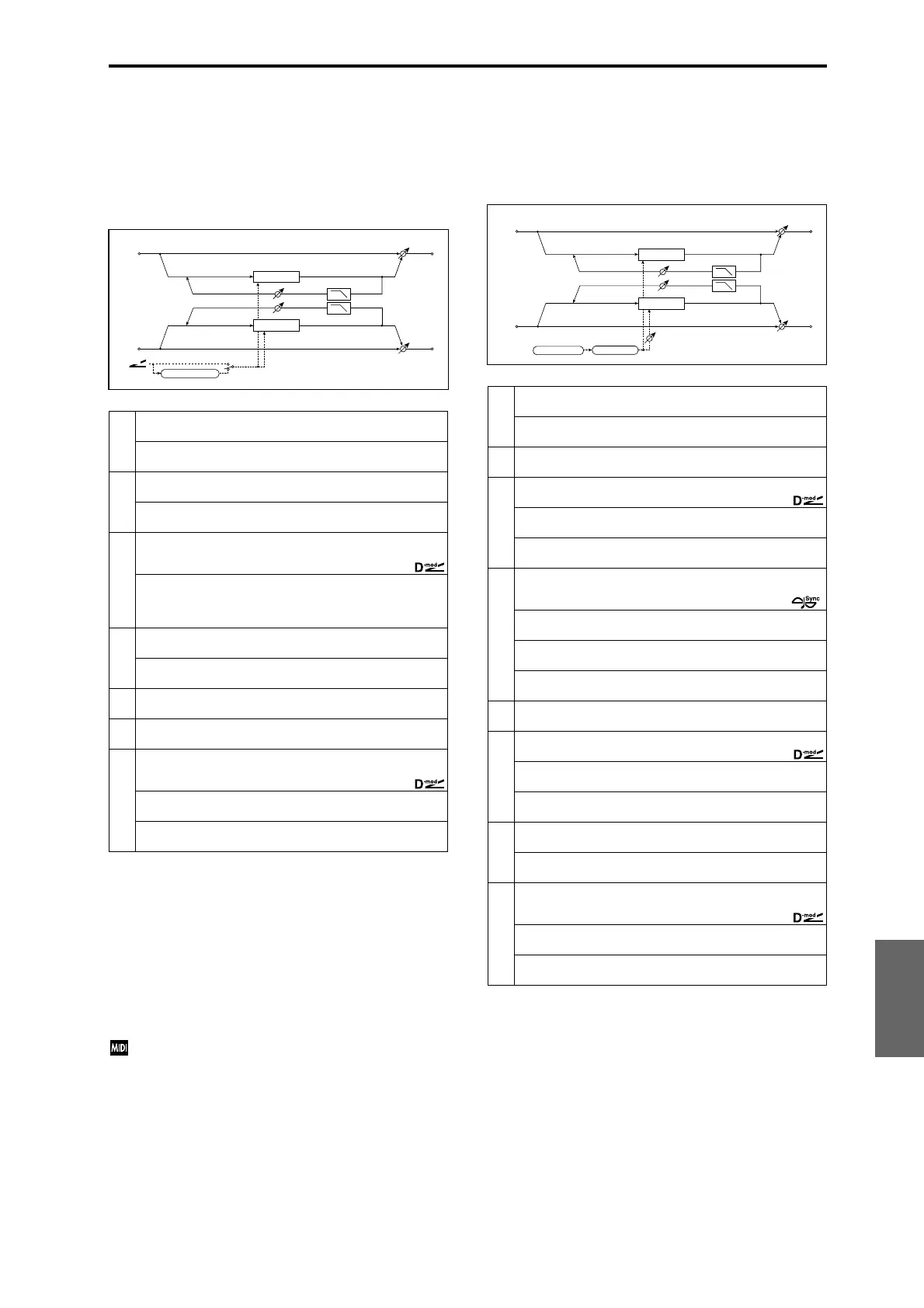

022: St. Env. Flanger
(Stereo Envelope Flanger)
This Flanger uses an envelope generator for modulation. You
will obtain the same pattern of flanging each time you play.
You can also control the Flanger directly using the modula-
tion source.
c: Sweep Mode, c: Src
This parameter switches the flanger control mode. With “Sweep
Mode” = EG, the flanger will sweep using the envelope generator.
This envelope generator is included in the envelope flanger, and
not related to the Pitch EG, Filter EG, or Amp EG.
The “Src” parameter selects the source that starts the envelope
generator. If you select, for example, Gate, the envelope generator
will start when the note-on message is received.
When “Sweep Mode” = D-mod, the modulation source can con-
trol the flanger directly. Select the modulation source using the
“Src” parameter.
The effect is off when a value for the modulation source
specified for the “Src” parameter is smaller than 64, and the
effect is on when the value is 64 or higher. The Envelope
Generator is triggered when the value changes from 63 or
smaller to 64 or higher.
d: EG Attack, d: EG Decay
Attack and Decay speed are the only adjustable parameters on
this EG.
023: Stereo Phaser
This effect creates a swell by shifting the phase. It is very
effective on electric piano sounds. You can add spread to the
sound by offsetting the phase of the left and right LFOs from
each other.
g: Resonance, h: Wet/Dry
The peak shape of the positive and negative Feedback value is dif-
ferent. The harmonics will be emphasized when the effect sound
is mixed with the dry sound, if you set a positive value for both
“Resonance” and “Wet/Dry”, and if you set a negative value for
both “Resonance” and “Wet/Dry”.
g: High Damp [%]
This parameter sets the amount of damping of the resonance in
the high range. Increasing the value will cut high-range harmon-
ics.
a
L Dly Bottom [msec] (L Delay Bottom) 0.0...50.0msec
Sets the lower limit of the delay time on the left channel
☞ Fx:009
L Dly Top [msec] (L Delay Top) 0.0...50.0msec
Sets the upper limit of the delay time on the left channel
☞ Fx:009
b
R Dly Bottom [msec] (R Delay Bottom) 0.0...50.0msec
Sets the lower limit of the delay time on the right channel
☞ Fx:009
R Dly Top [msec] (R Delay Top) 0.0...50.0msec
Sets the upper limit of the delay time on the right channel
☞ Fx:009
c
Sweep Mode EG, D-mod
Determines whether the flanger is controlled by the envelope gener-
ator or by the modulation source
☞,
Src Off...Tempo
Selects the modulation source that triggers the EG (when EG is
selected for Sweep Mode), or modulation source that causes the
flanger to sweep (when D-mod is selected for Sweep Mode)
☞
d
EG Attack
Sets the EG attack speed
1...100
☞
EG Decay
Sets the EG decay speed
1...100
☞
e
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
f
High Damp [%] 0...100%
Sets the feedback damping amount in the high range
☞ Fx:020
g
Wet/Dry –Wet...–1:99, Dry, 1:99...Wet
Sets the balance between the effect and dry sounds
☞010, 020,
Src Off...Tempo
Selects the modulation source of the effect balance
Amt
Sets the modulation amount of the effect balance
–100...+100
EG Attack/Decay
EG
D-mod
Sweep Mode
D
-mod
Flanger
Flanger
Left
Right
Feedback
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
a
LFO Waveform
Selects LFO Waveform
Tr iangle, Sine
LFO Shape –100...+100
Determines how much the LFO waveform is changed
☞ Fx:020
b
LFO Phase [degree] –180...+180
Sets the LFO phase difference between the left and right
☞ Fx:010
c
LFO Frequency [Hz] 0.02...20.00Hz
Sets the LFO speed
☞ Fx:009,
Src
Selects the modulation source of LFO speed
Off...Tempo
Amt –20.00...+20.00Hz
Sets the modulation amount of LFO speed
d
BPM/MIDI Sync Off, On
Switches between using the frequency of the LFO speed and using
the tempo and notes
☞ Fx:009,
BPM MIDI, 40...240
Selects MIDI Clock and assigns tempo
☞ Fx:009
Base Note
Selects the type of notes that specify the LFO speed ☞ Fx:009
Times x1...x16
Sets the number of notes that specify the LFO speed
☞ Fx:009
e
Manual
Sets the frequency to which the effect is applied
0...100
f
Depth
Sets the depth of LFO modulation
0...100
Src Off...Tempo
Selects the modulation source for the LFO modulation depth
Amt –100...+100
Sets the modulation amount of the LFO modulation depth
g
Resonance
Sets the resonance amount
–100...+100
☞
High Damp [%] 0...100%
Sets the resonance damping amount in the high range
☞
h
Wet/Dry –Wet...–1:99, Dry, 1:99...Wet
Sets the balance between the effect and dry sounds
☞ Fx:010,
Src Off...Tempo
Selects the modulation source of the effect balance
Amt
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Resonance
LFO Shape
LFO Phase
LFO: Tri / Sine
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
Phaser
Phaser
