Page 10
(although this installation is permitted, a 3’ (1
m) vertical rise is strongly recommended)
4. Location of the Heater
Before proceeding with the installation, the following sections should be reviewed:
Section 4: Location of the Heater
Section 5: Typical Installation Configurations
Section 6: Venting System
When selecting a location for your new heater consider the following:
a. Clearance to combustibles. d. Power within 5 feet (1.5 m).
b. Sufficient room to service the unit. e. Access for exhaust venting.
c. Access for outside combustion air. f. EVL not exceeding 25 ft. (7.6 m).
d. NOT approved for bedroom installations See Exhaust Vent Requirements.

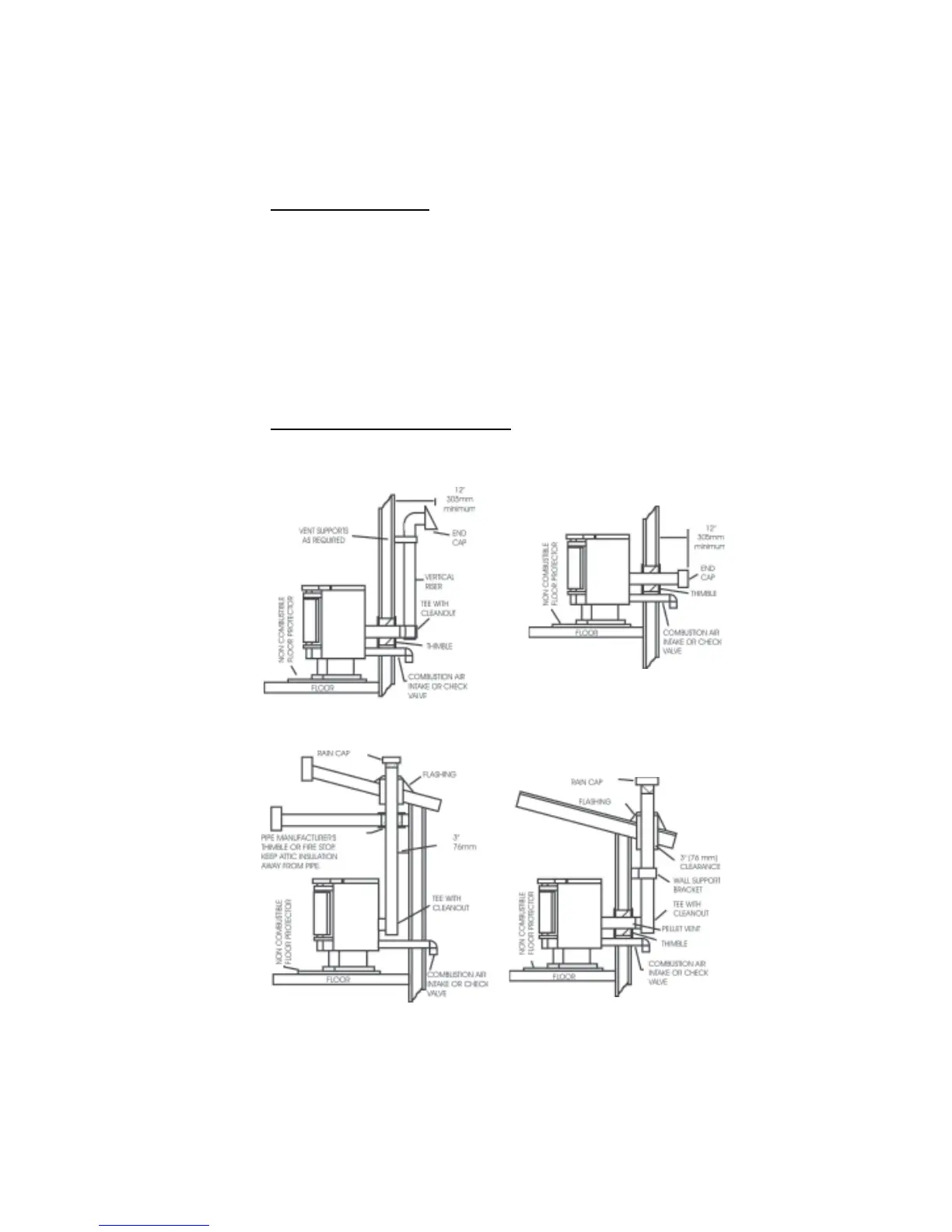

5. Typical Installation Configurations
The following figures describe some typical installations. Variations of these are possible.
Common sense, safety and compliance with local codes must be respected in any
variation.
Figure 9. Free standing through the wall
and the roof installation
Figure 8. Free standing through the roof
installation
Figure 6. Free standing through the wall
and up installation
Figure 7 Free standing through the wall
installation
