15 Accessories

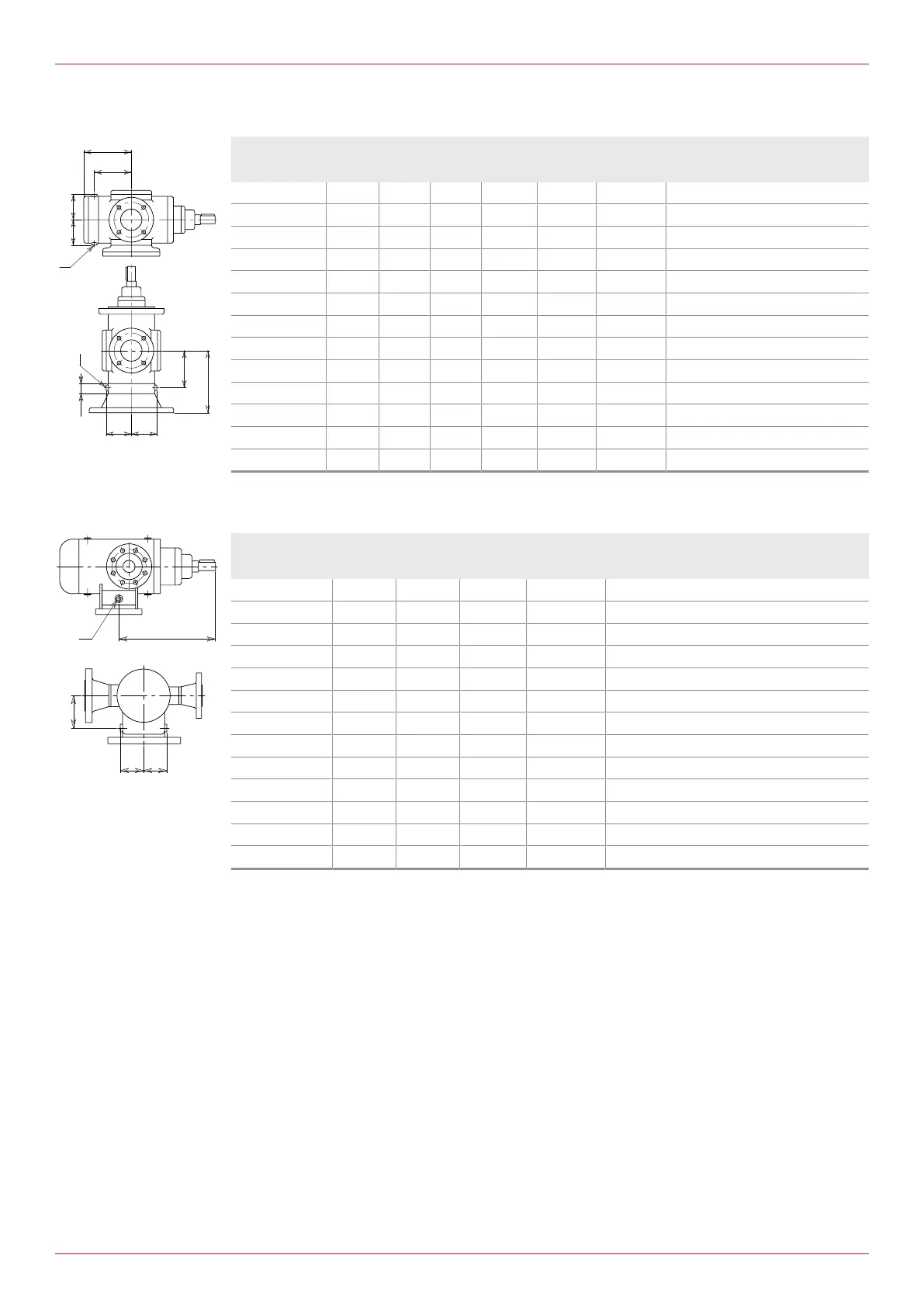

15.1 Heating
Pump with outer housing GJS
L1
L3
R
R
L1
L3
H1
H1
L4
H1
H1
Size Dimensions [mm] Steam amount [kg/h]
L1 L2 L3 L4 H1 R
15–26 192 161 119 50 57 R 1/4" 1
32–42 205 195 145 45 67 R 1/4" 2
55–85 234 216 166 45 80 R 1/4" 2
105–118 250 245 190 45 94 R 1/4" 3
160–210 275 280 225 45 104 R 1/4" 3
235–275 410 308 237 60 112 R 3/8" 4
370–450 410 331 265 60 124 R 3/8" 4
550–880 410 381 315 60 136 R 3/8" 5
851–951 435 412 335 65 148 R 3/8" 5
1101–1301 515 461 401 65 155 R 3/8" 7
1501–1701 531 495 432 65 173 R 3/8" 8
2250 – – – – – – –
2850–3550 – – – – – – –
Tab.14: Dimensions and steam amount - outer housing GJS
Pump with outer housing steel
L1 L1
L2
R
H1
Size Dimensions [mm] Steam amount [kg/h]
L1 L2 H1 R
15–26 60 230 75 R 1/4" 1
32–42 60 230 75 R 1/4" 2
55–85 60 275 90 R 1/4" 2
105–118 70 315 120 R 1/2" 3
160–210 70 350 104 R 1/2" 3
235–275 70 395 130 R 1/2" 4
370–450 90 440 135 R 1/2" 4
550–880 90 490 175 R 1/2" 5
851–951 100 550 155 R 3/4" 5
1101–1301 120 560 165 R 3/4" 7
1501–1701 120 589 194 R 3/4" 8
2250 – – – – –
2850–3550 – – – – –
Tab.15: Dimensions and steam amount - outer housing steel
