16 Spare parts
16.1 Overview of CLE15–660, CLE880 (inner bearing)
16 Spare parts
16.1 Overview of CLE15–660, CLE880 (inner bearing)
661.2
739.2
131
1037
739.1
222.2
859.2
074
915.2
859.3
428**
042
817
222.1
056.3
056.2
869
745.1
735*
915.1
866
134
165
859.1°
746
745.2
661.1
869.2
457
457
454
745.1
054
056.1
056.1
056.3
869.2

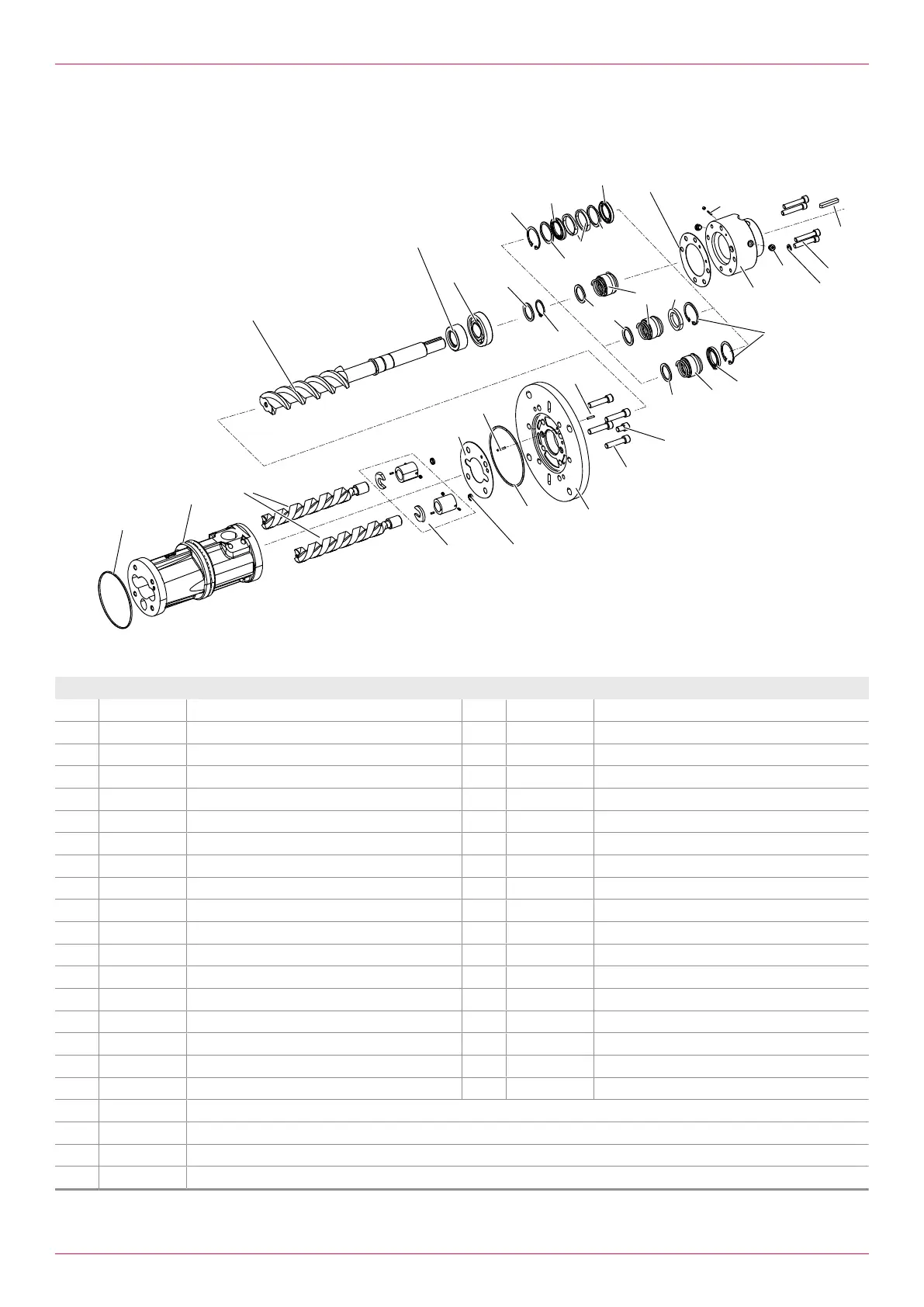

Fig.17: Spare parts CLE15–660, CLE880
Qty. Item No. Part Qty. Item No. Part
1 042 Balancing cylinder 1 739.1 O-ring
2 054 Distance ring 1 739.2 O-ring
2 056.1 Supporting ring 2 745.1 Radial shaft seal ring
1 056.2 Supporting ring 1 745.2 Radial shaft seal ring
1 056.3 Supporting ring 1 746 Throttle ring
1 074 Flange cover 1 817 Ball bearing
1 131 Cartridge housing 1 859.1° Adapter sleeve
1 134 Seal housing 1 859.2 Adapter sleeve
2 165 Screw plug 1 859.3 Adapter sleeve
1 222.1 Flat gasket 1 866 Feather key
1 222.2 Flat gasket 1 869 Circlip
1 428** Counter-pressure valve 1 869.2 Circlip
2 454 Edge sealing ring 4 915.1 Socket screw
1 457 Mechanical seal 4 915.2*** Socket screw
1 661 Screw set 1 1037 Bearing bush set
1 735* Copper seal
1 Silicone grease 1g
* Only for Size15–26
** Only pumps with inlet pressure under the ambient pressure, only pumps with mechanical seal
*** Only for Size 55–660,880
° Only for mechanical seal
Tab.16: Spare parts CLE15–660, CLE880
