10 Operation
10.3 During operation
Observe the permissible operational limits of the pump station and the pumps when setting the
supplied mass flow and its temperature, Ä Technical data,Page9 and associated operating in-
structions of the pumps.
10.3 During operation

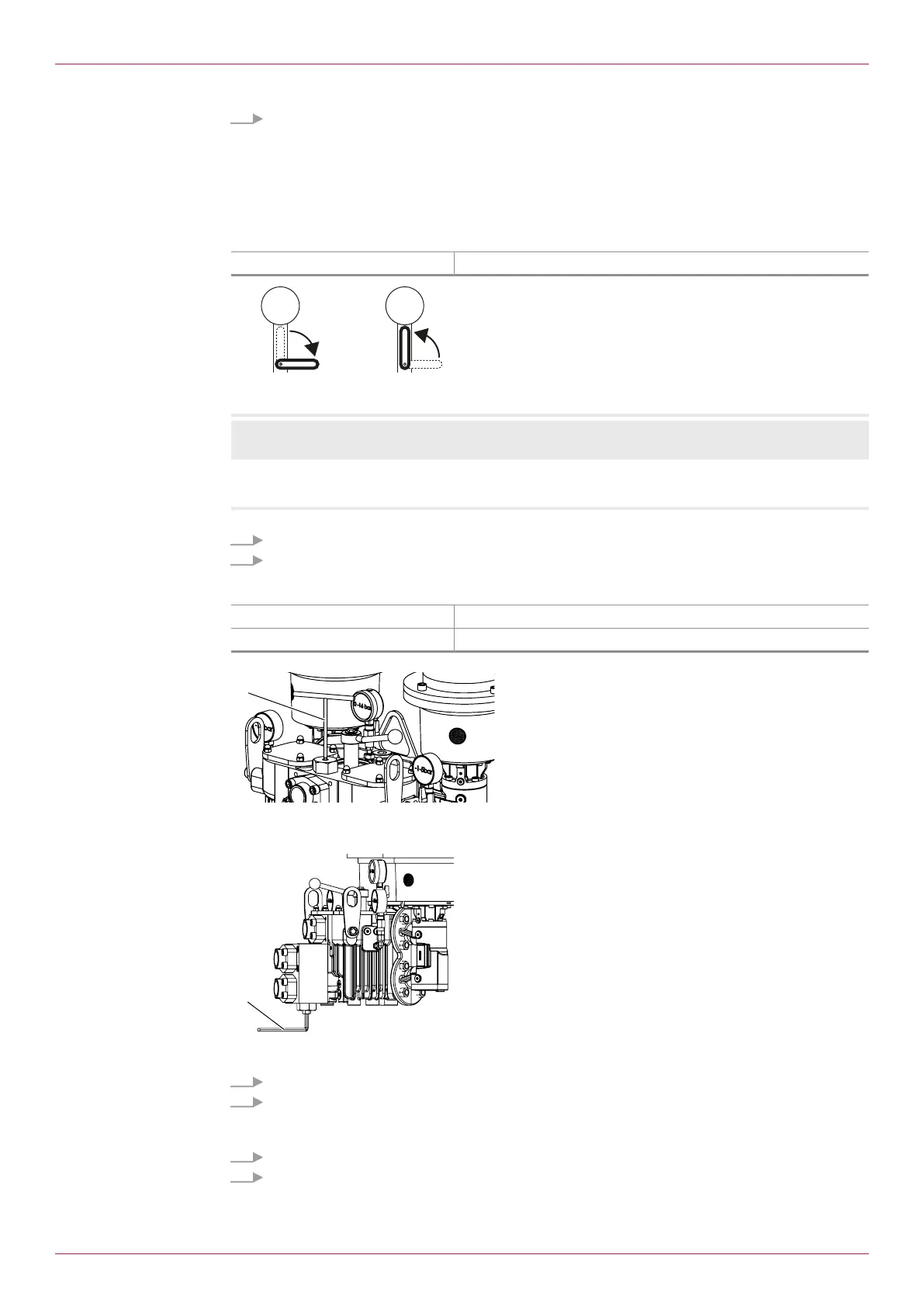

10.3.1 Checking the operating pressure
Personnel qualification: o Trained personnel
barbar
Fig.17: Manometerabsperrventil geschlossen/offen - Prinzipbild
ATTENTION
Leak in the pressure gauge through permanently opened pressure gauge shut-off valve.
► Close the pressure gauge shut-off valve immediately after completing reading.
1. Open the pressure gauge shut-off valve.
2. Read the operating pressure and close the pressure gauge shut-off valve.
10.3.2 Setting the pressure maintaining valve (optional)
Personnel qualification: o Trained personnel
Aids: o Hexagon key
1
Fig.18: Einstellung Druckhalteventil intern
1
Fig.19: Einstellung Druckhalteventil extern
1. Remove the screw plug of the pressure maintaining valve.
2. Use the Allen key1 to change the set pressure.
Turning clockwise: Increase the set pressure
Turning counter-clockwise: Decrease the set pressure
3. Tighten the screw plug of the pressure maintaining valve again.
4. Monitor the set pressure of the installed pressure gauge.
