4 Defining the 840Hxl Pattern Generator

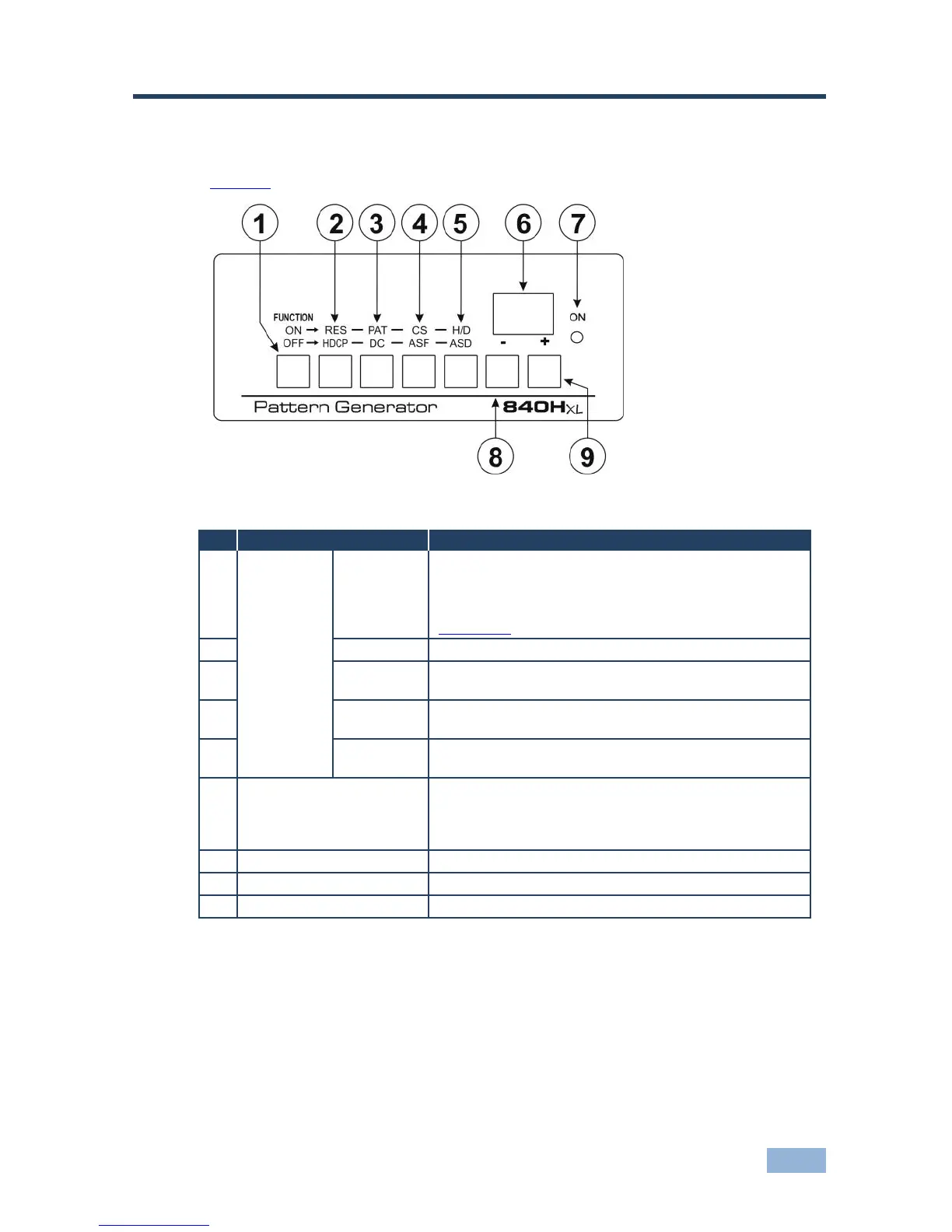

Figure 1 defines the front panel of the 840Hxl.
Figure 1: 840Hxl Pattern Generator Front Panel
#
Feature
Function
1
FUNCTION
Buttons
ON/OFF
Press to toggle on and off. Button LED lights when on.
When on, the top row of functions are enabled (RES,
PAT, CS and H/D). When off, the bottom row of
functions (HDCP, DC, ASF and ASD) are enabled (see
Section 6.1)
2
RES/HDCP
Press to select either the Resolution or HDCP functions
3
PAT/DC
Press to select either the Pattern or Color Depth
functions
4
CS/ASF
Press to select either the Color Space or Audio Sample
Frequency functions
5
H/D / ASD
Press to select either the HDCP/DVI or Audio Sample
Depth functions
6
2-digit 7-segment Display
Indicates the current setting. The display flashes if there
is a problem communicating with the display, for
example, if the display does not support HDCP or does
not support the selected resolution
7
ON LED
Lights red when the device receives power
8
– Button
Press to step down through the list of available values
9
+ Button
Press to step up through the list of available values
