5 Connecting the SID-X3N
Switch off the power to all devices before connecting them to your
SID-X3N. After connecting your SID-X3N connect the power to other
devices.

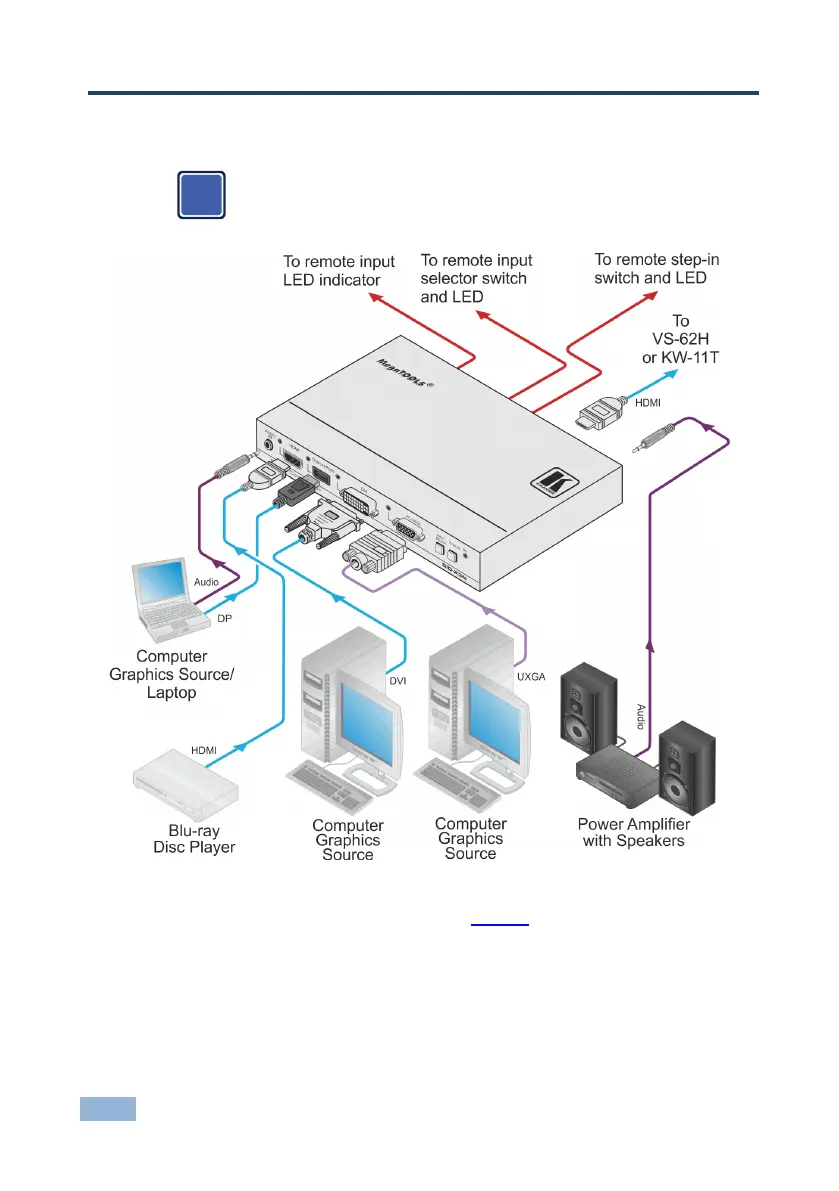

Figure 3: Connecting the SID-X3N Step-in Commander
To connect the SID-X3N as illustrated in Figure 3:
1. Connect up to four video sources, (for example, a Blu-ray disc player, a
laptop, and two computer graphics sources) to the video input connectors.
2. Connect the unbalanced stereo audio source, (for example, the audio output
of the laptop) to the AUDIO IN 3.5mm mini jack.
To Next Page
