VP-475UX – Defining VP-475UX 12G SDI to HDMI Scaler/Converter
4
Defining VP-475UX 12G SDI to
HDMI Scaler/Converter
This section defines VP-475UX.

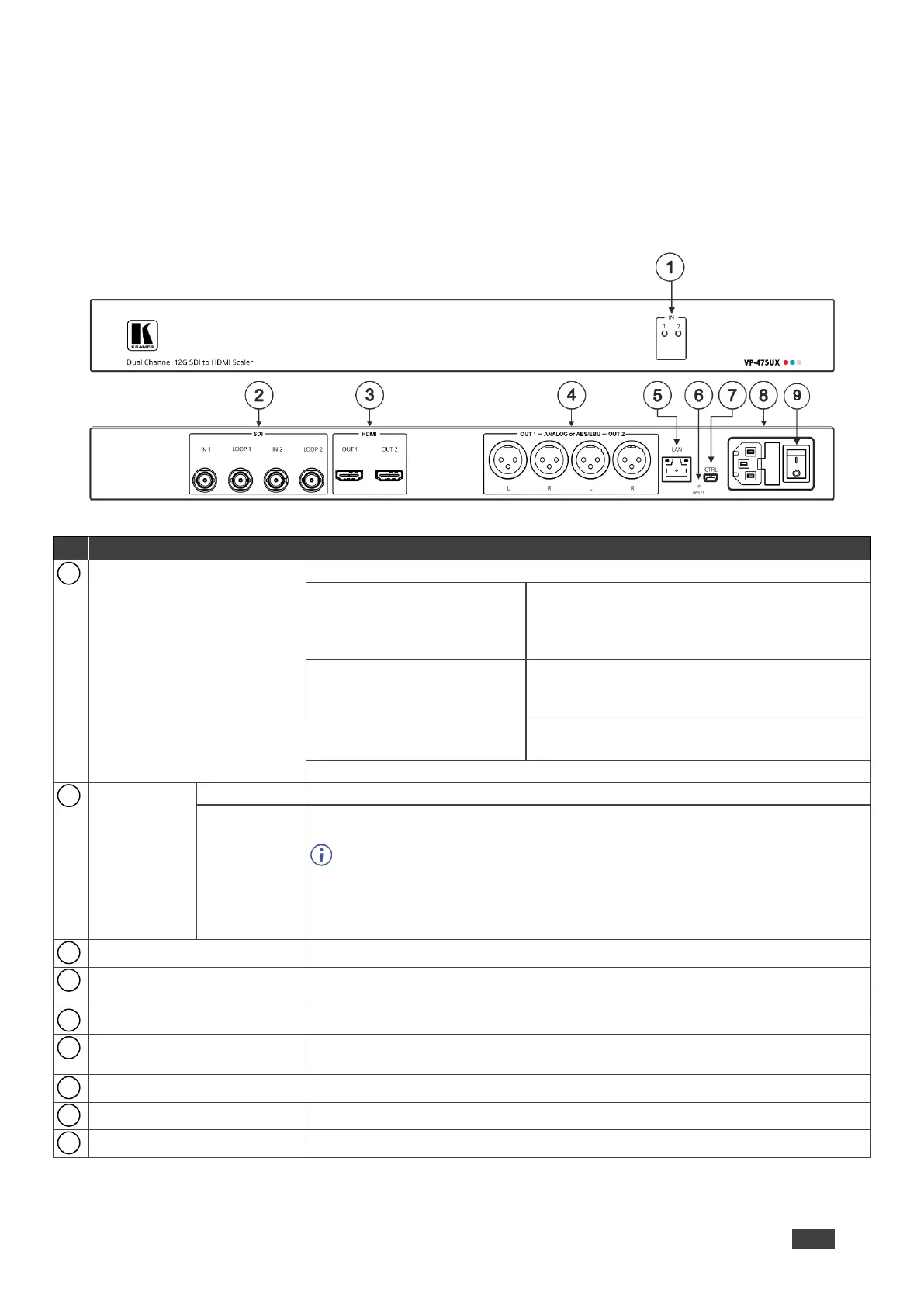

Figure 1: VP-475UX 12G SDI to HDMI Scaler/Converter
#
Feature
Function
IN LEDs
Illuminate to indicate the input resolutions (1 and 2):
Red – SDI input signal is SD:
NTSC – 480i or 480p Interlaced or progressive
video formats.
PAL – 576i or 576p Interlaced or progressive
video formats.
Yellow – SDI input signal is
HD:
1.5G – 720p progressive or 1080i interlaced
video format.
3G – 1080p progressive video format.
Blue – SDI input signal is
UHD:
6G – 2160p30 progressive video format.
12G – 2160p60 progressive video format
Off – no input signal.
SDI BNC
Connectors
IN
Connect to SDI sources (1 and 2).
LOOP
Connect to the IN connector of the next device in the daisy chain or connect to a
local display (1 and 2).
For best results, when an input is connected and it’s corresponding LOOP
is not used, connect a 75Ω terminator (supplied) to the unused LOOP
connector.
For example, if IN 1 is connected and LOOP 1 is not in use, connect a
terminator plug to LOOP 1.
HDMI OUT Connectors
Connect to HDMI acceptors (1 and 2).
ANALOG OR AES/EBU XLR
(L, R) Connectors
Connect to a balanced stereo audio acceptor or to a digital AES/EBU receiver
(OUT 1 and OUT 2).
LAN RJ-45 Connector
Connect to a browser device via LAN and also use for firmware upgrade.
RESET Button
Press for ≥10 seconds to reset to factory default values.
The device power cycles and loads the factory default values.
CTRL Mini USB Connector
Connect to a computer for device control and firmware upgrade.
Power Socket
AC connector enabling power supply to the VP-475UX.
Power Switch
Switch to turn the device ON and OFF.
