VP-475UX – Connecting VP-475UX
6
Connecting VP-475UX
Always switch off the power to each device before connecting it to your VP-475UX. After
connecting your VP-475UX, connect its power and then switch on the power to each device.

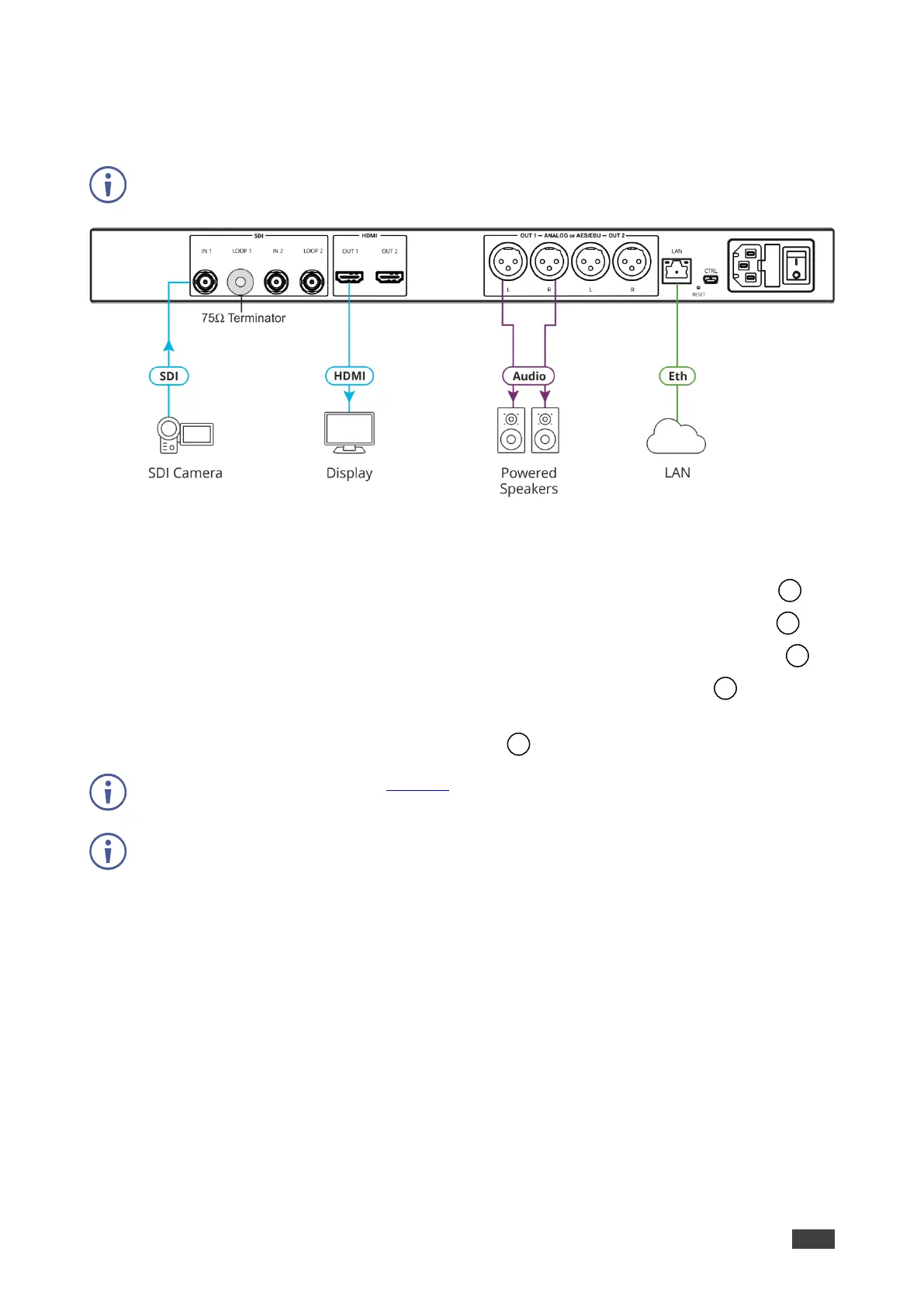

Figure 2: Connecting to the VP-475UX Rear Panel
To connect the VP-475UX as illustrated in the example in Figure 2:
1. Connect an SDI source (for example, an SDI camera) to the SDI BNC Connector .
2. Connect an HDMI acceptor (for example, a display) to the HDMI OUT Connector .
3. Connect powered speakers to the ANALOG OR AES/EBU XLR (L, R) Connectors .
4. Connect a Local Area Network (LAN) cable to the LAN RJ-45 Connector for
connection to your network.
5. Connect the power cord to the Power Socket and to the mains electricity.
The power cord is not shown in Figure 2.
You can daisy-chain the VP-475UX by looping the LOOP source to the next machine.
2
3
4
5
8
