Microphone Setup
The following are the microphone pinouts.
Condenser Microphone Pinout
Dynamic Microphone Pinout

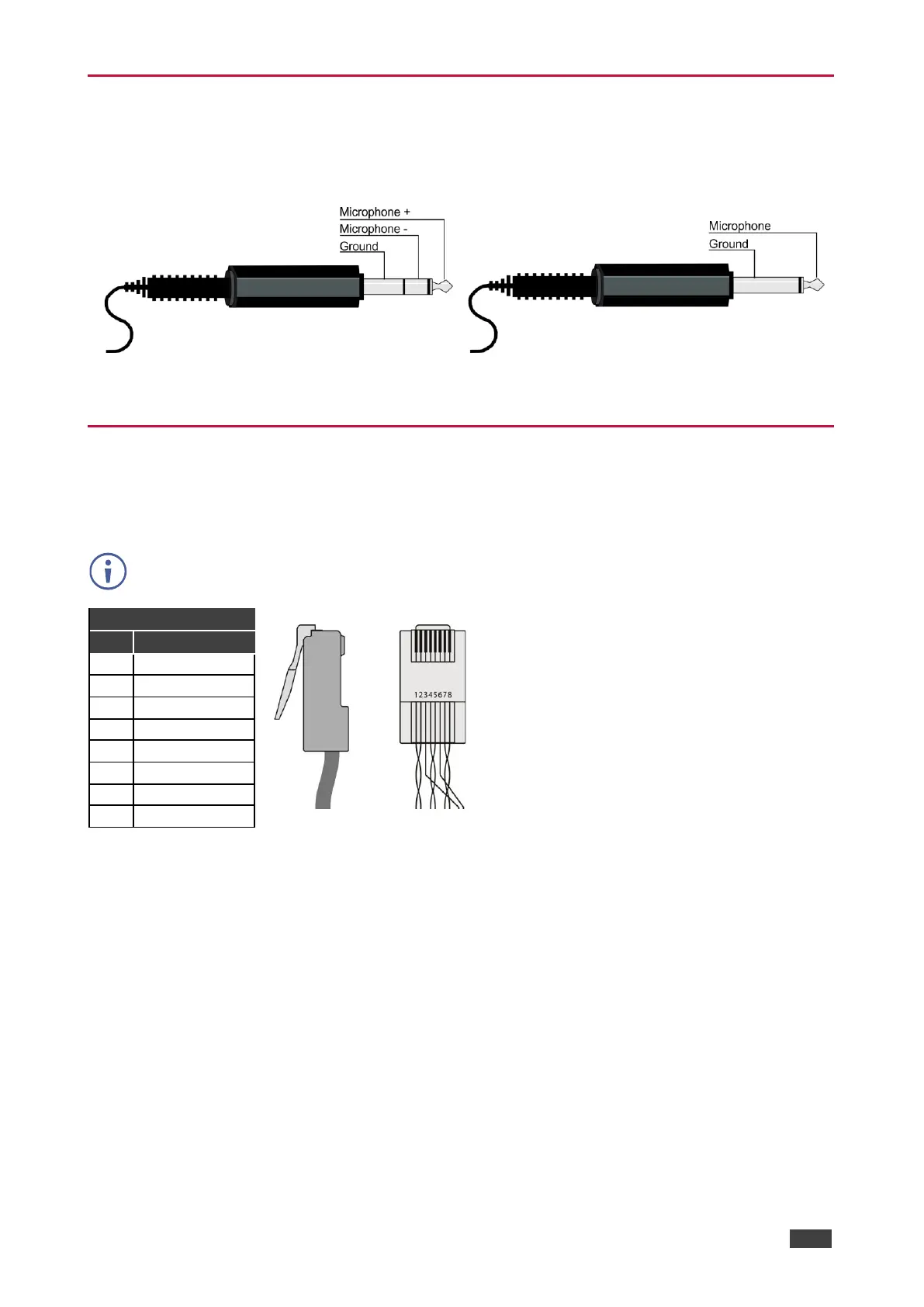

Figure 8: Condenser Mic Pinout
Figure 9: Dynamic Mic Pinout
Wiring the RJ-45 Connectors
This section defines the HDBaseT pinout, using a straight pin-to-pin cable with RJ-45
connectors.
For HDBT cables, it is recommended that the cable ground shielding be connected/soldered
to the connector shield.
EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
