VP-551X – Defining VP-551X 4K Presentation Matrix Switcher Scaler
4
Defining VP-551X 4K
Presentation Matrix Switcher
Scaler
This section defines VP-551X.

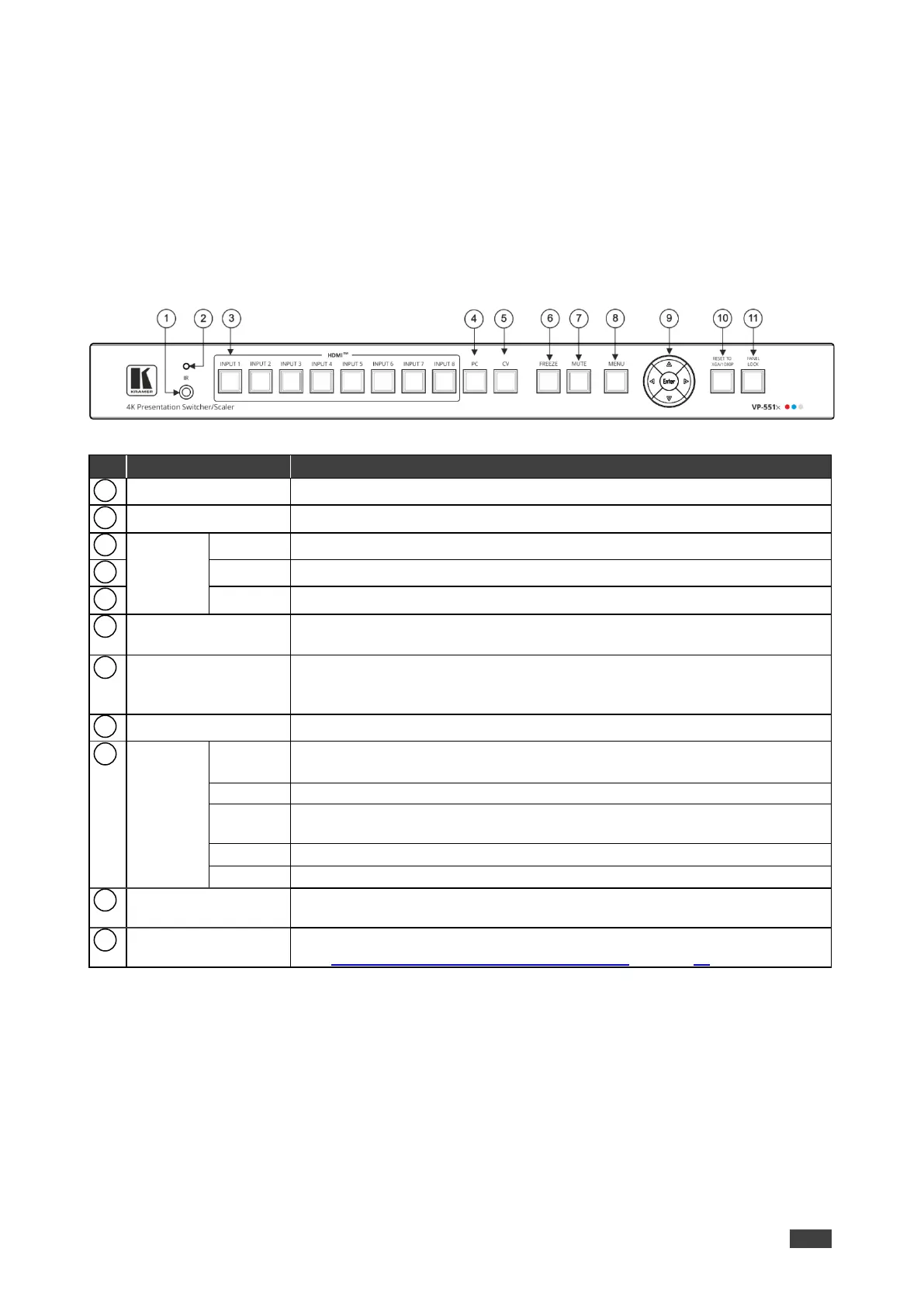

Figure 1: VP-551X 4K Presentation Matrix Switcher Scaler Front Panel
#
Feature
Function
IR Receiver
Receives signals from the remote-control transmitter.
IR LED
Lights when the unit accepts IR remote commands.
HDMI™
Press to select the HDMI input (from INPUT 1 to INPUT 8).
PC
Press to select the computer graphics input.
CV
Press to select the composite video input.
FREEZE Button
Press to freeze/unfreeze the output video image.
Not applicable when in video bypass mode.
MUTE Button
Press to toggle between muting (blocking out the sound) and enabling the
audio output (both line and speakers).
Muting the audio is not applicable when in audio bypass mode.
MENU Button
Press to enter/escape the on-screen display (OSD) menu.
Navigation
Buttons

Press to decrease numerical values or select from several definitions.
When not within the OSD menu mode, press to decrease the output volume.

Press to move up the menu list.

Press to increase numerical values or select from several definitions.
When not within the OSD menu mode, press to increase the output volume.

Press to move down the menu list.
ENTER
Press to accept changes and change the SETUP parameters.
RESET TO
XGA/1080p Button
Press and hold for about 5 seconds to toggle resetting the video resolution to
XGA or 1080p.
PANEL LOCK Button
Press and hold for about 3 seconds to lock/unlock the front panel buttons
(see Locking and Unlocking Front Panel Buttons on page 10).
1
2
3
4
5
6
7
8
9
10
11
