Kranzle Profi 160 TST - Wiring Diagrams; Wiring Diagram for 230 V Models

42

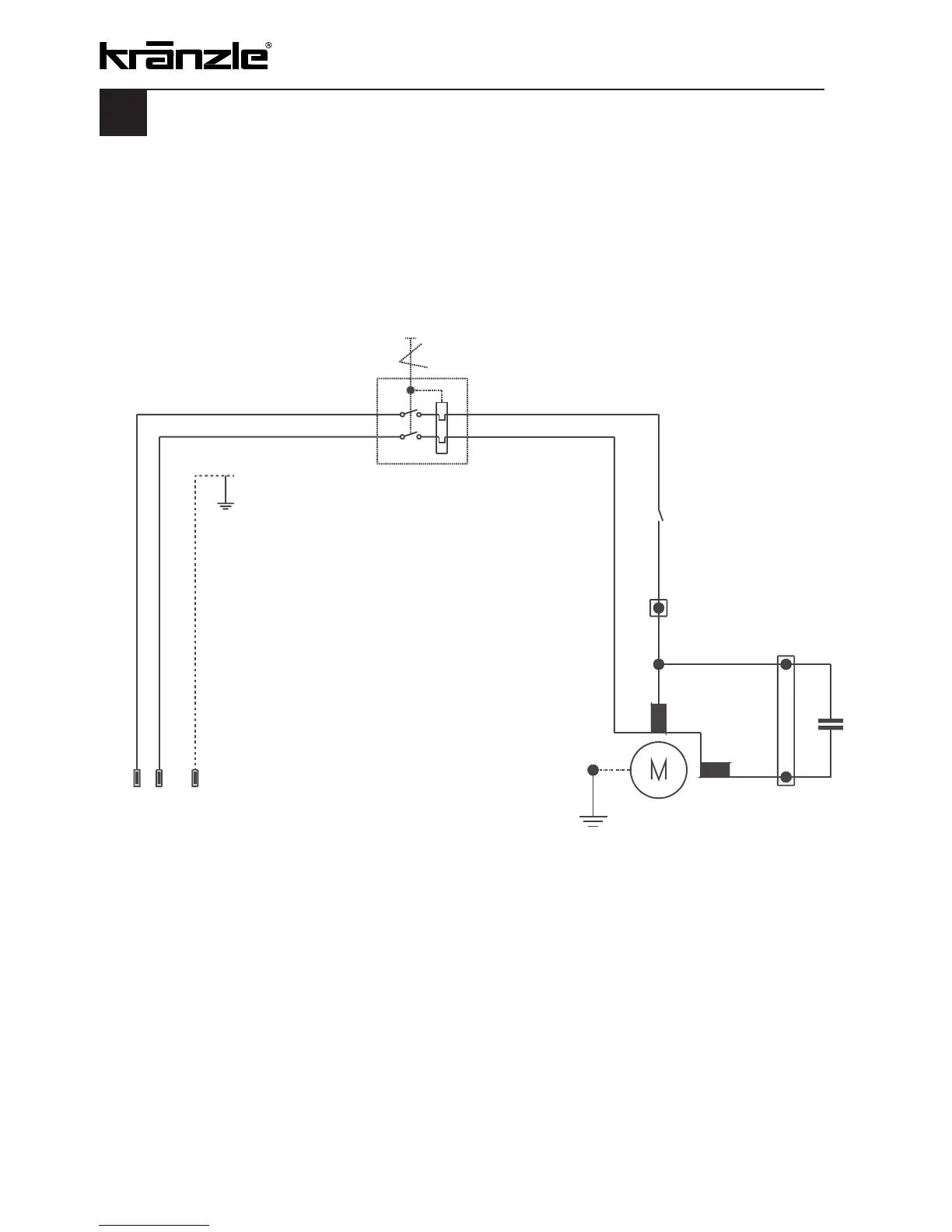

Wiring diagram Kränzle Profi 160 TS T,
Kränzle Profi 195 TS T,
230 V, 50 Hz
On-Off switch
with 14.5 Ampere
overload protection
Pressure switch
Pump motor
230 V / 50 Hz
Inlet line via3 x 1,5 mm
2
,
230 V / 50 Hz
