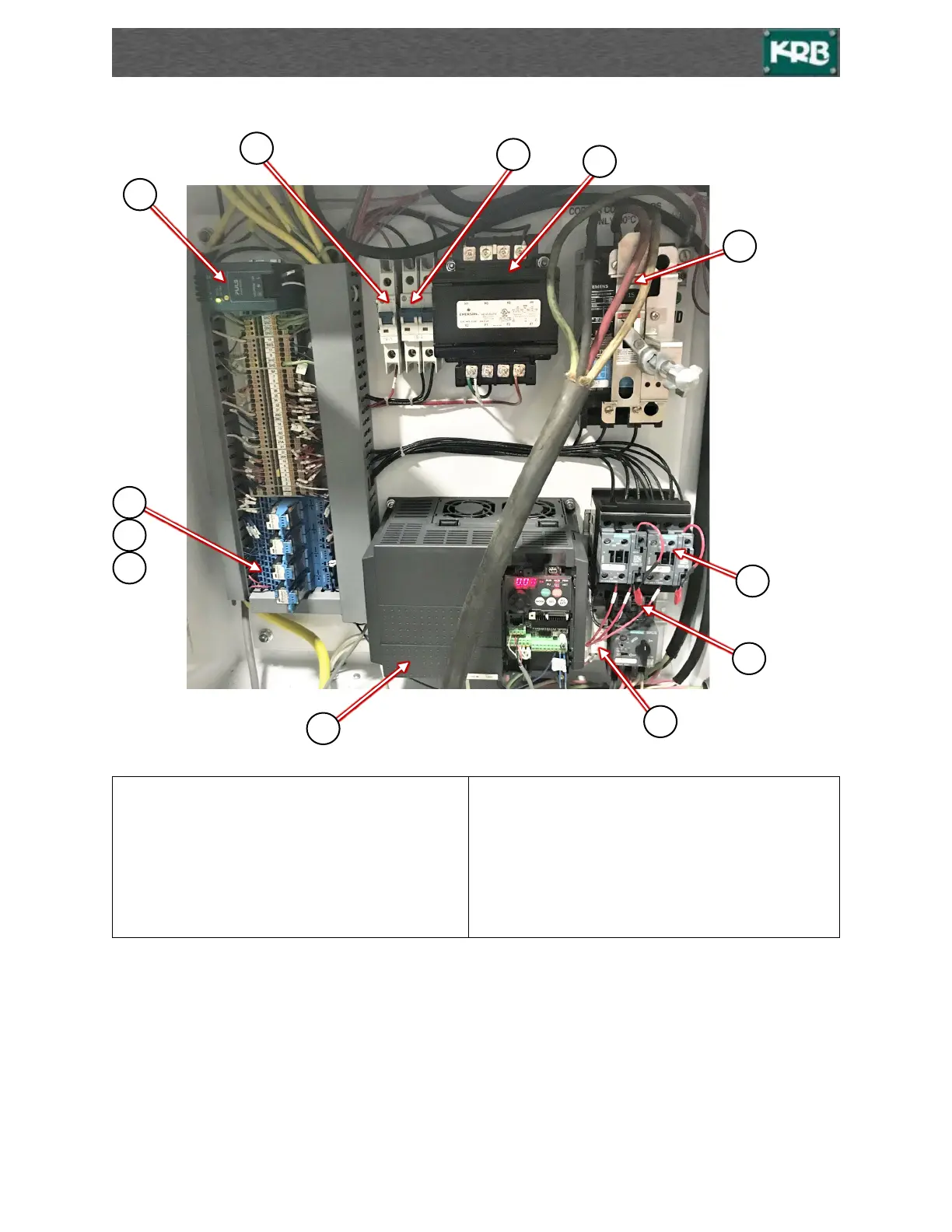

KRB 11 Radius Bender - Electrical Component Identification

#11 Radius Bender
www.krbmachinery.com
39
V1.12.09.21
I
(1)
P-3010-205
1-POLE, 2A CIRCUIT BREAKER
R
(3)
P-3014-003
RELAY SOCKET
J
(1)
P-3010-201
2-POLE, 2A CIRCUIT BREAKER
S
(3)
P-3014-003CL
RELAY SOCKET SPRING CLIP
K
(1)
P-3015-007
250 VA, 120V TRANSFORMER
T
(5)
P-3003-006
LIMIT SWITCH
L
(1)
P-3010-043
MAIN BREAKER
U
(1)
P-3016-068
FOOT PEDAL AND CABLE
M
(1)
P-3013-083
9A, REV. CONTACTOR
V
(1)
P-3003-023
PROXIMITY SENSOR
N
(1)
P-3001-031
MOTOR SURGE PROTECTOR
W
(1)
P-3002-015
ENCODER
O
(1)
P-3003-112
PHASE MONITOR
X
(1)
P-1001-670
24 VOLT POWER SUPPLY
P
(1)
P-1001-567
7.5HP, 12A VFD
Y
(1)
P-3002-041
ENCODER CONDITIONER
Q
(3)
P-3014-006
120VAC RELAY
Z
(1)
P-3003-070
REED SWITCH FOR CYLINDER
